MAINTENANCE AND SERVICING

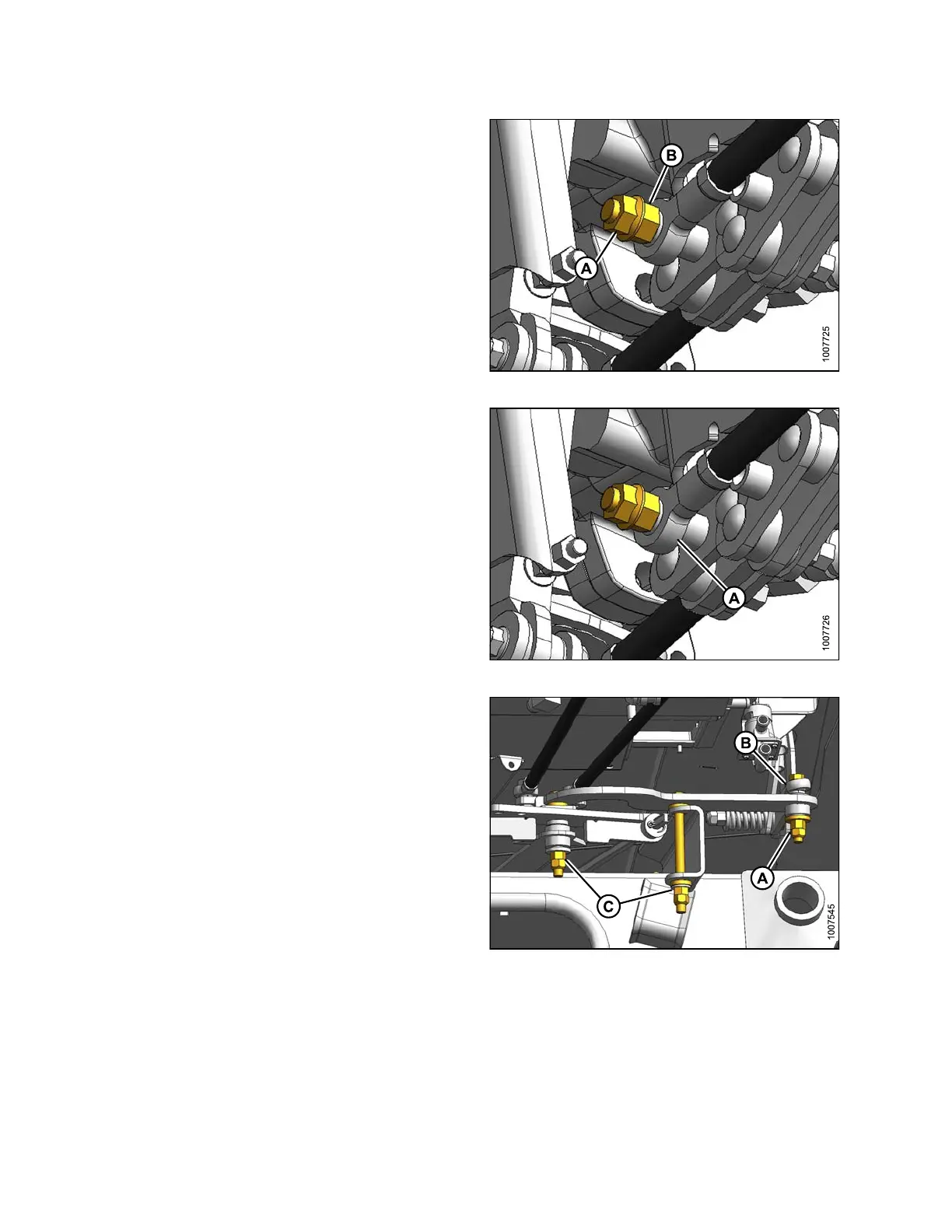

4. If steering rod bolts are loose:
a. Back off o ut er jam n ut (A).
b. Tighten inside nut (B) to 70–80 ft·lbf (95–108 N ·m).
c. Hold inside nut (B) and tighten jam nut (A) to
60–70 ft·lbf (81–95 N·m).
Figure 5.39: Steering Rod Bolts
5. If steering steering rod ball joints (A) are loose, they
should be replaced. See your MacDon Dealer.
Figure 5.40: Steering Rod Ball Joints
6. Check steer ing link bolts (A) for loosene ss, and ball
joint (B) for any perceptible play or movement.
Figure 5.41: Steering Link
169890 216 Revision A
