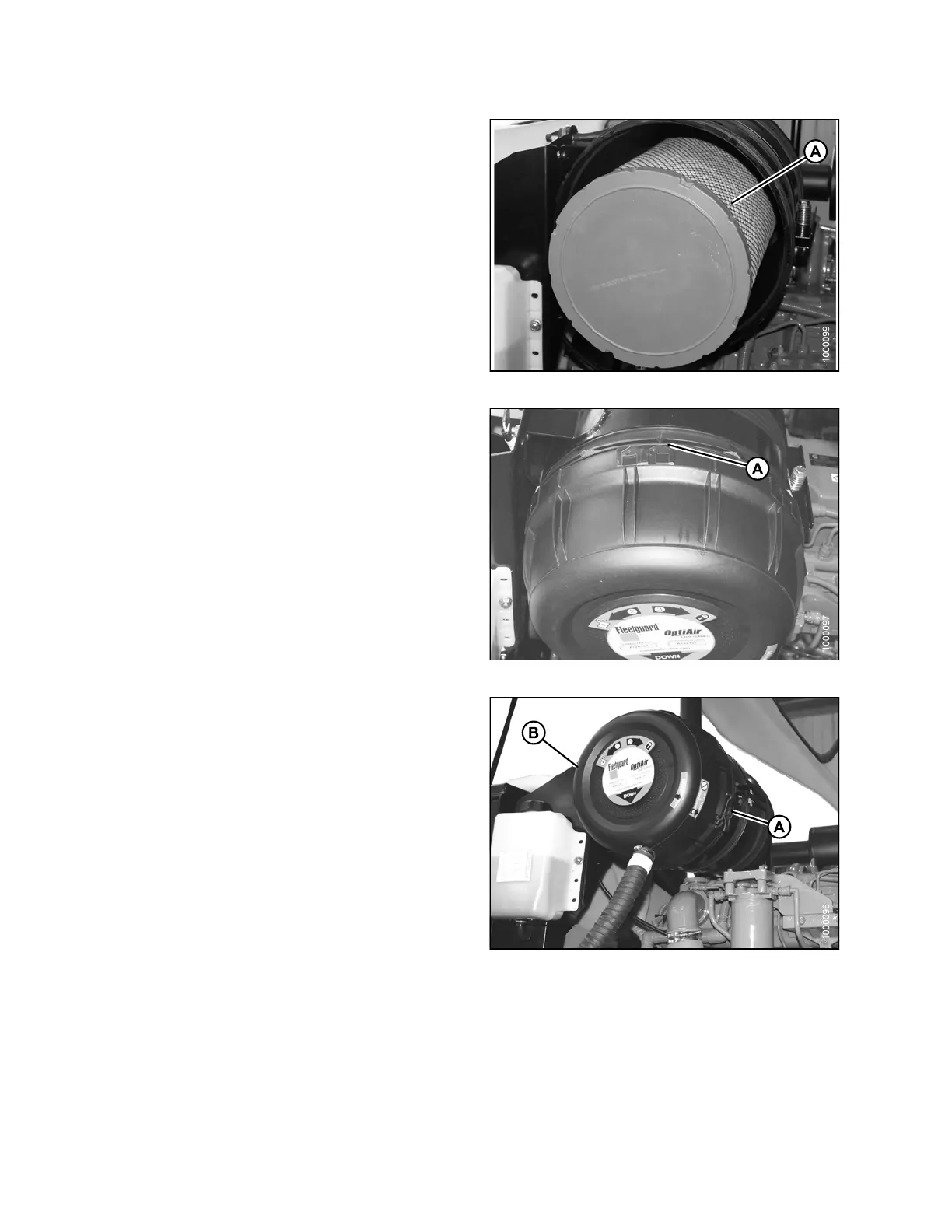

MAINTENANCE AND SERVICING
1. Insert new primary filter element (A) into canister over
secondary element, and push into place, ensuring that
element is firmly seat ed in canister.
Figure 5.72: Engine Air Cleaner
2. Align arrow (A) to UNLOCK position on end cap, and
push end cap fully onto housing.
3. Rotate end cap clockwise until catch (A) engages
housing to prevent end cap from turning.
Figure 5.73: Engine Air Cleaner
4. Position end cap (B) onto filter housing with aspira to r
pointing approximately down.
5. Secure end cap onto filter housing by closing latch (A).
Figure 5.74: Engine Air Cleaner
169890 234 Revision A
