MAINTENANCE AND SERVICING
5. Remove the radiator cap and op en radiator drain valve
(A) at the bottom of the engine side of the radiator
lower tank.
IMPORTANT:
Place a drain pan (about 8 U.S. gallons [30 liters]) under
the engine and radiator and use a deflectororhoseto
prevent coolant running onto frame.

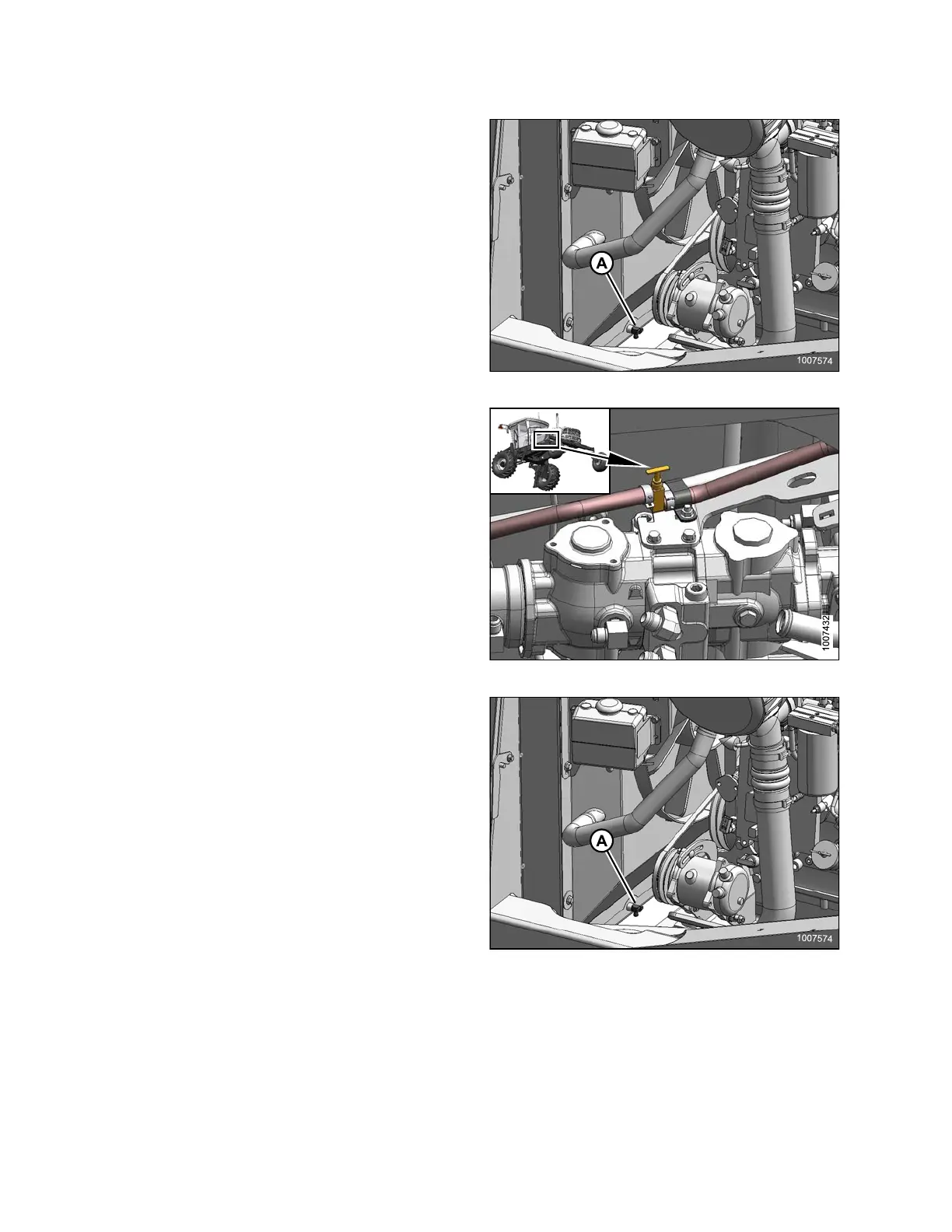

Figure 5.97: Engine Cooling System
6. Close the h
eater shut-off valve and disconnect hose on
heater sid
eofvalve.
7. Open valve
to drain the block.
8. When syst
em is drain ed, rea ttach hose on valve.
Figure 5.98: Engine Cooling System
9. Close r
adiator drain valve (A) at the bo tto m of the
engine
side of the radiator lower tank.
10. Fill sy
stem with clean water through the radiator and
replac
e radiator cap.
Figure 5.99: Engine Cooling System
169890 248 Revision A
