MAINTENANCE AND SERVICING
Inspecting and Replacing 125A Main Fuses
The 125A main fuse holders are located on the frame under the right cab-forward side platform beside the battery.
Access the 125A main fuses as follows:
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
1. Stop engine and remove key.
2. To check condition of fuse (A), pull tab (A) and open
cover (B).

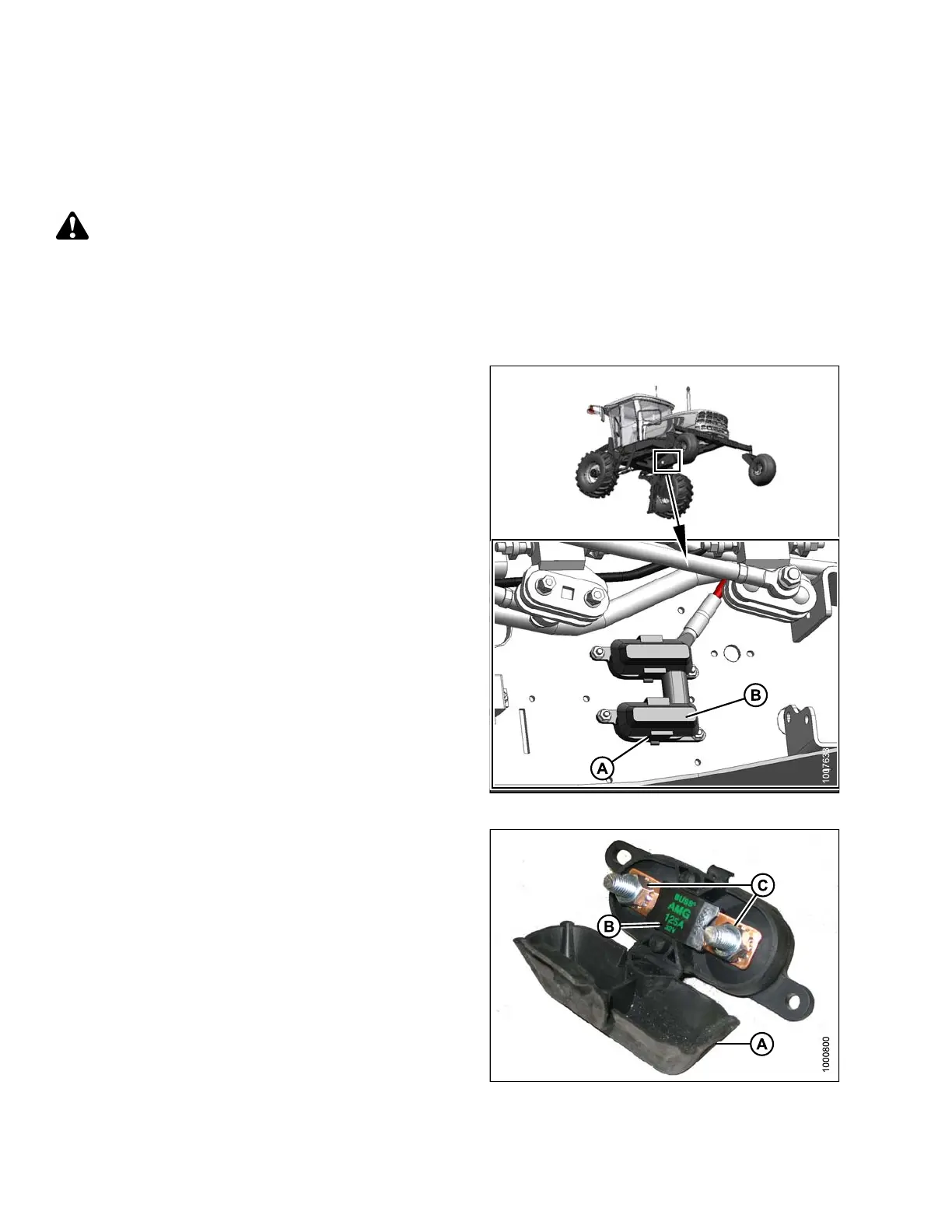

Figure 5.170: 125A Main Fuses
3. Visually examine fuse (B) for indications of melting.
4. Remove fuse (B), remove two nuts (C) and pull fuse
free from holder (existing wiring may need to be pulled
off the stud first).
5. Install new fuse on studs and any existing wiring that
was removed.
6. Secure with nuts (C).
Figure 5.171: 125A Main Fuse
169890 286 Revision A
