MAINTENANCE AN D SERVICING
Adjusting Header D rop Rate
The header should lower gradually when the lower header switch is pressed. From full height to ground should take
approximately 3–4 seconds.
If drop rate is too slow, return to cut height or tilt or fl oat presets may time out. This is to keep the hydraulics from
being pressurized.
DANGER
Stop engine and remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could engage an idling machine.
1. Lower header to ground, stop the engine, and remove
the key.
2. Move left cab-forward side platform rearward . Refer to
5.5.1 Opening Platform (Standard Position), page 205.
3. Loosen setscrew (B) on valve (A).
4. Turn cap (C)
• C lockwise to decrease the drop rate
• C ounterclockwise to increase the drop rate
5. Check drop rate and readjust as required.
6. Tighten setscrew (B).
NOTE:
To reset to factory specifications, fully close the nee dle
valve and open it four turns (counterclockwise).
7. Close the platform. Refer to 5.5.2 Closing Platform
(Standard Position), page 206.

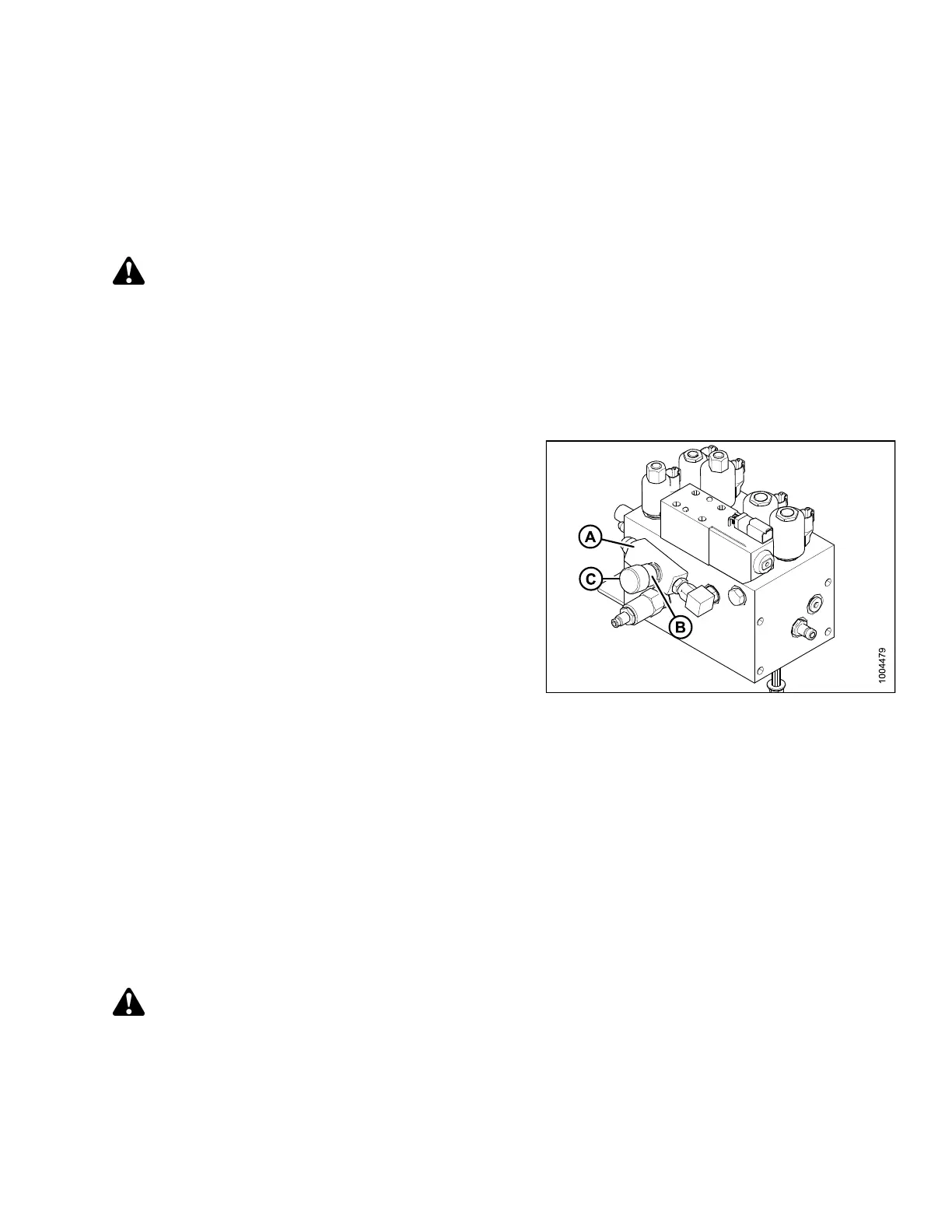

Figure 5.187: Hydraulic Valve Block
Adjusting Reel Drop Rate
The reel should lower gradually when the lower reel switch is pressed. From fully raised to fully lowered should
take approximately 3–4 seconds. Drop rate is a customer preference and will vary based on crop type and
cutting condition.
NOTE:
Drop speed should NOT be less than 3 to 4 seconds from all the way up to all the way down as structural
damage may result.
NOTE:
If drop rate is too s low, r eturn to cut height o r tilt or float presets may time o ut. This is t o keep the hydr aulics
from being pressurized.
DANGER
Stop engine a
nd remove key from ignition before leaving operator's seat for any reason. A child or even a
pet could eng
age an idling machine.
169890 295 Revision A
