Optek C4101 - Rear View Converter C4101

Description of the converter
- 10 -
optek-converter C4101 Version 07.2009_1.2US, 23.07.2009
www.optek.com
4.2 Rear view converter C4101

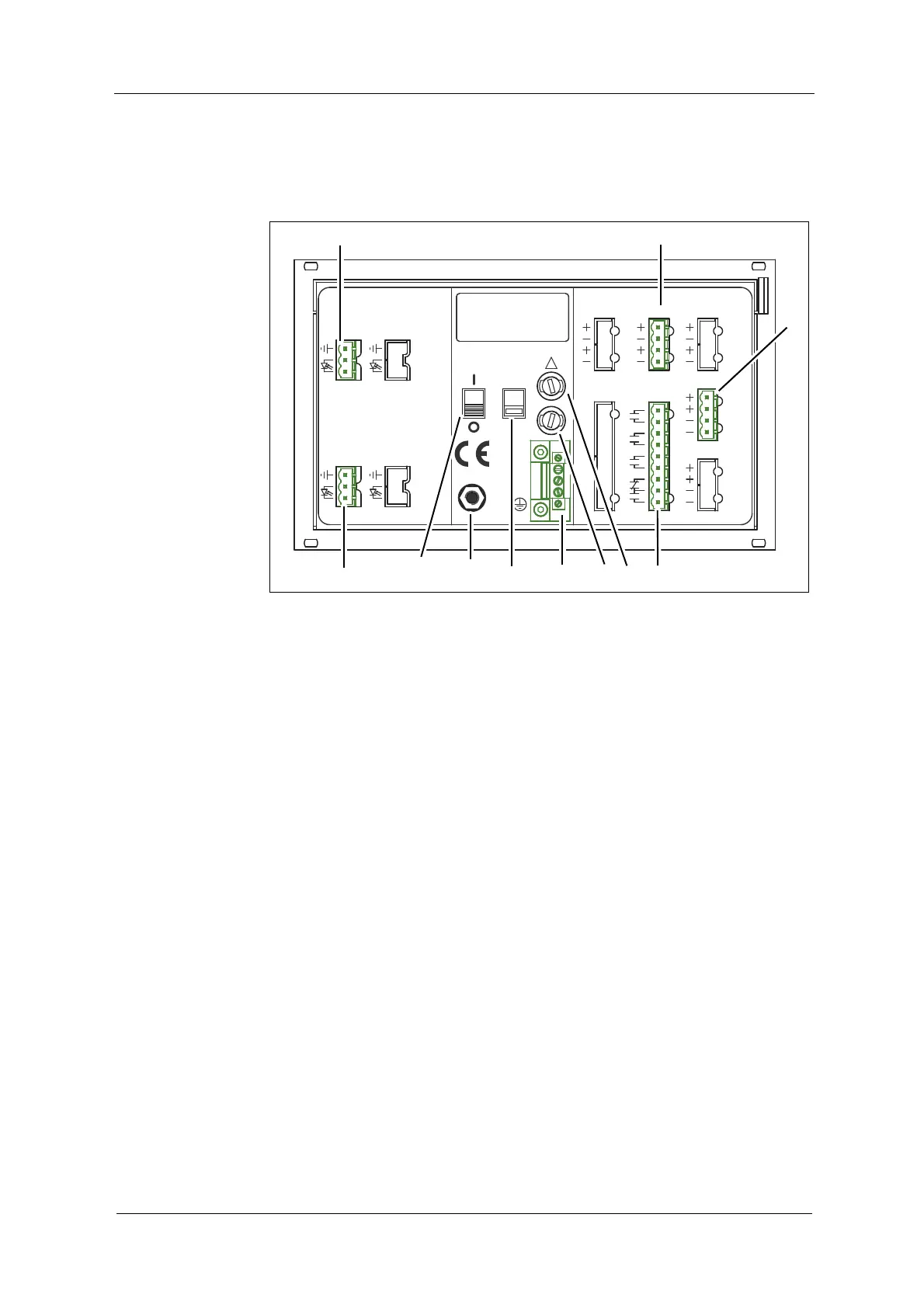

Fig. 3 Rear view converter C4101
Numbers stand for:
1. Detector input A (only for optek-sensors)
2. -
3. -
4. mA-output 1, mA-output 2 (0/4 - 20 mA)
5. -
6. Lamp output E (only for optek-sensors)
7. -
8. Relay outputs 1, 2, 3 for limit values or system status feedback,
system relay (enabled)
9. -
10. Fuse I 115 / 230 V AC T 1.6 A (option 24 V AC / DC: T 3.15 A)
11. Fuse II 115 / 230 V AC T 1.6 A (option 24 V AC / DC: T 3.15 A)
12. Power supply (fixed)
13. Selector switch for voltage (factory setting 230 V AC) -
(does not apply for a 24 V AC / DC version)
14. Potential equalization (in the non-ex-proof version, only necessary in
extreme EMC requirements)
15. ON / OFF switch
16. -
17. Detector input C (inactive)
212019
DETECTOR INPUTS
[C]
5
4
3
[D]
5
4
3
DETECTOR INPUTS
[A]
1
2
5
[B]
1
2
5
OPTEK - DANULAT
REMOTE IN
4 - 20 mA
PA
M6
N
PE
L
230V
R5
R6
R7
RR
R8
24 V DC
R1
R3
R4
R2
115 / 230 V, 50 / 60 Hz, 50 VA
115 / 230 V, T 1,6 A
!
IN 1, 2
MADE IN GERMANY
24 V AC / DC
35
36
37
39
38
31
33
34
32
14
15
16
18
17
10
12
13
11
6
6
7
7
LAMP [F]
6
6
7
7
acc. to
cable
length
V DC
acc. to
V DC
length
cable
0 / 4 - 20 mA
OUT 1, 2
RELAY OUT
21
22
24
23
40
41
43
42
44
45
47
46
LAMP [E]
OUT 3, 4
1
4
6
8
10111213
14
15
17
