7.5 Connecting the relay outputs
Danger!
Electrical voltage!
Switch the converter voltage-free before connecting!
Install electrical connections only by qualified electricians!
Tool • Screw driver

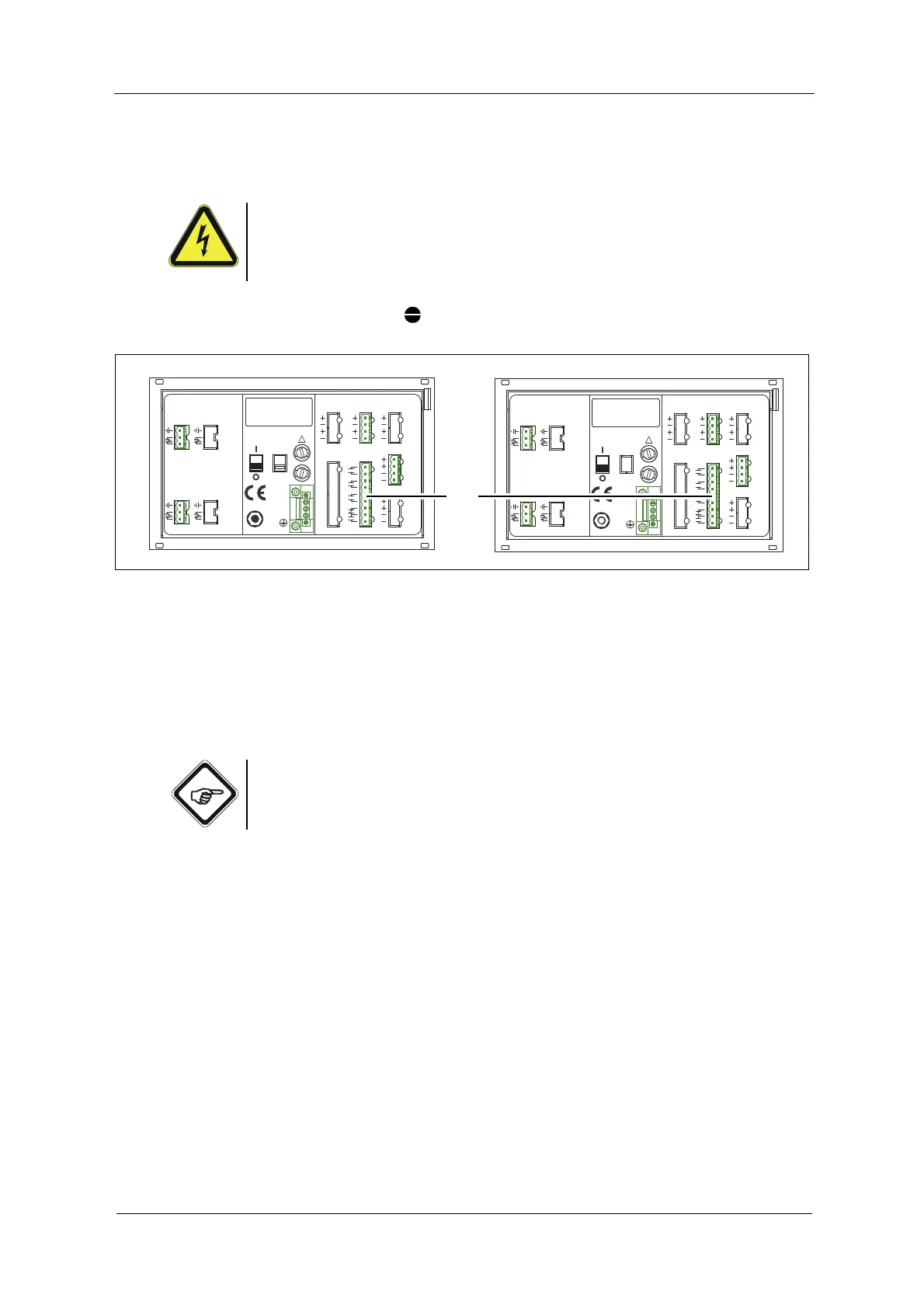

Fig. 19 Relay outputs
The converter is equipped with four relay outputs (8, fig. 19):
• Relay output 1 clamps 10 / 11
• Relay output 2 clamps 12 / 13
• Relay output 3 clamps 14 / 15
• Relay output 4 clamps 16 / 17 / 18 (active)
Note!
Observe the admissible relay output loads (see “Technical data”, chapter 5,
page 11).
You can adjust the function of the relay outputs 1, 2, 3 via the converter software.
The following settings are possible:
• Contacts normal OPEN or normal CLOSED
• Limit value relay or system status feedback
Relay output 4 is a system relay and cannot be configured. It is designed for
indicating system errors.
