Wiring
- 20 -
optek-converter C4101 Version 07.2009_1.2US, 23.07.2009
www.optek.com
7 Wiring
7.1 General advice on wiring
Danger!
Electrical voltage!
Before connecting, switch the converter power switch (15) to O (OFF) position!
Install electrical connections only by qualified electricians!

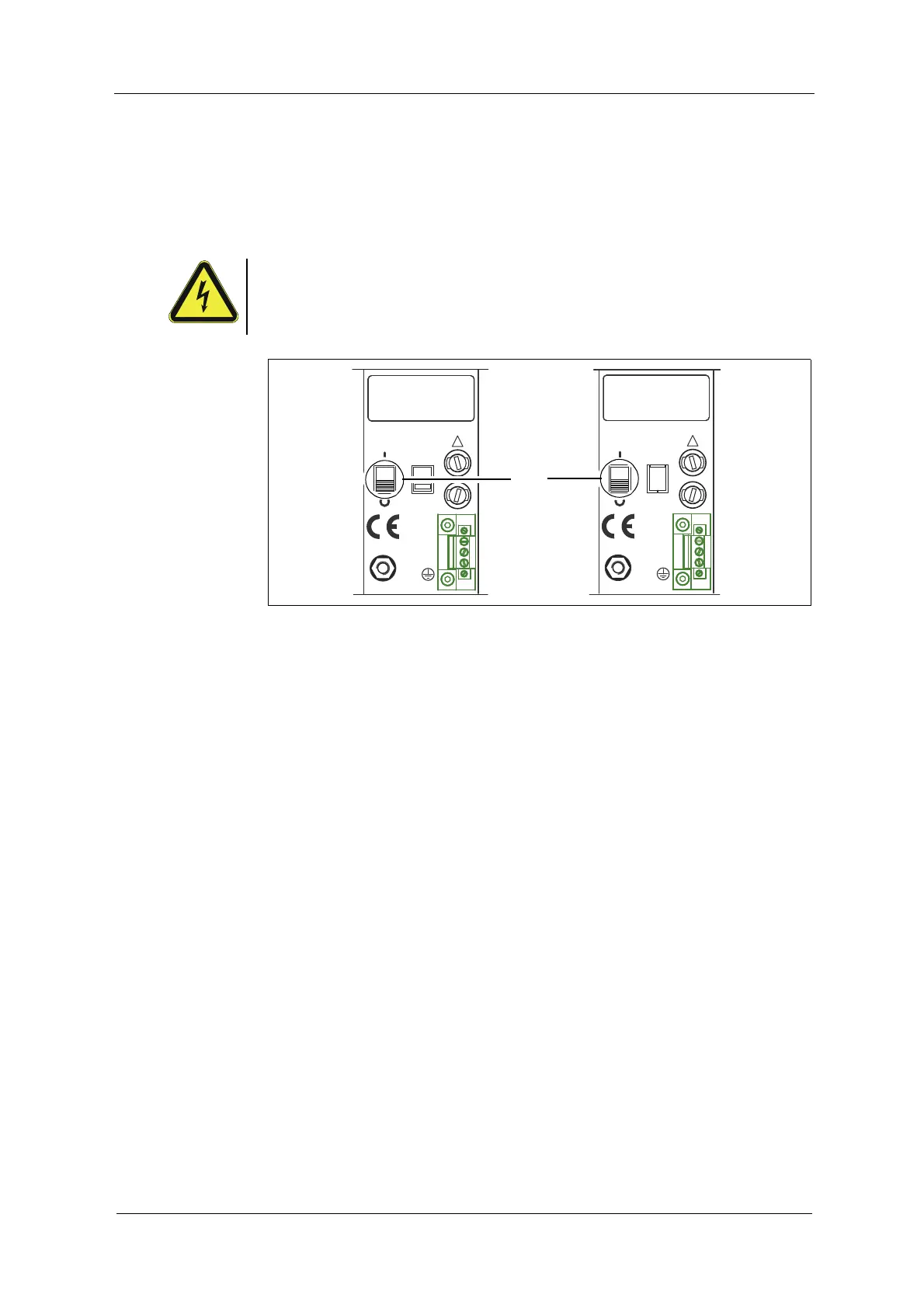

Fig. 12 Power switch on converter 115 / 230 V (left) 24 V (right)
• The power switch is only protected against accidental touching. That is
why the converter has to be installed in a control cabinet (refer to chapter
"Installation of the converter").
• The power supply socket is not provided with a first-to-mate last-to-break
protective ground contact. You must therefore provide an external release
device.
• The converter is designed for continuous operation and has only to be
switched voltage-free for maintenance purposes.
2119 20
M6
PA
PE
L
N
24 V, DC / 50 / 60 Hz, 50 VA
24 V, T 3,15 A
!
20 2119
PA
M6
N
PE
L
115 / 230 V, 50 / 60 Hz, 50 VA
115 / 230 V, T 1,6 A
230V
!
15
