Optek C4101 - Additional Housing S19-42 - Stainless Steel 1.4301; SS304 - IP65 (Option)

Technical data
- 17 -
optek-converter C4101 Version 07.2009_1.2US, 23.07.2009
www.optek.com
5.2.3 Additional housing S19-42 - stainless steel 1.4301 / SS304 - IP65 (option)

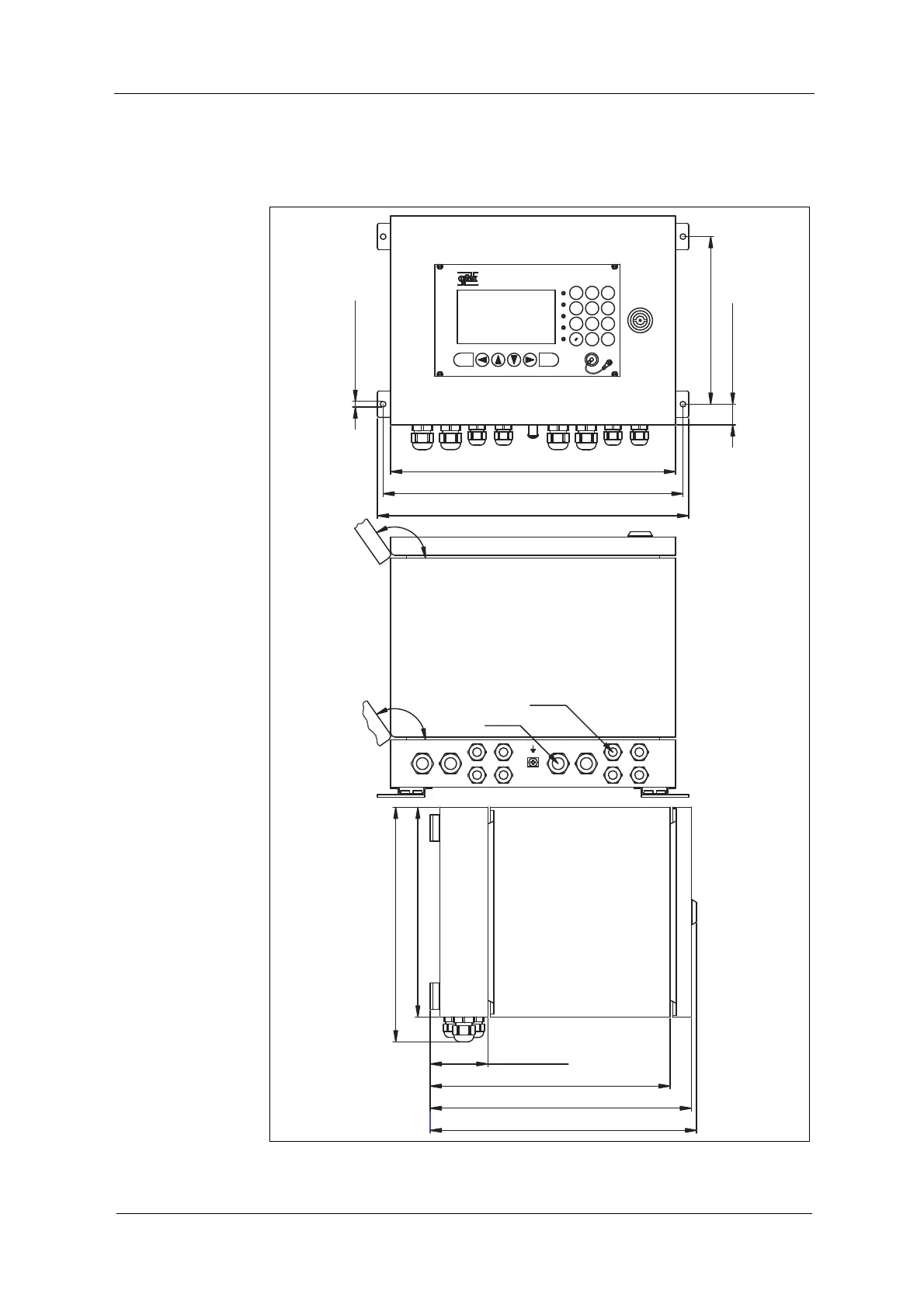

Fig. 7 Dimensions converter with additional housing S19-42 -
stainless steel 1.4301 / SS304 - IP65
CLEAR
ENTER
5
6
4
8
9
7
+/-
0
CONTROL 4000
2
3
1
190mm [7.48"]
323mm [12.72"]
340mm [13.39"]
353mm [13.9"]
23.5mm [0.93"]
Ø6.4mm [0.25"]
125°
125°
4x M20
8x M16
237mm [9.33"]
265mm [10.43"]
65mm [2.56"]
271mm [10.67"]
301mm [11.85"]
295mm [11.61"]
