Checking RAID Volume Status in PASM
To view RAID Volume status:
1. Start PASM.
See “PASM in your Browser” on page 193.
Or see “PASM in SmartNAVI” on page 194.
Or see “PASM in Bonjour” on page 196.
2. Click the Administration topic and choose the RAID & File System icon to
expand the Tree.
3. In the Tree, click the RAID Management icon.
The status is displayed in the RAID Status tab.

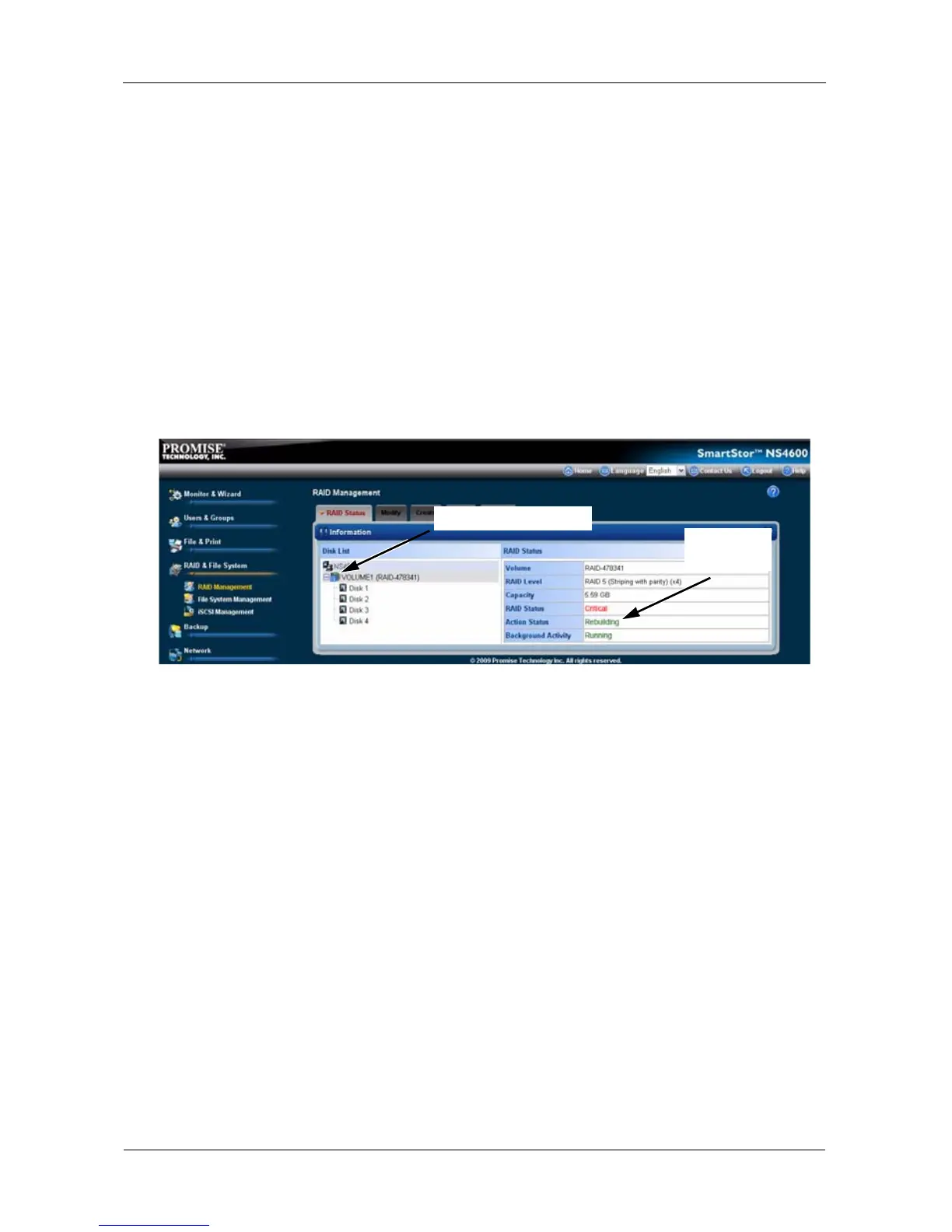

Figure 2. PASM reports a Critical RAID Volume
SmartStor Responds to a Critical RAID Volume
How the SmartStor responds to a Critical RAID Volume depends on the RAID
level of your Volume and whether you have a spare drive available:
• For a RAID 1 Volume or a three-drive RAID 5 Volume, if a spare drive is
available, the RAID Volume begins rebuilding itself automatically.
• For RAID 1, 5, and 10 Volumes, when no spare drive is available, you must
replace the failed disk drive. The RAID Volume will begin rebuilding itself
when you install the new disk drive. See “Replacing a Failed Disk Drive” on
page 307.
• RAID 0 Volumes go offline after a disk drive failure. A RAID 0 Volume cannot
be rebuilt. All data on the Volume is lost.
Additional Details about Rebuilds
• The Rebuild takes several minutes, depending on the size of your disk
drives.
• During a rebuild, you can access your folders on the SmartStor.
RAID Critical icon
Rebuild in
progress
