Promise Technology Smartstor NS4600 User Manual

SmartStor NS4600 Product Manual
176

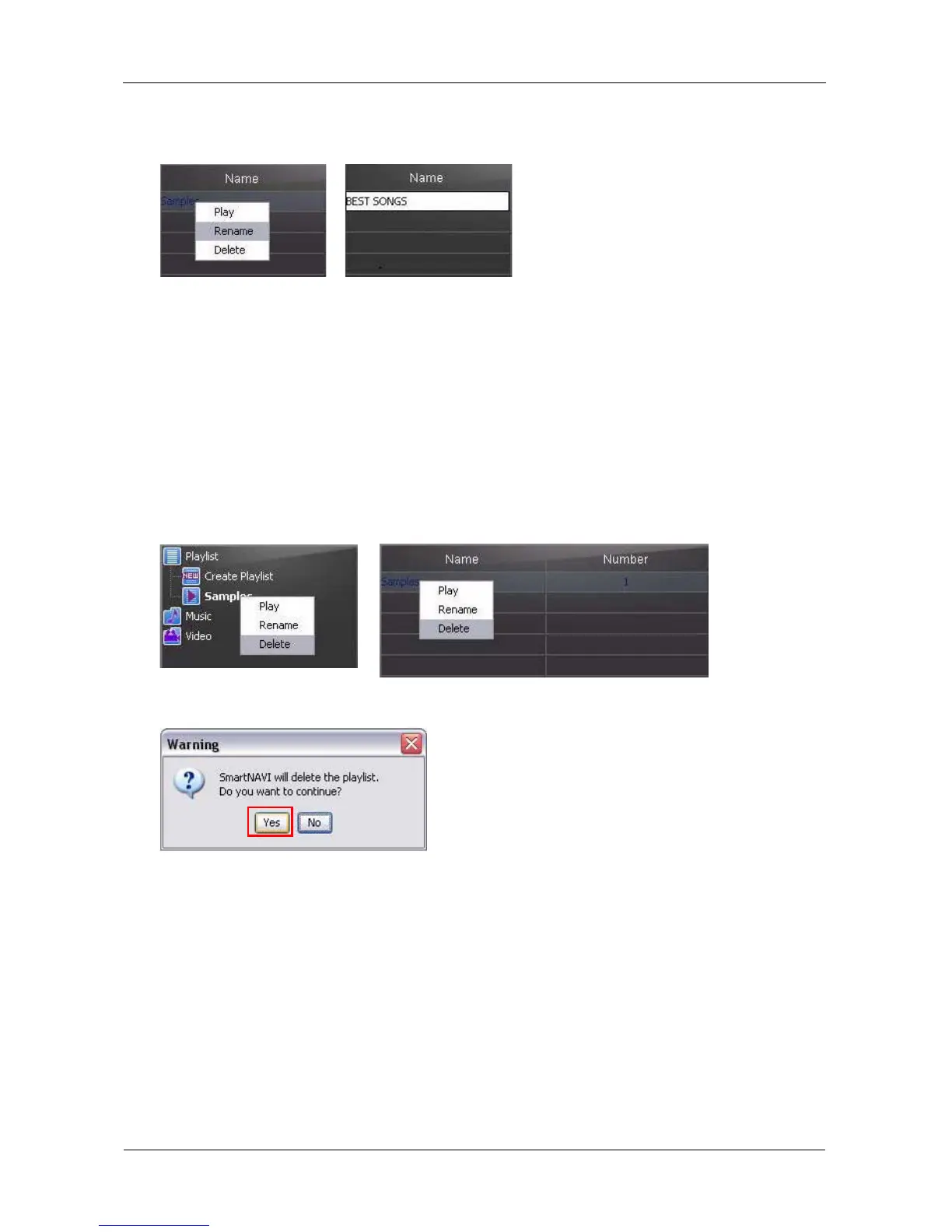

5. Right-click the playlist in the Window you want to rename and choose
Rename from the dropdown menu.
Deleting a Playlist
This function requires a LAN connection to the NAS system.
To delete a Playlist:
1. Go to the Main Window.
2. Click the Media Center icon.
The Media Library window appears with List highlighted.
3. Right-click the playlist in the List Tree or the List Window you want to delete
and choose Delete from the dropdown menu.
4. Click the Yes button in the confirmation box.
The playlist is deleted.
Playing a Single Music or Video File
To play a single music or video file:
1. Go to the Main Window.
2. Click the Media Center icon.
The Media Library window appears with List highlighted.
3. Click the Music or Video folder icon.

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
