Promise Technology Smartstor NS4600 User Manual

Appendix A: Maintenance
341
2. Unplug the power cord.
3. Turn the SmartStor enclosure upside down.
4. Press the two latches on the underside of the enclosure, release and remove
the cover.
5. Press the power supply retainer back, slide the power supply forward and lift
the power supply out of its cradle.
6. Unplug the motherboard power connector.
Installing the Power Supply
To install the new power supply:
1. Plug in the motherboard power connector.
2. Lay the power supply into its cradle and slide it back into position.
Be sure the pads on the power supply are downward and the retainer is
holding the power supply in place.
3. Lay the cover in position and press it down until the two latches snap shut.
4. Turn the SmartStor over and set it on its feet.

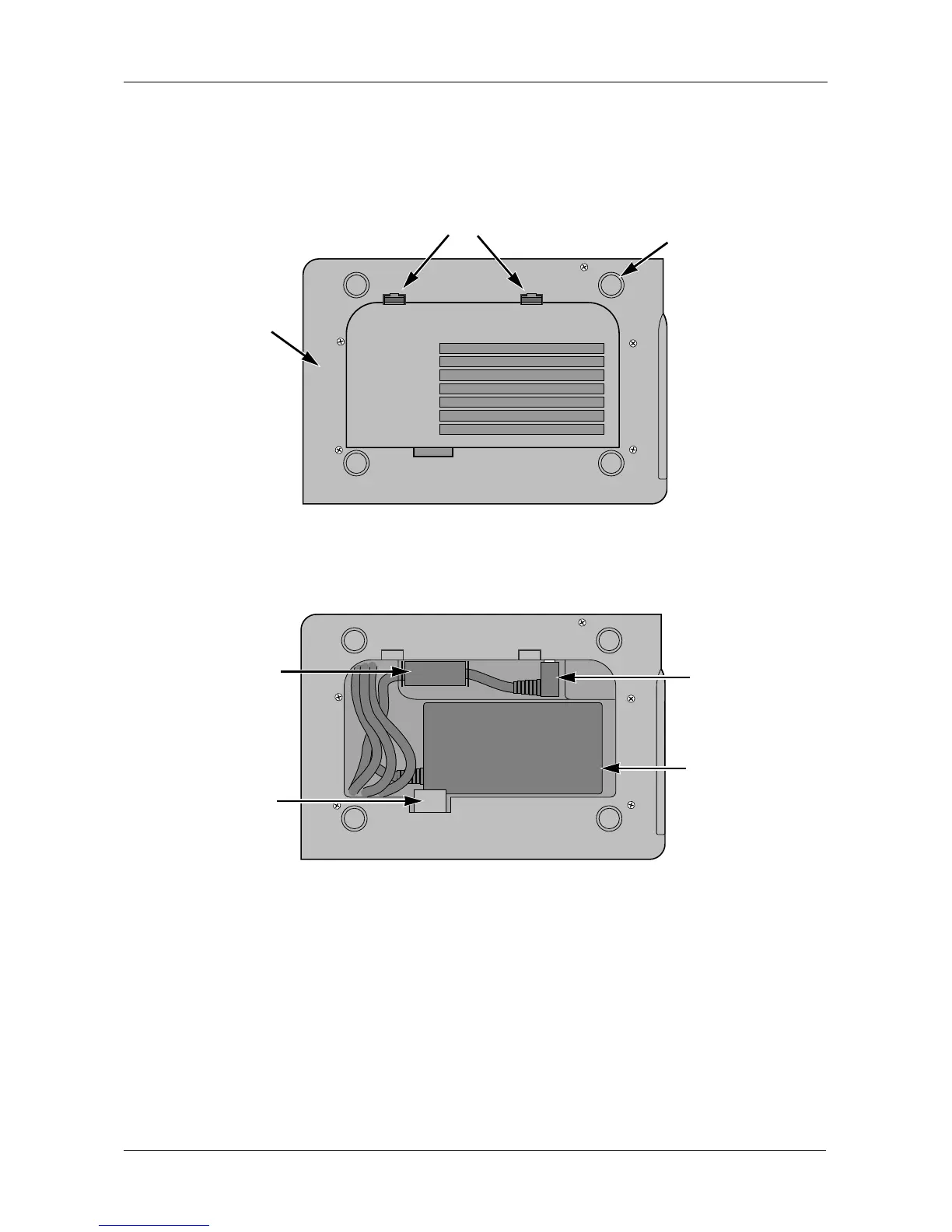

Latches
Feet (4)
Bottom of
enclosure
EMI core
Power Supply
Retainer
Motherboard
power
connector
Power Supply

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
