Chapter 3: Connecting to the SmartStor
39
You can now copy files to and from the folder on the SmartStor.
When you are done with the SmartStor, type cd; umount /SmartStor and
press Enter.
On the Linux PC with Graphic Desktop
This procedure is for a RedHat Enterprise Linux 4 configuration. If you run a
different version of Linux, you might have to adapt the procedure. See your OS
documentation.
1. From the Applications menu, choose Network Servers.

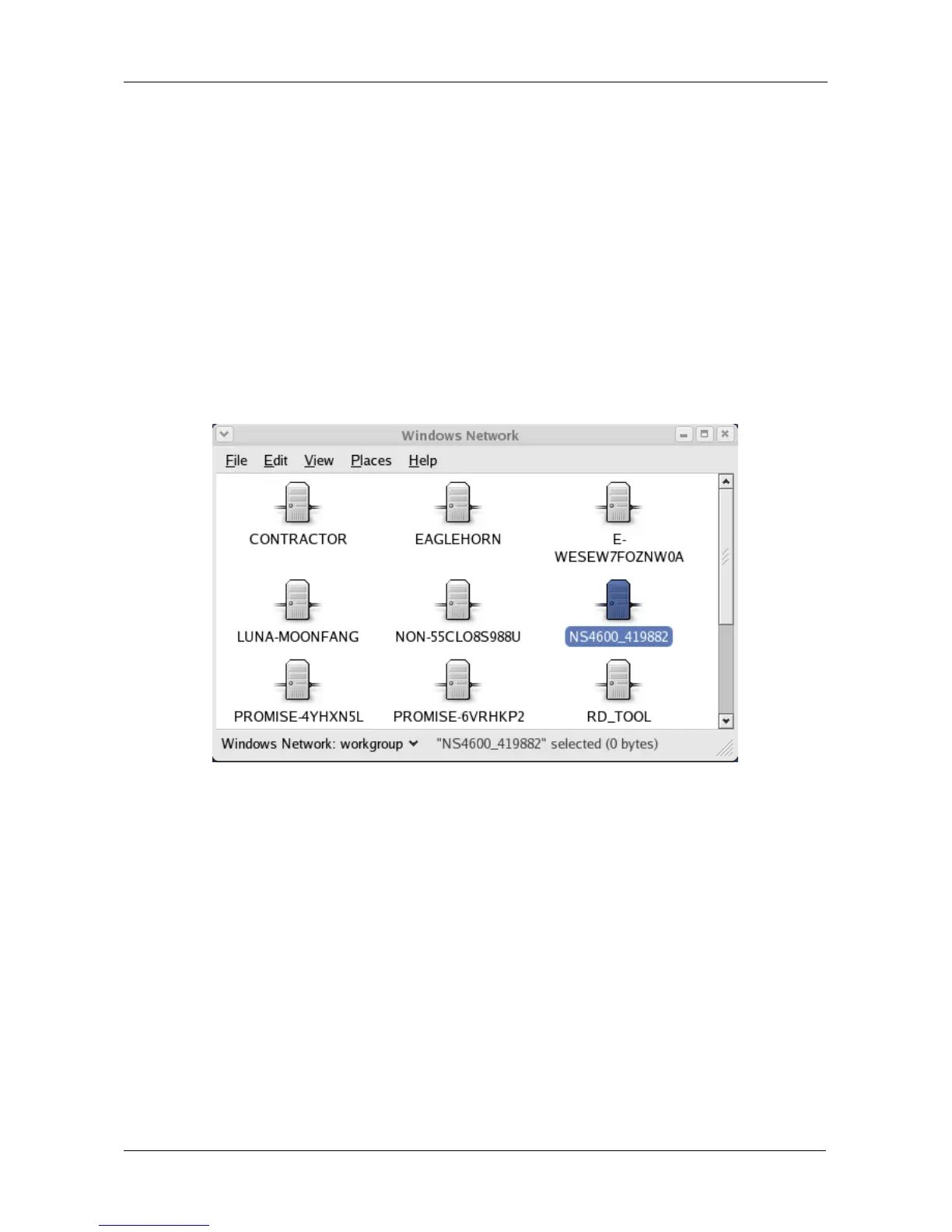

2. In the Network window, double-click Windows Network.
3. Double-click the SmartStor (NS4600) on the network.
4. Double-click the folder you want.

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
