SmartStor NS4600 Product Manual
148

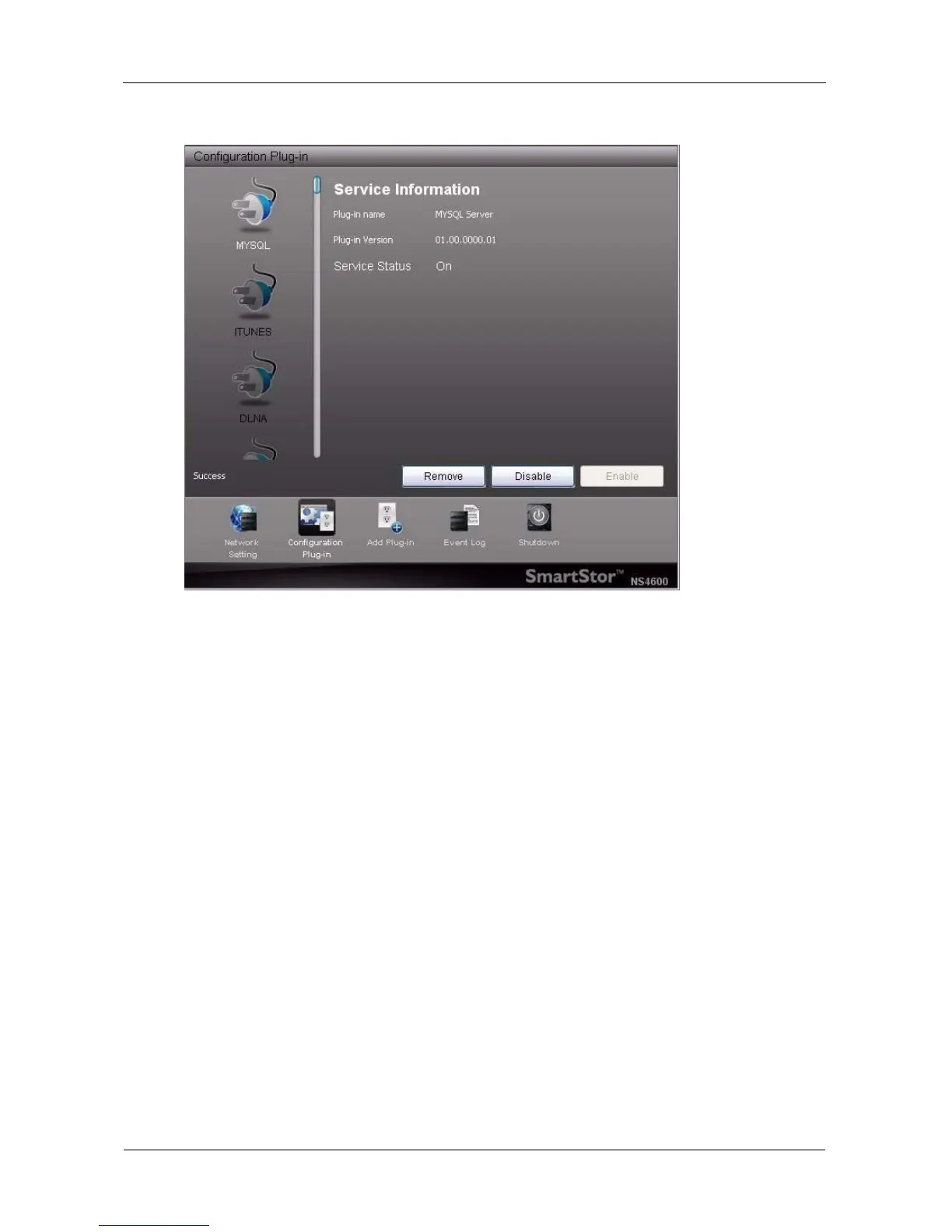

The plug-in is now installed SmartS
tor
.
V
iewing a List of Plug-ins
T
o view a list of installed pl
ug-ins:
1.
Go to
the
Main Wi
ndow
.
2.
Click the
NAS Manageme
nt
icon.
3.
Click the
Configuration Plu
gin
button.
