SmartStor NS4600 Product Manual
38

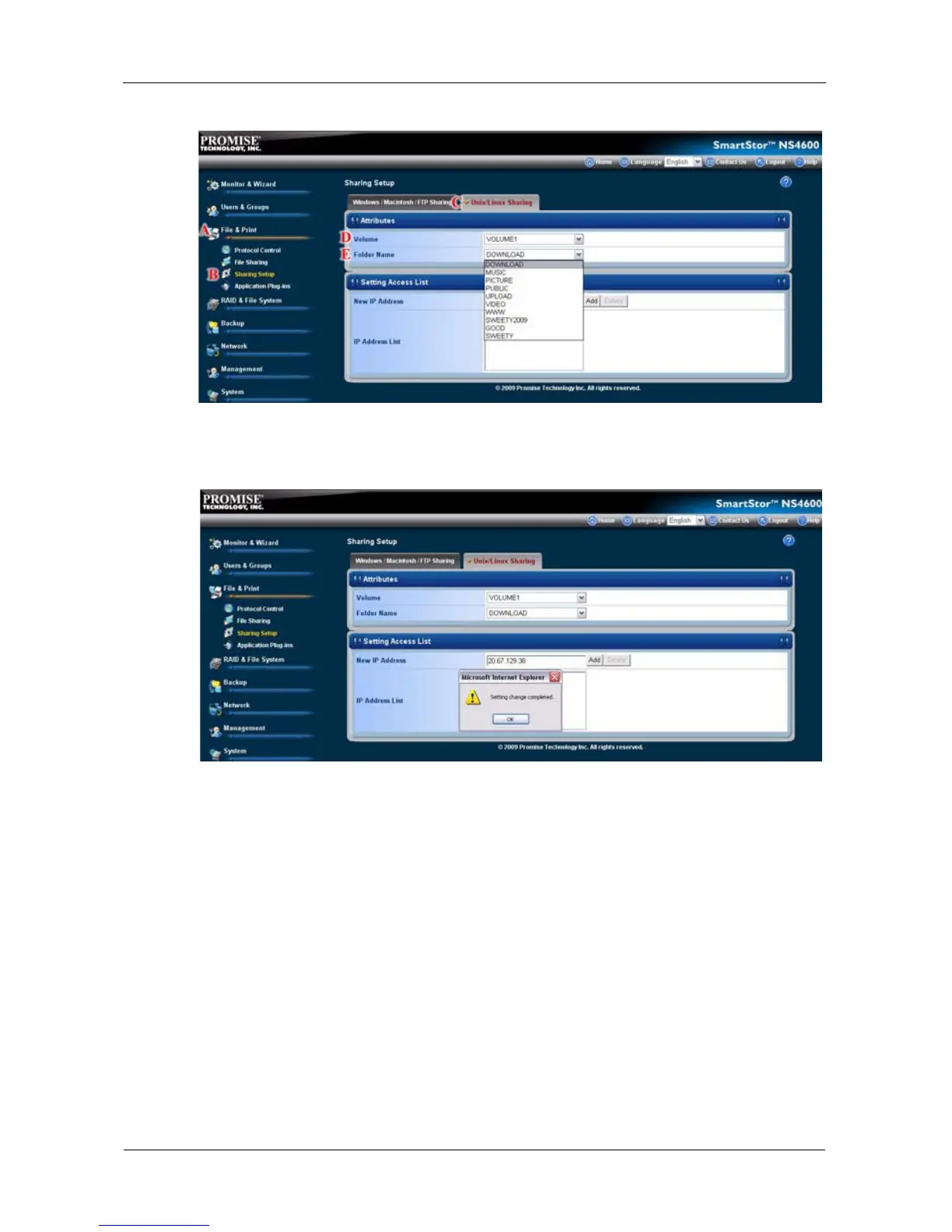

4. Choose a folder from the Folder Name dropdown menu. (E)
5. In the New IP Address field, type the IP address of the UNIX or Linux PC
from which you will access this folder, then click the Add button.
6. Click the OK button in the confirmation box.
On the UNIX/Linux PC with Command Line Interface
1. Open a terminal window.
2. Create a new folder for the SmartStor. Type mkdir SmartStor and press
Enter.
3. Mount the SmartStor. Type mount NAS4600 IP/VOLUME1/PUBLIC/
SmartStor and press Enter.
Note that the IP address shown above is only an example. See “Finding the
SmartStor’s IP Address” on page 23.
Volume1 and Public refer to the default Volume and folder created during
setup. See page 15. If you created a different volume or folder, use those
names.
4. Change to the SmartStor directory. Type cd /SmartStor and press Enter.

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
