Appendix A: Maintenance
343

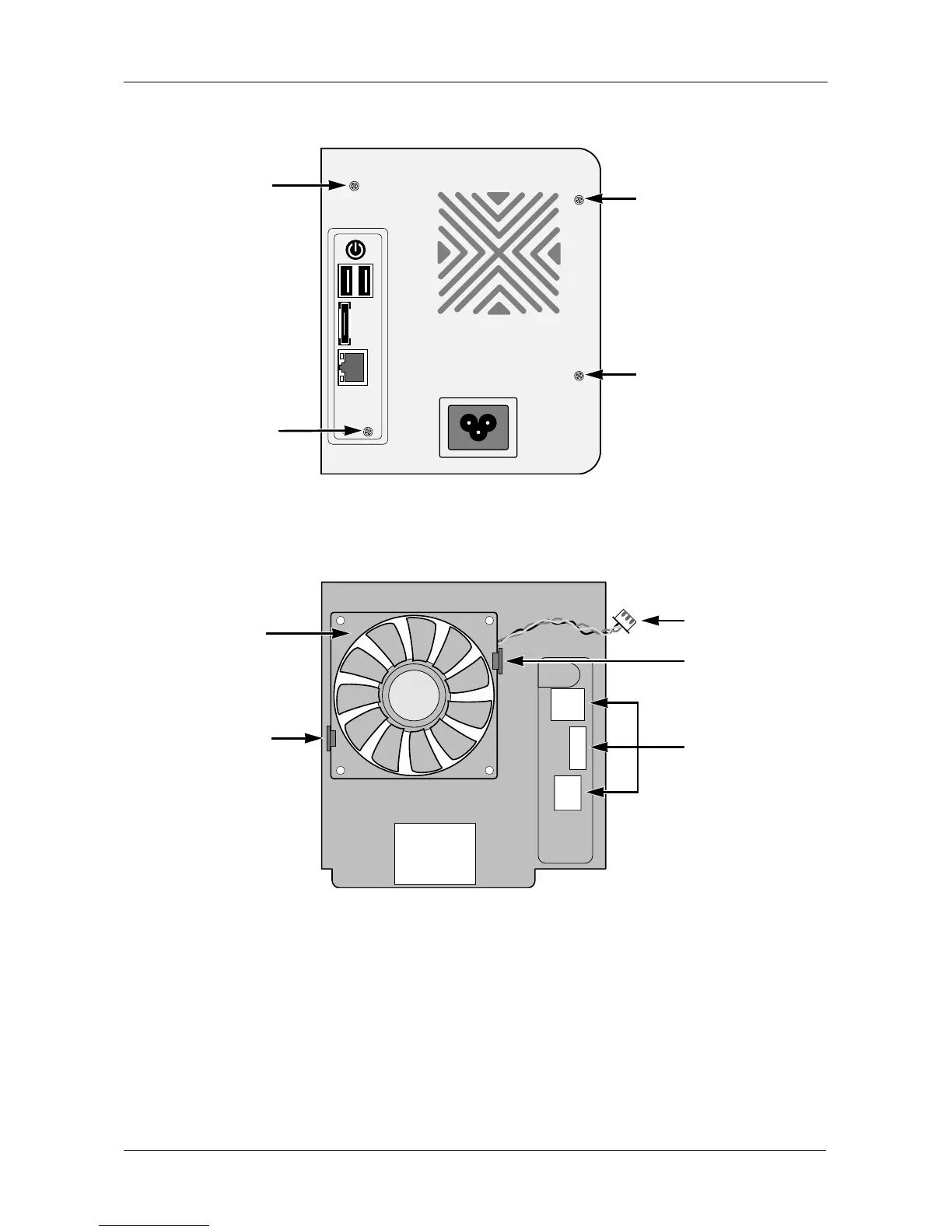

3. Remove the four screws from the back cover and remove the back cover.
4. Unplug the three-wire fan power connector at the motherboard.
5. Gently press outward on the two retainer clips to release the fan.
Installing the Cooling Fan
To install the new cooling fan:
1. Genly press the new fan into position between the retainer clips on the back
cover.
Be sure that the fan is positioned to blow outward and the wires extend
toward the connector holes in the back panel.
2. Attach the three-wire fan power connector at the motherboard.
Screw
Screw
Screw
Screw
Retainer clip
Retainer clip
Fan power
connector
Cooling Fan
Connector
holes
