Promise Technology Smartstor NS4600 User Manual

Chapter 4: SmartNAVI
141
It takes about a minute to boot the SmartStor. When fully booted:
• The System Status LED turns blue.
• The buzzer beeps one time.
Choosing a Default NAS System
This feature sets the default NAS system (SmartStor) for the Main Window and
SmartNAVI tray icon. A default NAS activates several important functions,
including:
• Share Folder: Opening a Share Folder
• Backup Now: Performing an Immediate Backup
• Open Advanced Management: Starting the Advanced Storage Manager
• Event Notice: Enabling Event Notification
If you do not choose a default NAS, SmartNAVI sets the default NAS after you
first log on.
To set a default NAS:

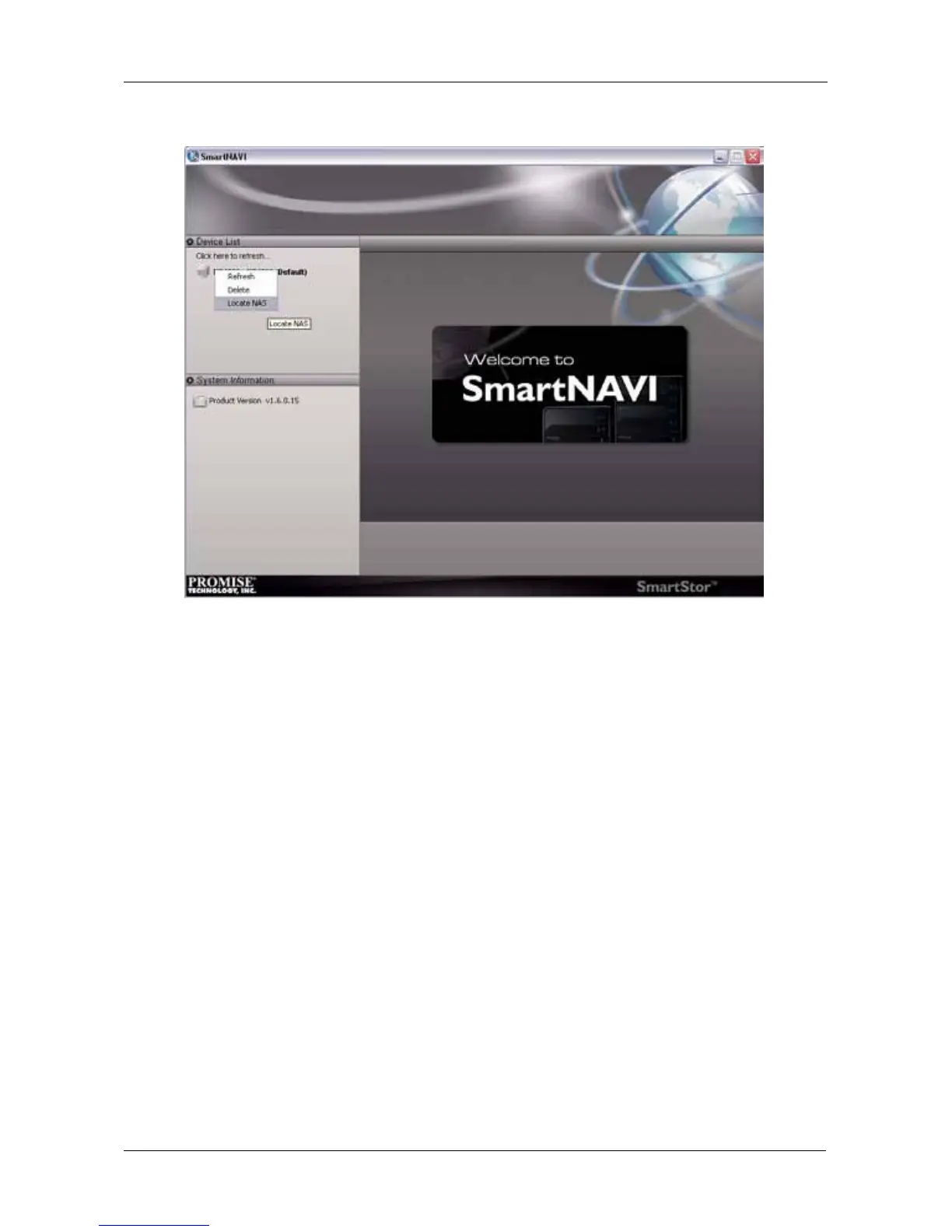

1. Go to the Main Window.
2. Right-click the system in the Device List that you want to make the default.
3. Choose the Default NAS item.

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
