Promise Technology Smartstor NS4600 User Manual

Chapter 5: PASM
225

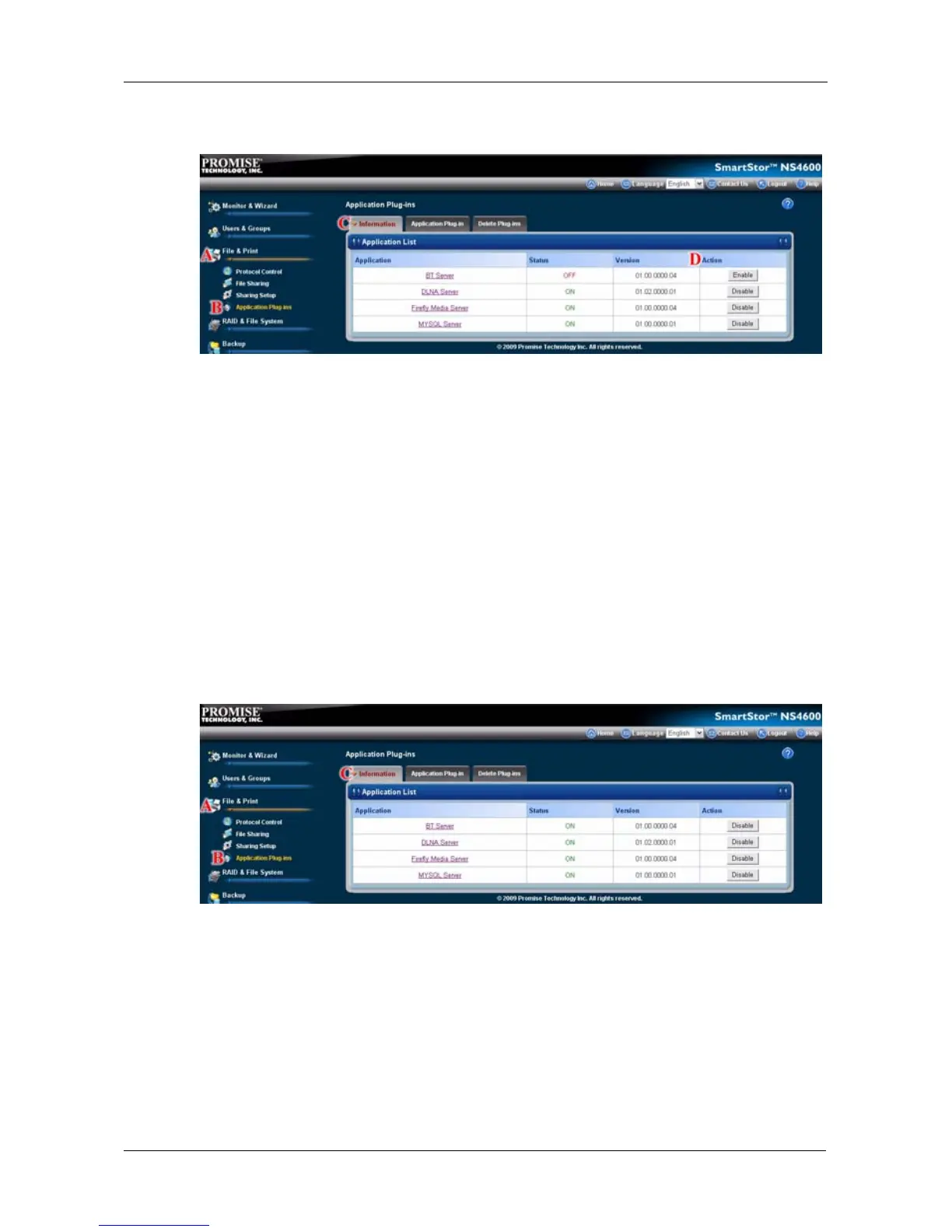

3. In the Information tab, click the Enable button on the end of the plug-in list
you want to enable. (C)
4. Click the OK button in the confirmation box.
After a moment, the Service Status changes to ON.
The plug-in is now enabled.
Disabling Application Plug-ins
Disabling a plug-in saves memory space and processing time on the SmartStor. If
you do not use a feature, consider disabling its plug-in.
To disable a plug-in:
1. Click the Administration topic and choose the File & Print icon to expand
the Tree. (A)
2. In the Tree, click the Application Plug-in icon. (B)
3. In the Information tab, click the Disable button on the end of the plug-in list
you want to disable. (C)
4. Click the OK button in the confirmation box.
After a moment, the Service Status changes to OFF.
The plug-in is now disabled.

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
