Promise Technology Smartstor NS4600 User Manual

SmartStor NS4600 Product Manual
36
Setting up a Network Drive on a UNIX or Linux PC
Before you can access the SmartStor from a UNIX or Linux PC, you must
configure the SmartStor to communicate with UNIX and Linux.
On a Windows or Mac
Setting up UNIX/Linux Service
To set up access from a UNIX or Linux PC:
1. Start PASM.
See “PASM in your Browser” on page 25, “PASM in SmartNAVI” on page 26,
or “PASM in Bonjour” on page 28.

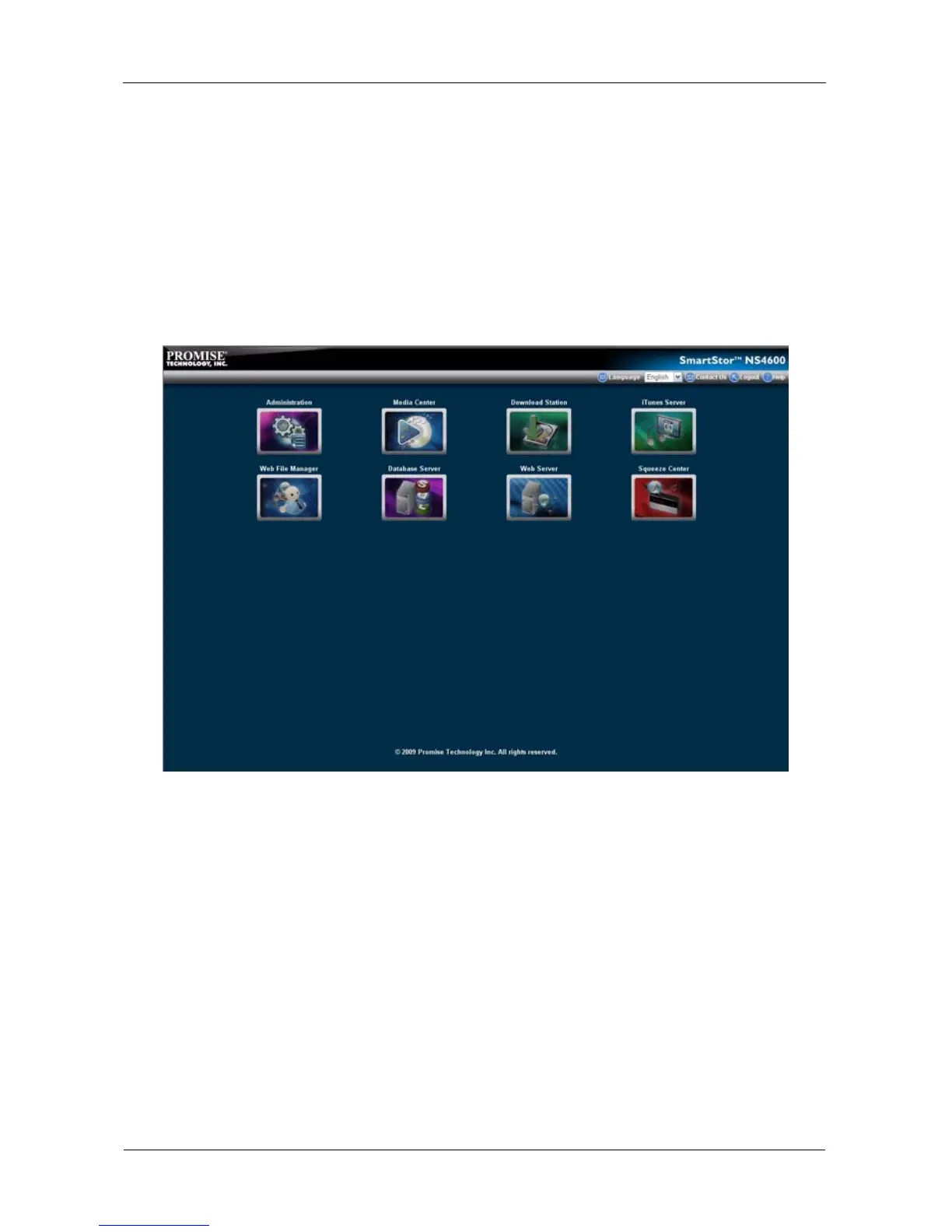

2. Click the Administration topic and choose the File & Print icon to expand
the Tree. (A)
3. In the Tree, click the Protocol Control icon (B), then click the UNIX/Linux
tab (C).

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
