Promise Technology Smartstor NS4600 User Manual

Chapter 5: PASM
275

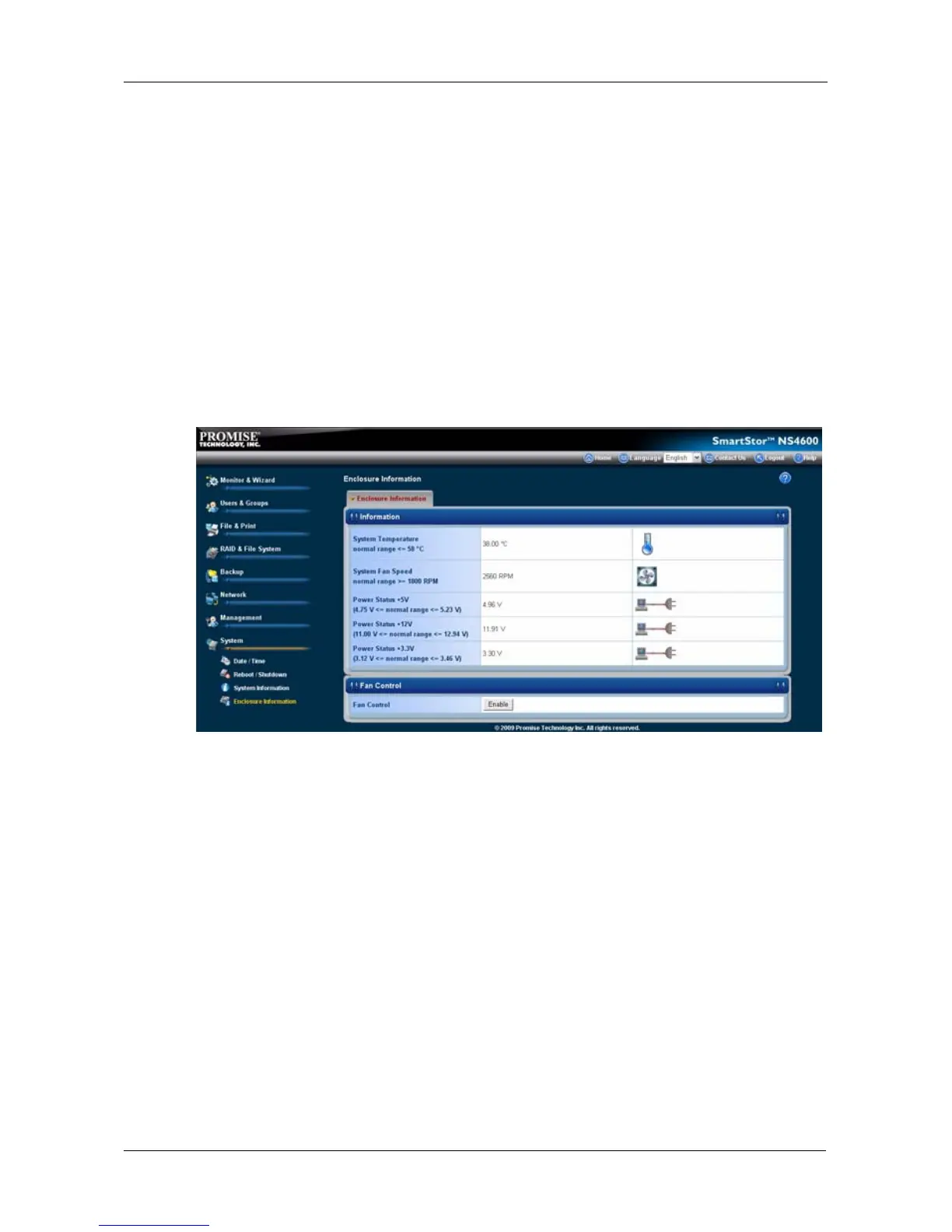

Enabling the Smart Fan
The Smart Fan feature slows or turns off the fan to save energy and reduce noise
when the fan is not needed to cool the SmartStor enclosure. The Smart Fan is
enabled by default.
To enable the Smart Fan:
1. Click the Administration topic and choose the System icon to expand the
Tree.
2. In the Tree, click the System Information icon.
3. Click the Enclosure Information tab.
4. Under Fan Control, click the Enable option.
5. Click the OK button.
6. In the confirmation box, click the OK button.

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
