SmartStor NS4600 Product Manual
154

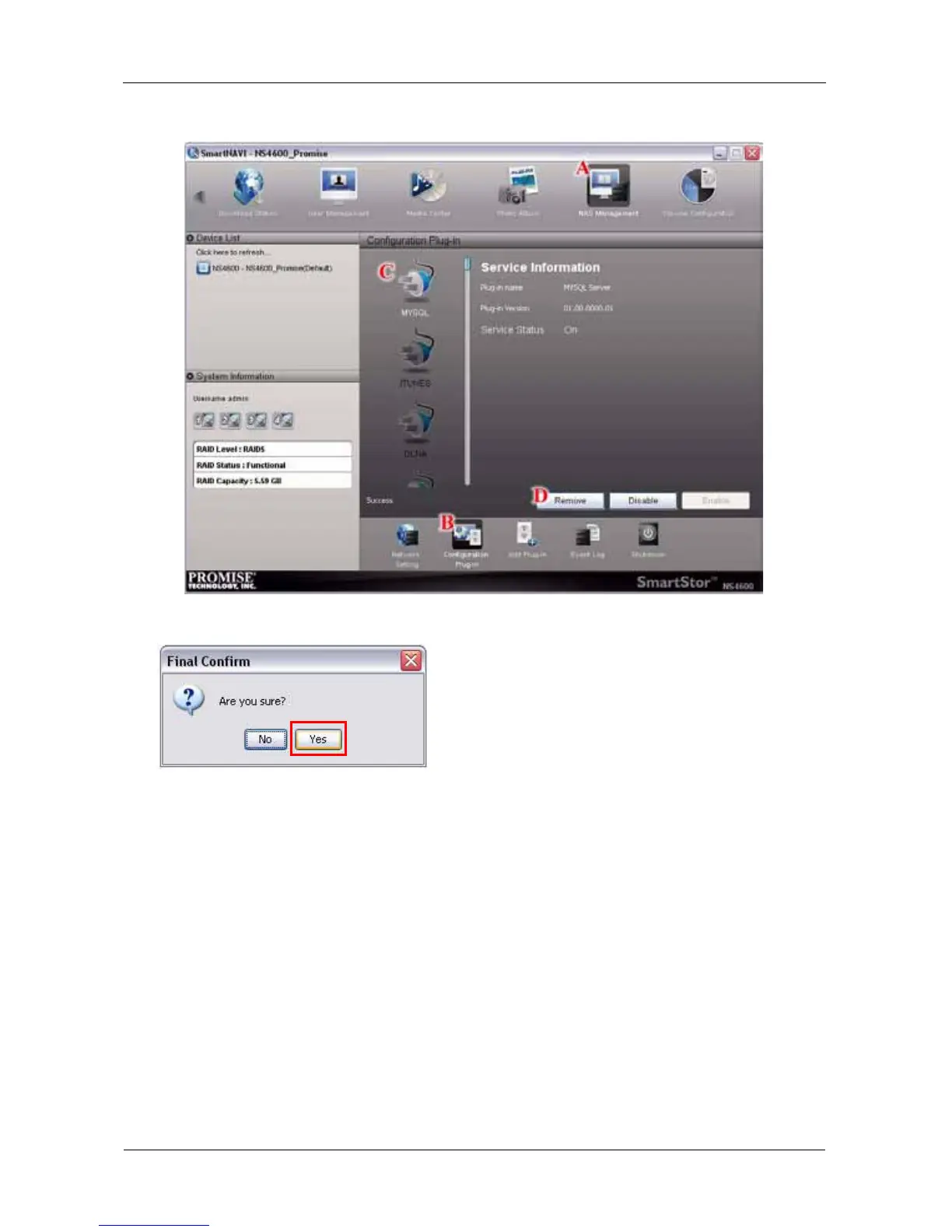

5. Click the Remove button. (D)
6. Click the Yes button in the confirmation box.
The plug-in is removed from SmartNAVI.
If you need the plug-in later, you can reinstall it. See “Adding Application
Plug-ins” on page 144.
Rebooting the SmartStor
Normally you will only need to reboot the SmartStor is after a firmware upgrade or
a plug-in installation. During the reboot, none of your folders will be accessible
from your networked PCs.
To reboot the SmartStor:
1. Go to the Main Window.
2. Click the NAS Management icon. (A)
3. Click the Shutdown button. (B)

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
