SmartStor NS4600 Product Manual
248

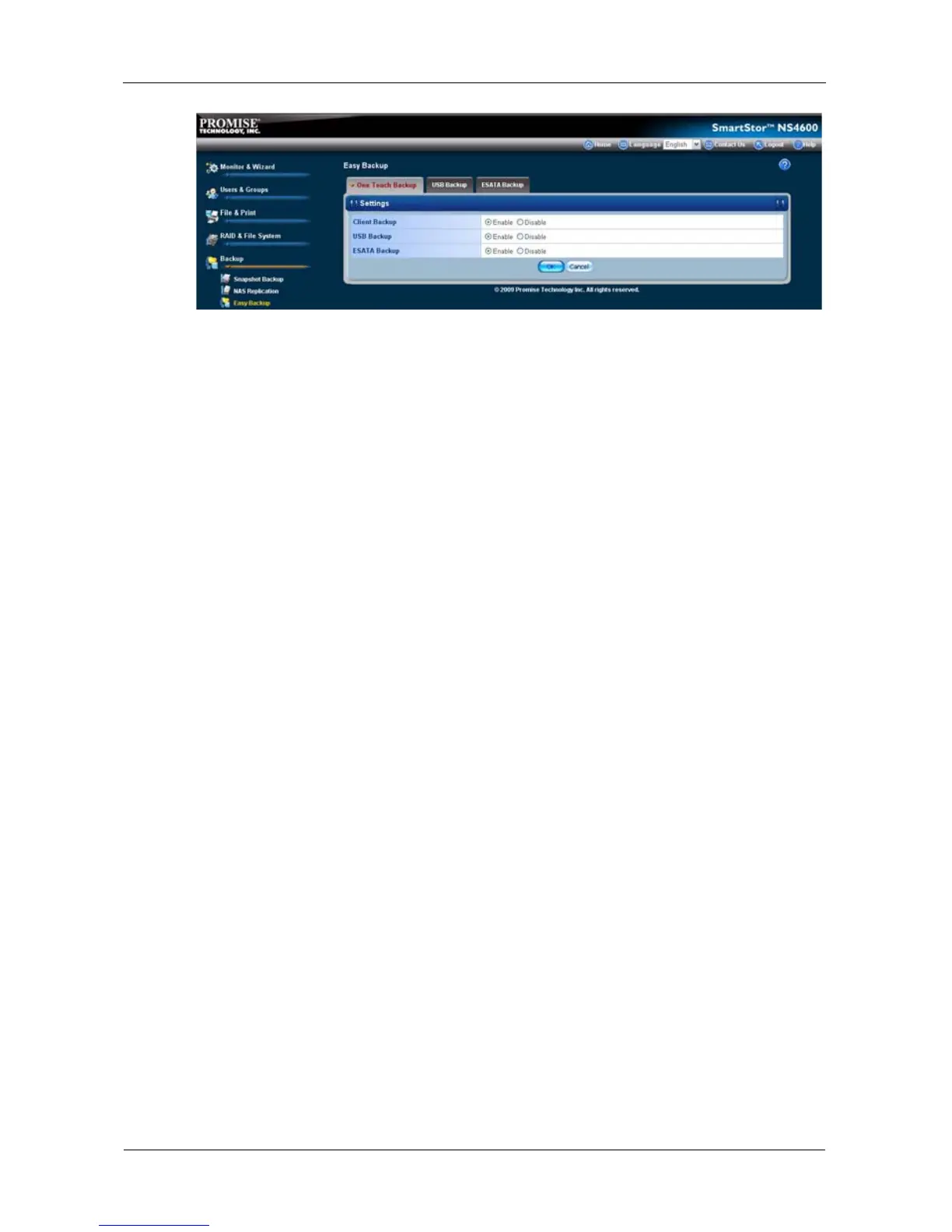

You must create a backup schedule in SmartNAVI so the One Touch Backup
function will know which folders and files to backup. See “Chapter 4: One Touch
Backup” on page 59.
Setting USB Backup
The USB Backup tab enables you to change the backup services of the
SmartStor and the USB storage device.
To set the USB Backup settings:
1. Click the Administration topic and choose the Backup icon to expand the
Tree.
2. In the Tree, click the Easy Backup icon.
3. Click the USB Backup tab and then the Backup Services you want.
• Backup data from the USB storage device to Share Folder
• Backup data from Share Folder to the USB storage device
4. Select a Backup Method you want from the drop-down list.
• Add Directory
•Copy
• Synchronize
5. Select a Folder Name you want from the drop-down list.

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
