SmartStor NS4600 Product Manual
224
• Music – mp3, pcm, wma
• Video – avi, mpg, mpeg, wmv, tts, vob

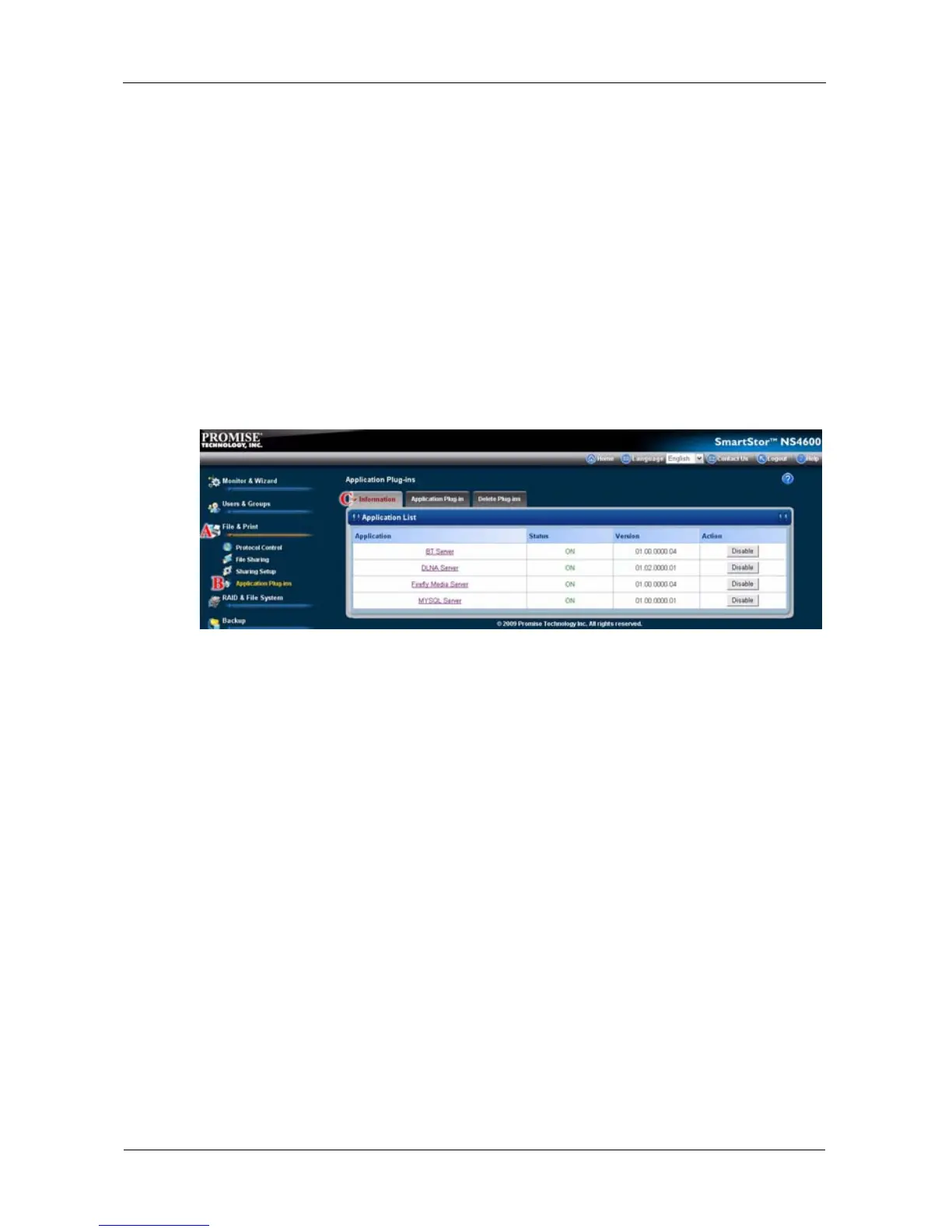

Viewing a List of Application Plug-ins
To view a list of installed plug-ins:
1. Click the Administration topic and choose the File & Print icon to expand
the Tree. (A)
2. In the Tree, click the Protocol Control icon. (B)
3. A list of installed application plug-ins, version numbers and status appear on
the Information tab. (C)
Many plug-ins have a clickable link that takes you to their management
interface.
Enabling and Disabling Application Plug-ins
Enabling Application Plug-ins
You must add a plug-in to SmartStor before you can use this function. To add a
plug-in to SmartStor, see “Adding Application Plug-ins” on page 261.
To enable a plug-in:
1. Click the Administration topic and choose the File & Print icon to expand
the Tree. (A)
2. In the Tree, click the Application Plug-in icon. (B)

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
