SmartStor NS4600 Product Manual
206
8. In the confirmation box, click the OK button.
If you forget your new password, you reset the SmartStor to the default
Administrator’s password. See “Restoring the Default Password” on page 321.

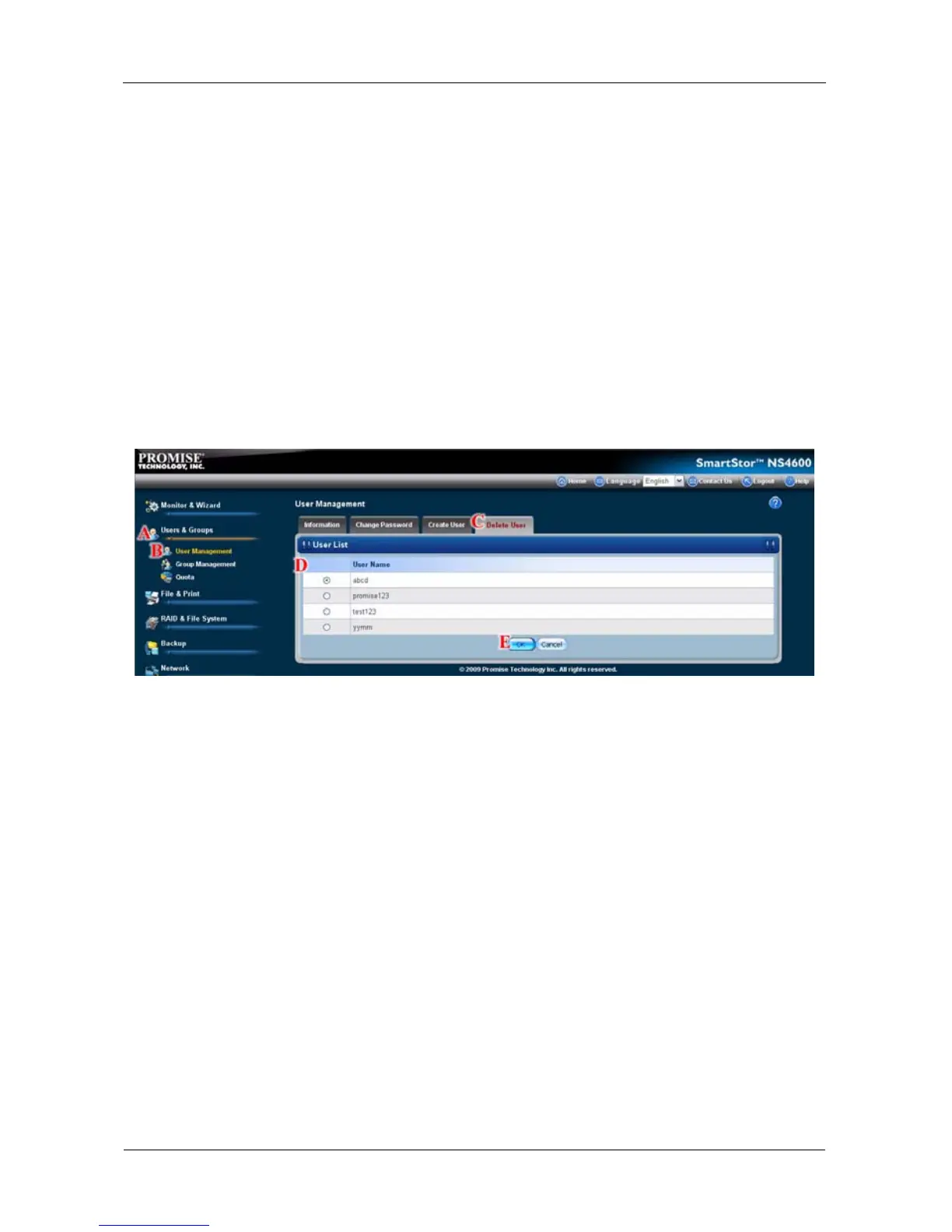

Deleting a User
You cannot delete the Administrator (admin). To delete any other user:
1. Click the Administration topic and choose the Users & Group icon to
expand the Tree. (A)
2. In the Tree, click the User Management icon. (B)
3. Click the Delete User tab. (C)
4. Click the option button to the left of the user you want to delete. (D)
5. Click the OK button. (E)
6. In the confirmation box, click the OK button.
Viewing a List of Groups
Groups are composed of users. You can assign permissions to a group, the
same as you would do with individual users.
To view a list of groups:
1. Click the Administration topic and choose the Users & Group icon to
expand the Tree. (A)
2. In the Tree, click the Group Management icon. (B)

Table of Contents

Other manuals for Promise Technology Smartstor NS4600

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Promise Technology Smartstor NS4600 and is the answer not in the manual?

Promise Technology Smartstor NS4600 Specifications

General IconGeneral
RAID levels0, 1, 5, 10
Storage drive size3.5 \
Hot-swap drive baysYes
Storage drive capacity0 GB
Supported file systemsEXT3, FAT32
Storage drive interfaceSerial ATA II
Total installed storage capacity0 TB
Number of storage drives installed4
Internal memory0.25 GB
Processor model-
Processor frequency0.6 GHz
Maximum data transfer rate1000 Mbit/s
Supported network protocolsFTP, DHCP, NTP
Compliance industry standardsIEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
CertificationRoHS, CE, FCC, UL, TUV
Data transfer rate3 Gbit/s
Dimensions (WxDxH)152.5 x 229.6 x 188.2 mm
Power requirements100 - 230 V/50-60 Hz
Networking featuresGigabit Ethernet
Compatible operating systemsWindows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
Power supply unit (PSU) capacity90 W
Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)10 - 85 %
Weight and Dimensions IconWeight and Dimensions
Weight2500 g
