Promise Technology Smartstor NS4600 User Manual

SmartStor NS4600 Product Manual
282

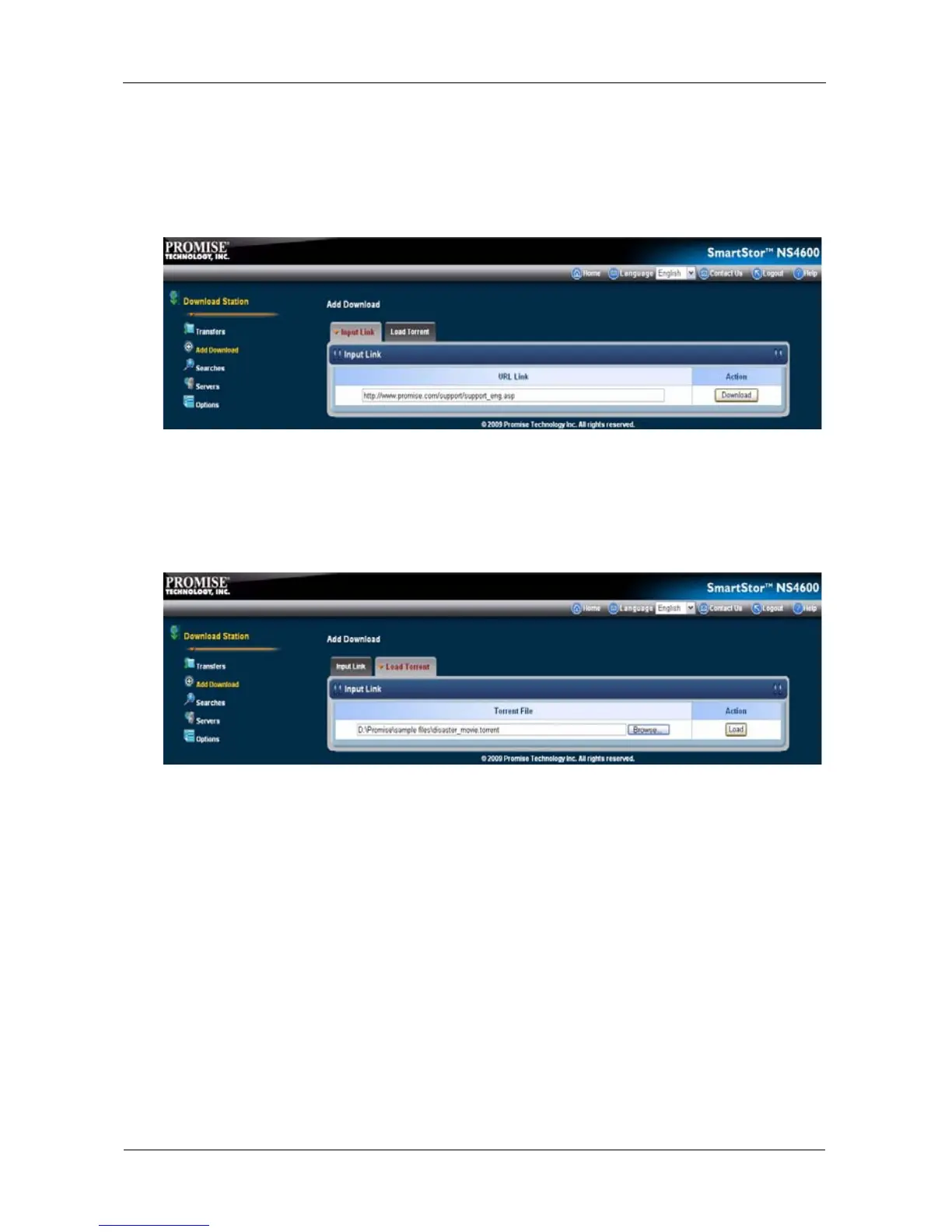

• Input Link
To add the Input Link to download:
1. Type the URL/FTP Link into the input link field.
2. Click the download button to start the download action.
• Load Torrent
To add the Torrent file to load:
1. Click the Browse button the select the torrent file you want.
2. Click the Load button to load the file.
Options
The Options tab enables you to set and change the value of download item you
want.
The option list displays the information as below:
•Item
• Value
• Action
To set and change the value:
1. Type the value into each field.
2. Click the change button to change the value.
3. Click the OK button to the confirmation box.

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
