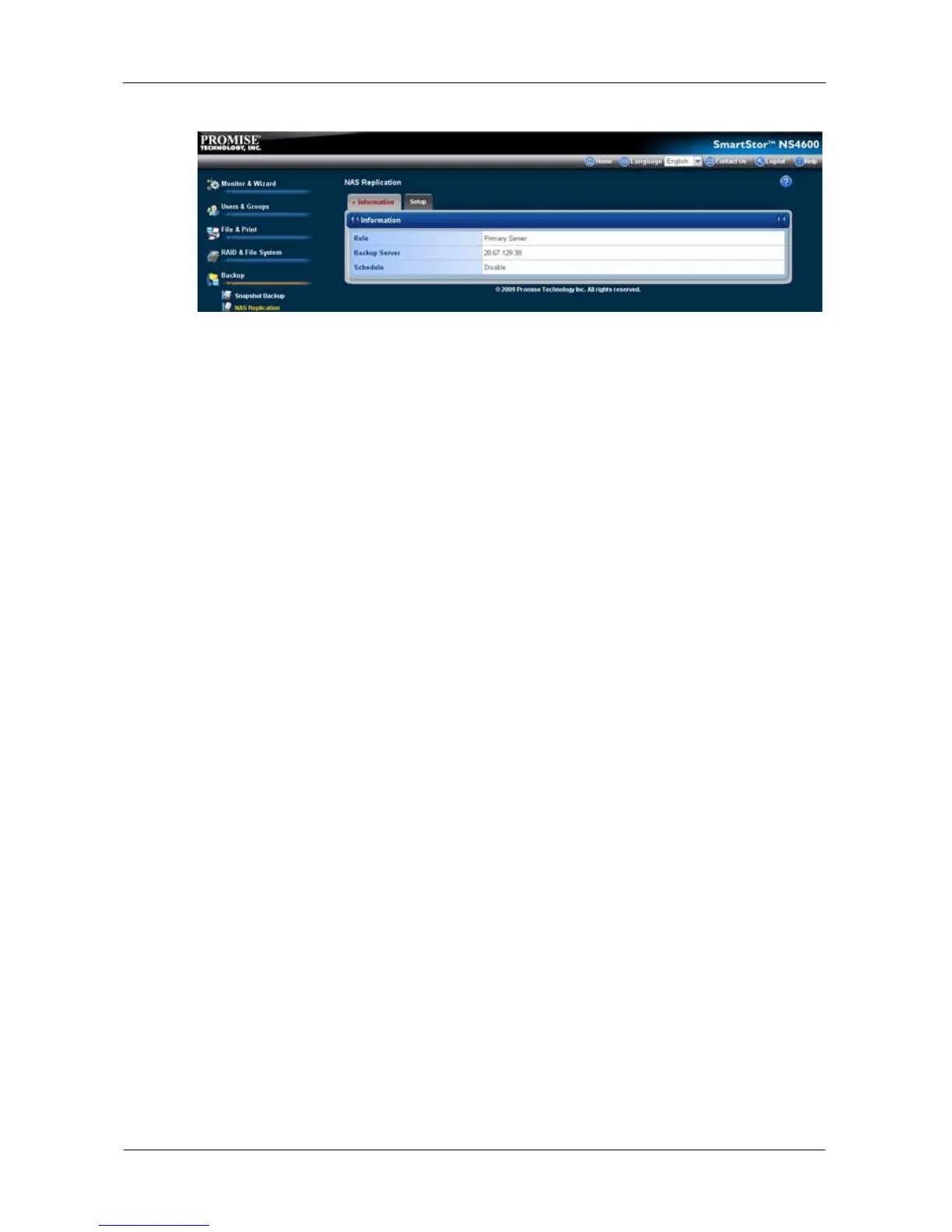

SmartStor NS4600 Product Manual
246
Setting up NAS Replication
To set up NAS replication:
1. Click the Administration topic and choose the Backup icon to expand the
Tree.
2. In the Tree, click the NAS Replication icon.
3. Click the Setup tab.
4. Under Settings, click the option button to assign a role to this SmartStor:
Standalone – Use this option when you only have one SmartStor on
your network. This is the default setting and it disables NAS Replication.
Primary – This SmartStor is the primary and the other SmartStor is the
backup server.
Backup Server – The other SmartStor is the primary and this SmartStor
is the backup server.
5. Optional. If you chose Primary or Backup Server, type the IP address of the
other SmartStor on your network.
6. Under Schedule, click the option button for the schedule type you want:
Disable – Disables NAS Replication
Do it at once – Performs a NAS Replication when you click the OK
button.
Daily – Sets the time of day when the NAS Replications happen.
Weekly – Sets the time of day and day of the week when the NAS
Replications happen.
7. Click the OK button.

Table of Contents

Other manuals for Promise Technology Smartstor NS4600

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Promise Technology Smartstor NS4600 and is the answer not in the manual?

Promise Technology Smartstor NS4600 Specifications

General IconGeneral
RAID levels0, 1, 5, 10
Storage drive size3.5 \
Hot-swap drive baysYes
Storage drive capacity0 GB
Supported file systemsEXT3, FAT32
Storage drive interfaceSerial ATA II
Total installed storage capacity0 TB
Number of storage drives installed4
Internal memory0.25 GB
Processor model-
Processor frequency0.6 GHz
Maximum data transfer rate1000 Mbit/s
Supported network protocolsFTP, DHCP, NTP
Compliance industry standardsIEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
CertificationRoHS, CE, FCC, UL, TUV
Data transfer rate3 Gbit/s
Dimensions (WxDxH)152.5 x 229.6 x 188.2 mm
Power requirements100 - 230 V/50-60 Hz
Networking featuresGigabit Ethernet
Compatible operating systemsWindows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
Power supply unit (PSU) capacity90 W
Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)10 - 85 %
Weight and Dimensions IconWeight and Dimensions
Weight2500 g
