Promise Technology Smartstor NS4600 User Manual

Chapter 4: SmartNAVI
133

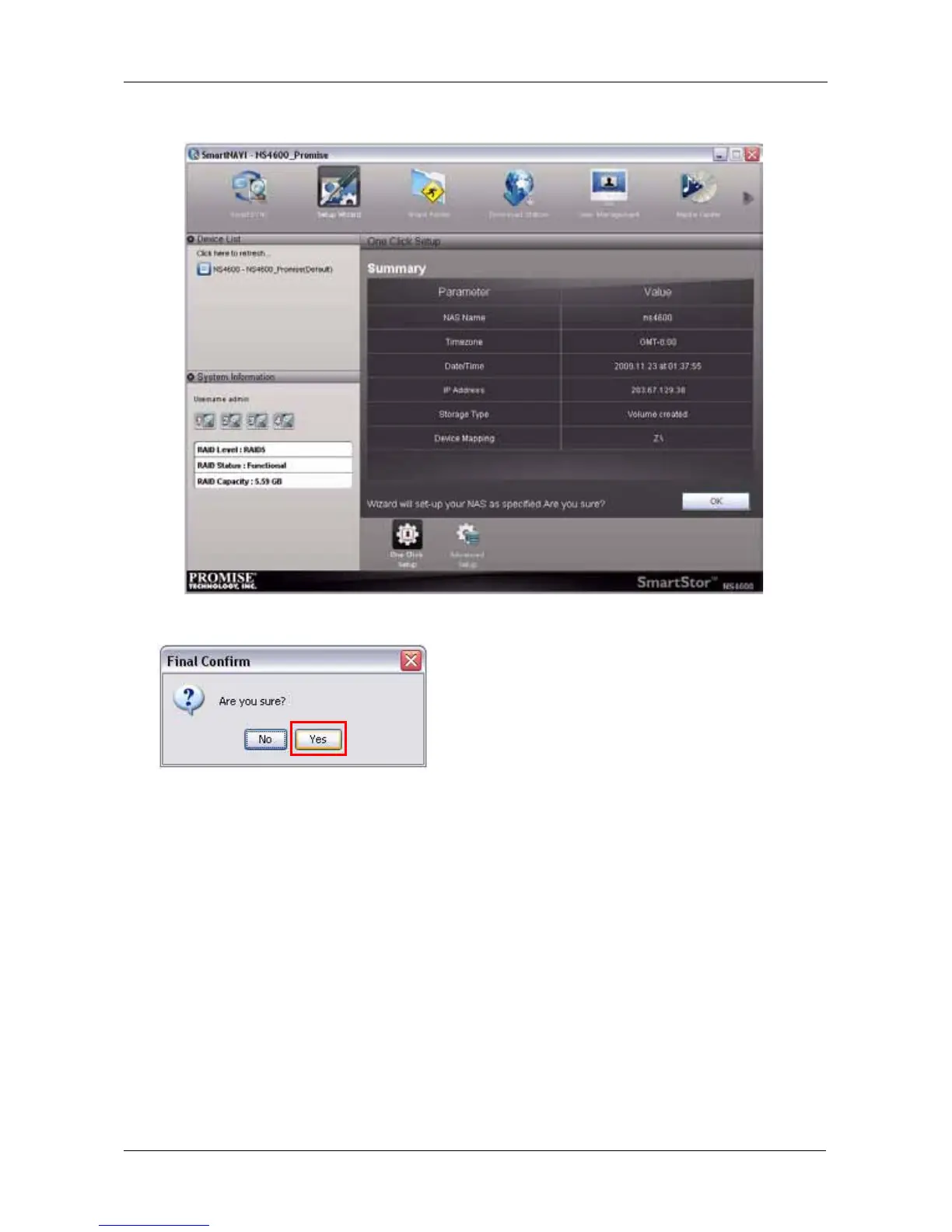

4. Click the OK button to continue.
5. Click the Yes button in the confirmation box.
The NAS reboots. Then your RAID volume is ready.
Advanced Setup
To configure your NAS system using Advanced Setup:
1. Go to the Main Window.
2. Click the Setup Wizard icon. (A)
3. Click the Advanced Setup button. (B)
4. Choose Automatic (DHCP) or Manual network settings. (C)
If you chose Manual settings, type entries for each of the following
parameters in the fields provided: (D)
• Computer (NAS system) Name
• IP Address

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
