Promise Technology Smartstor NS4600 User Manual

SmartStor NS4600 Product Manual
268
Managing the System
This category includes the following topics:
• Setting System Date and Time (page 268)
• Adjusting for Daylight Saving Time (page 269)
• Running the Network Time Protocol (page 269)
• Viewing the Results of NTP Synchronization (page 270)
• Rebooting the SmartStor (page 270)
• Shutting Down the SmartStor (page 271)
• Restarting the SmartStor (page 272)
• Locating the SmartStor (page 272)
• Viewing System Information (page 273)
• Viewing Enclosure Information (page 274)
• Enabling the Smart Fan (page 275)

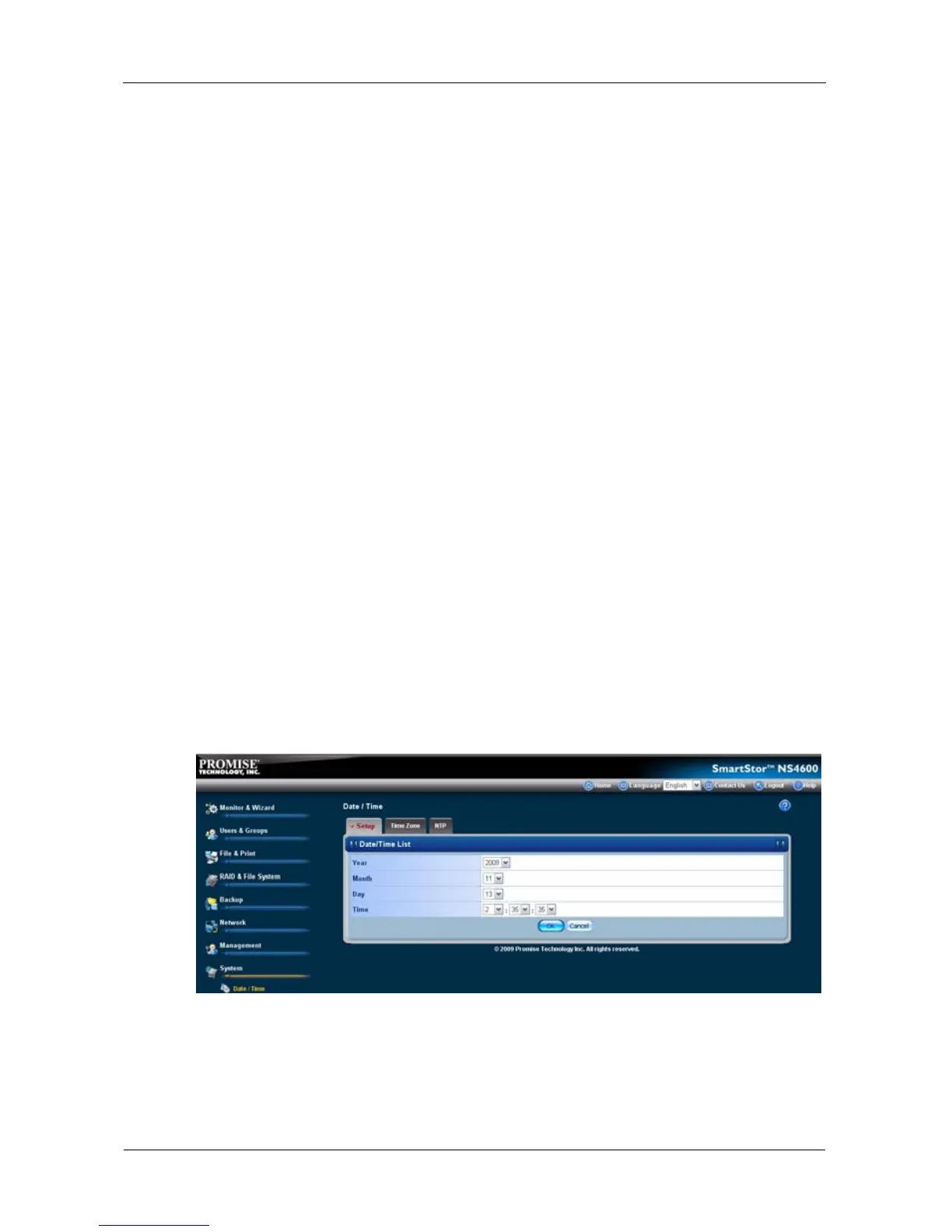

Setting System Date and Time
To set the date and time on the SmartStor:
1. Click the Administration topic and choose the System icon to expand the
Tree.
2. In the Tree, click the Date / Time icon.
3. Click the Setup tab.
4. From the dropdown menus, choose the time and date values.
5. Click the OK button.
6. In the confirmation box, click the OK button.

Promise Technology Smartstor NS4600 Specifications

General

RAID levels	0, 1, 5, 10
Storage drive size	3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	0 GB
Supported file systems	EXT3, FAT32
Storage drive interface	Serial ATA II
Total installed storage capacity	0 TB
Number of storage drives installed	4
Internal memory	0.25 GB
Processor model	-
Processor frequency	0.6 GHz
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	FTP, DHCP, NTP
Compliance industry standards	IEEE 802.3i, IEEE 802.3ab, IEEE 802.3u
Certification	RoHS, CE, FCC, UL, TUV
Data transfer rate	3 Gbit/s
Dimensions (WxDxH)	152.5 x 229.6 x 188.2 mm
Power requirements	100 - 230 V/50-60 Hz
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista Mac x 10.4 + Linux
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Power supply unit (PSU) capacity	90 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	2500 g
