LB9 User’s Guide 1040/1523

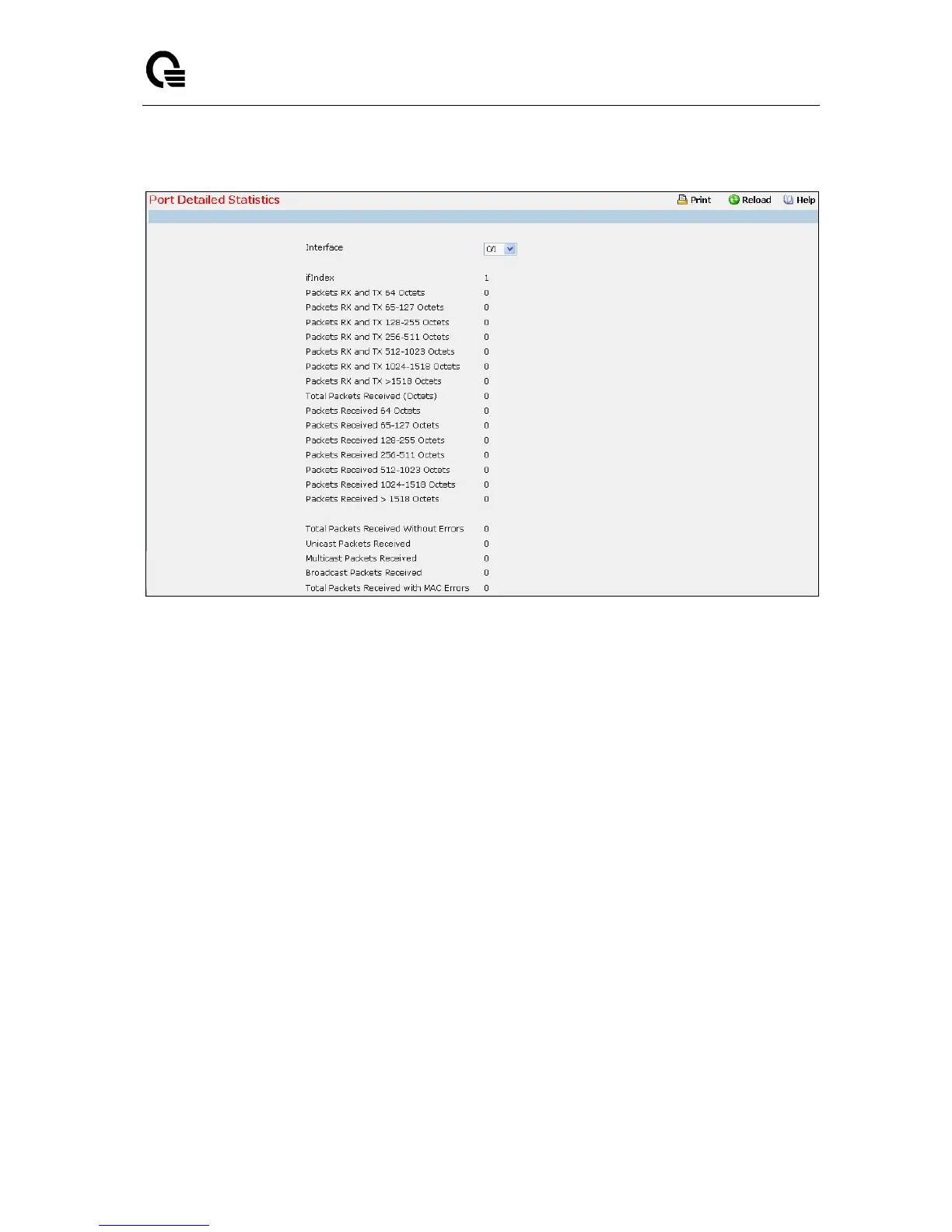

11.2.7.3 Viewing Each Port Detailed Statistics Page
Selection Criteria
Interface - Selects the interface for which data is to be displayed or configured.
Non-Configurable Data
ifIndex - This object indicates the ifIndex of the interface table entry associated with this port on an
adapter.
Packets RX and TX 64 Octets - The total number of packets (including bad packets) received or
transmitted that were 64 octets in length (excluding framing bits but including FCS octets).
Packets RX and TX 65-127 Octets - The total number of packets (including bad packets) received
or transmitted that were between 65 and 127 octets in length inclusive (excluding framing bits but
including FCS octets).
Packets RX and TX 128-255 Octets - The total number of packets (including bad packets) received
or transmitted that were between 128 and 255 octets in length inclusive (excluding framing bits but
including FCS octets).
Packets RX and TX 256-511 Octets - The total number of packets (including bad packets) received
or transmitted that were between 256 and 511 octets in length inclusive (excluding framing bits but
including FCS octets).
Packets RX and TX 512-1023 Octets - The total number of packets (including bad packets)
received or transmitted that were between 512 and 1023 octets in length inclusive (excluding framing
bits but including FCS octets).
Packets RX and TX 1024-1518 Octets - The total number of packets (including bad packets)
received or transmitted that were between 1024 and 1518 octets in length inclusive (excluding
framing bits but including FCS octets).
