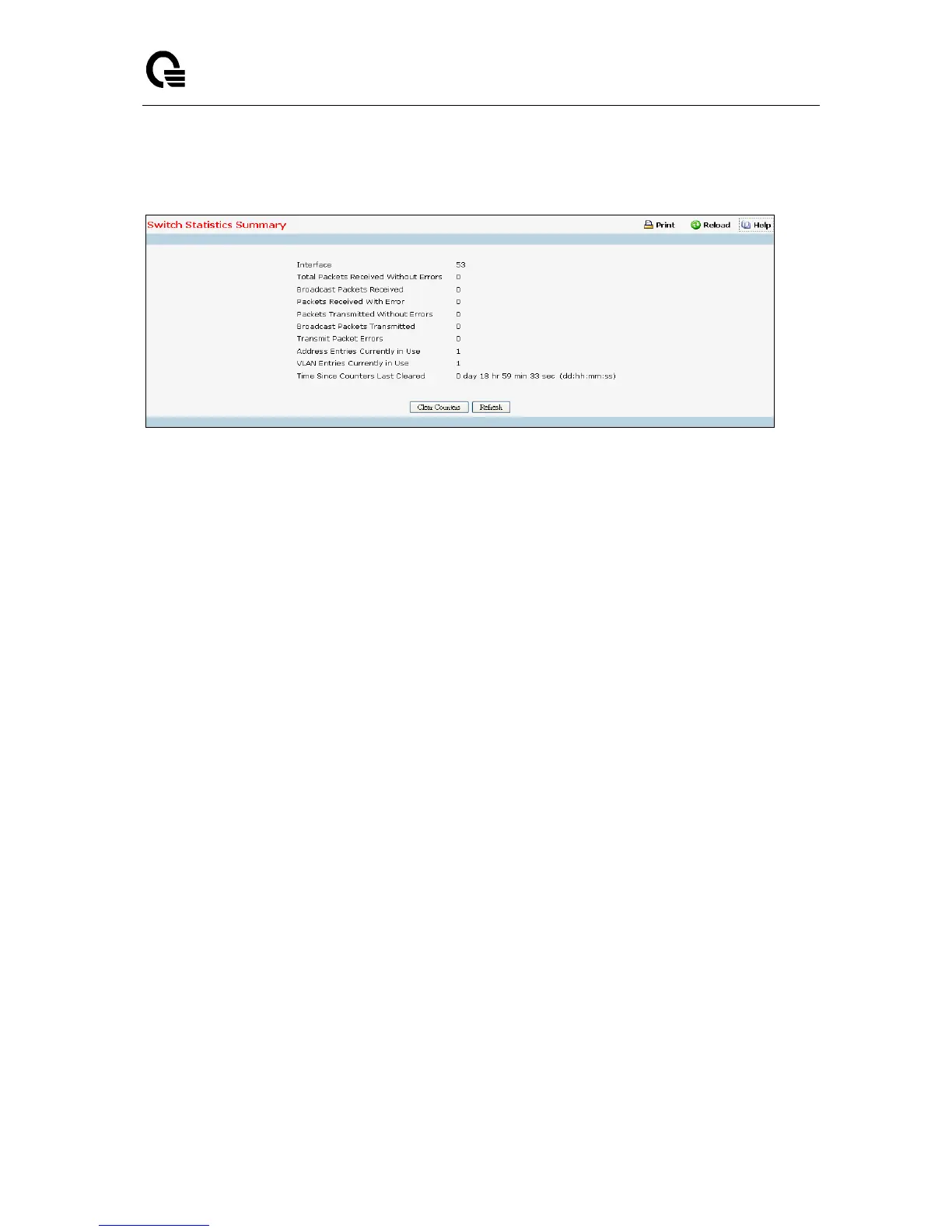

11.2.7.2 Viewing the whole Switch Summary Statistics Page
Non-Configurable Data
Interface - This object indicates the interface index of the interface table entry associated with the
Processor of this switch
Packets Received Without Errors - The total number of packets (including broadcast packets and
multicast packets) received by the processor.
Broadcast Packets Received - The total number of packets received that were directed to the
broadcast address. Note that this does not include multicast packets.
Packets Received with Errors - The number of inbound packets that contained errors preventing
them from being deliverable to a higher-layer protocol.
Packets Transmitted Without Errors - The total number of packets transmitted out of the interface.
Broadcast Packets Transmitted - The total number of packets that higher-level protocols
requested to be transmitted to the Broadcast address, including those that were discarded or not
sent.
Transmit Packet Errors - The number of outbound packets that could not be transmitted because
of errors.
Address Entries Currently in Use - The total number of Forwarding Database Address Table
entries now active on the switch, including learned and static entries.
VLAN Entries Currently in Use - The number of VLAN entries presently occupying the VLAN table.
Time Since Counters Last Cleared - The elapsed time, in days, hours, minutes, and seconds since
the statistics for this switch were last cleared.
Command Buttons
Clear Counters - Clear all the counters, resetting all summary and switch detailed statistics to
defaults. The discarded packets count cannot be cleared.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
