Quanta Computer T5016-LB8D User Manual

UANTA COMPUTER INC.
Layer 2/3/4 Managed Switch
_____________________________________________________________________________
LB9 User’s Guide 1072/1523

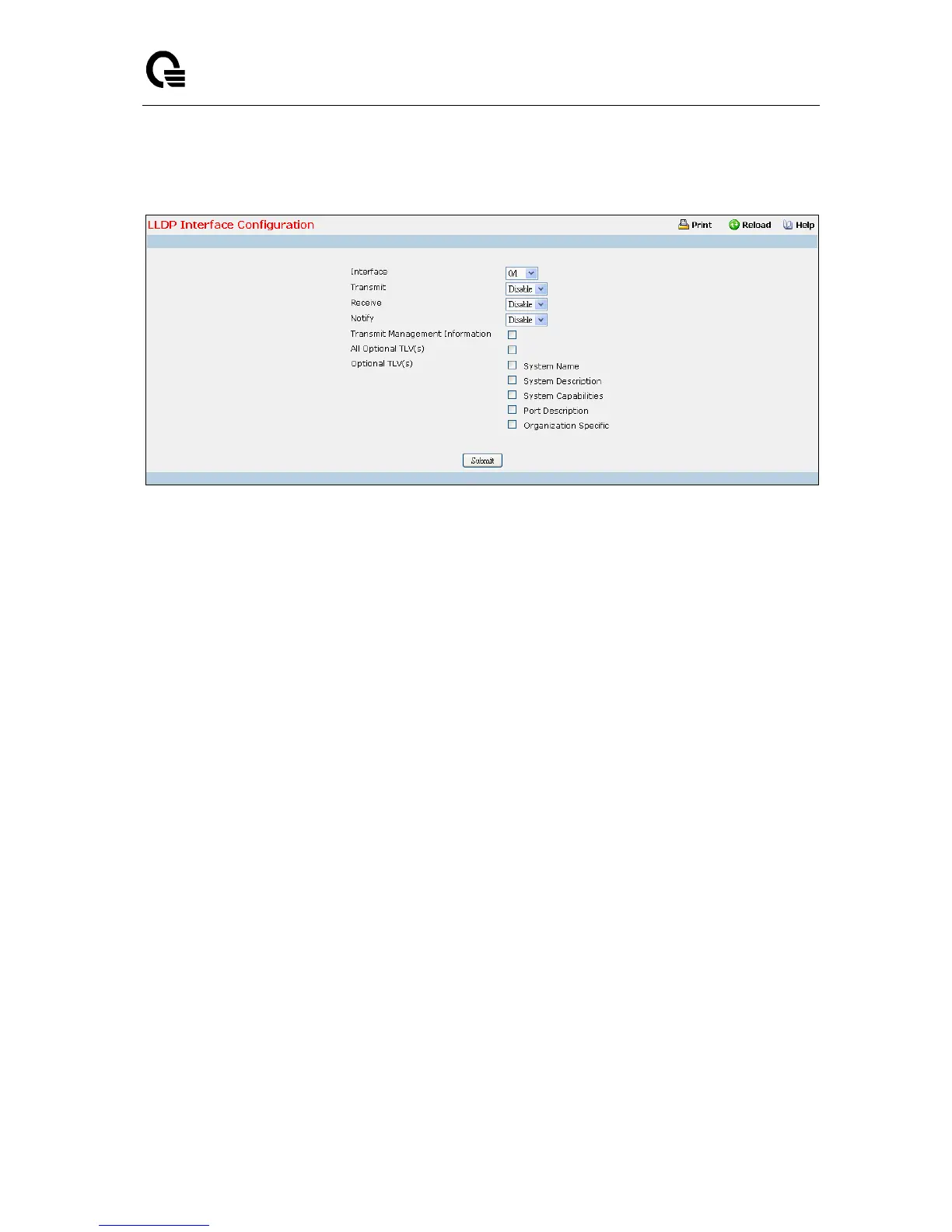

11.2.12.2 Configuring LLDP Interface Configuration Page
Selection Criteria
Interface - Specifies the list of ports on which LLDP - 802.1AB can be configured.
Transmit - Specifies the LLDP - 802.1AB transmit mode for the selected interface.
Receive - Specifies the LLDP - 802.1AB receive mode for the selected interface.
Notify - Specifies the LLDP - 802.1AB notification mode for the selected interface.
Configurable Data
Transmit Management Information - Specifies whether management address is transmitted in
LLDP frames for the selected interface.
Optional TLV(s)
 System Name - To include system name TLV in LLDP frames.
 System Description - To include system description TLV in LLDP frames.
 System Capabilities - To include system capability TLV in LLDP frames.
 Port Description - To include port description TLV in LLDP frames.
 Organization Specific - To include organization specific TLV in LLDP frames.
Command Buttons
Submit - Send the updated screen to the switch and cause the changes to take effect on the switch
but these changes will not be retained across a power cycle unless a save is performed.
