LB9 User’s Guide 1073/1523

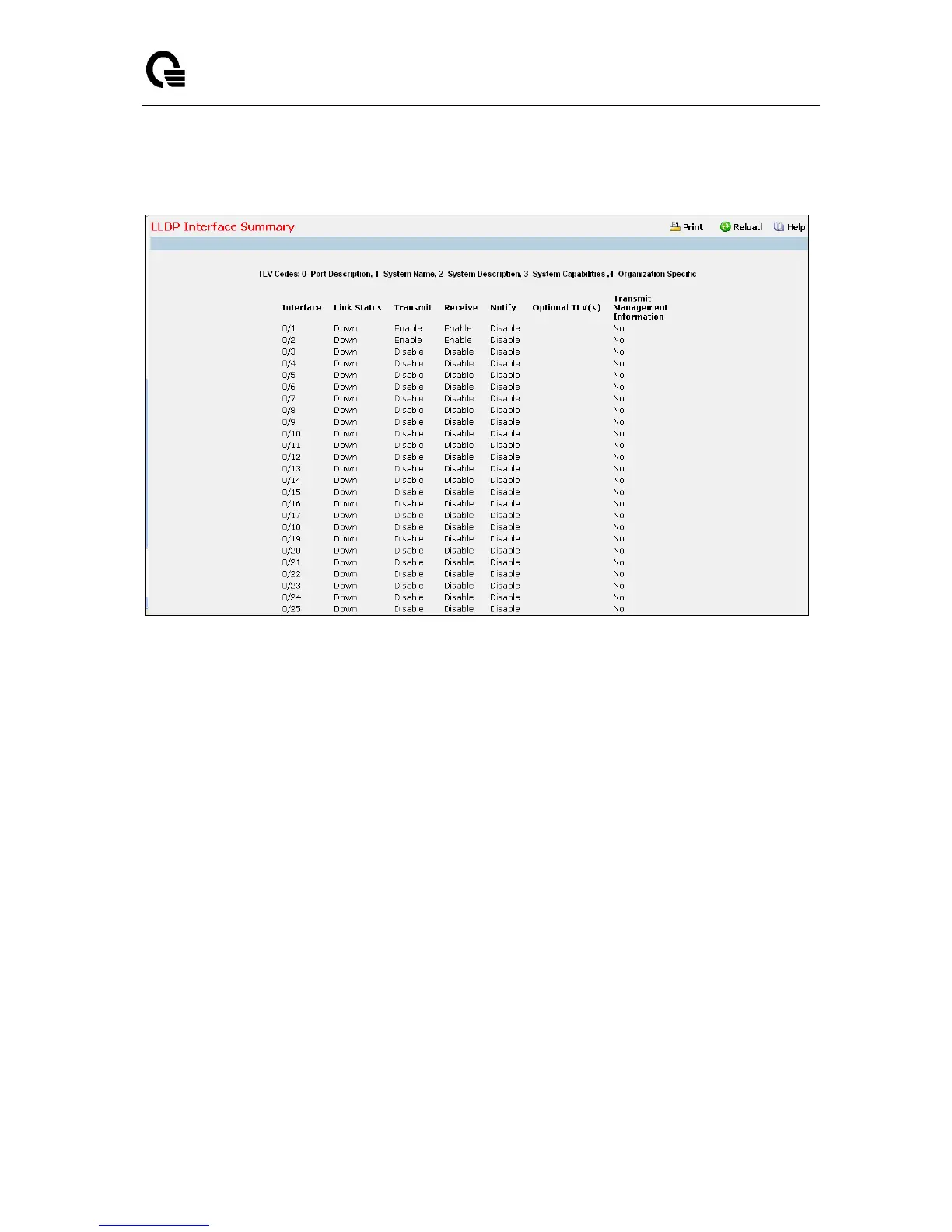

11.2.12.3 Viewing LLDP Interface Summary Page
Non-Configurable Data
Interface - Specifies all the ports on which LLDP - 802.1AB can be configured.
Link Status - Specifies the Link Status of the ports whether it is Up/Down.
Transmit - Specifies the LLDP - 802.1AB transmit mode of the interface.
Receive - Specifies the LLDP - 802.1AB receive mode of the interface.
Notify - Specifies the LLDP - 802.1AB notification mode of the interface.
Optional TLV(s) - Specifies the LLDP - 802.1AB optional TLV(s) that are included.
Transmit Management Information - Specifies whether management address is transmitted in
LLDP frames.
Command Buttons
Refresh - Updates the information on the page.
