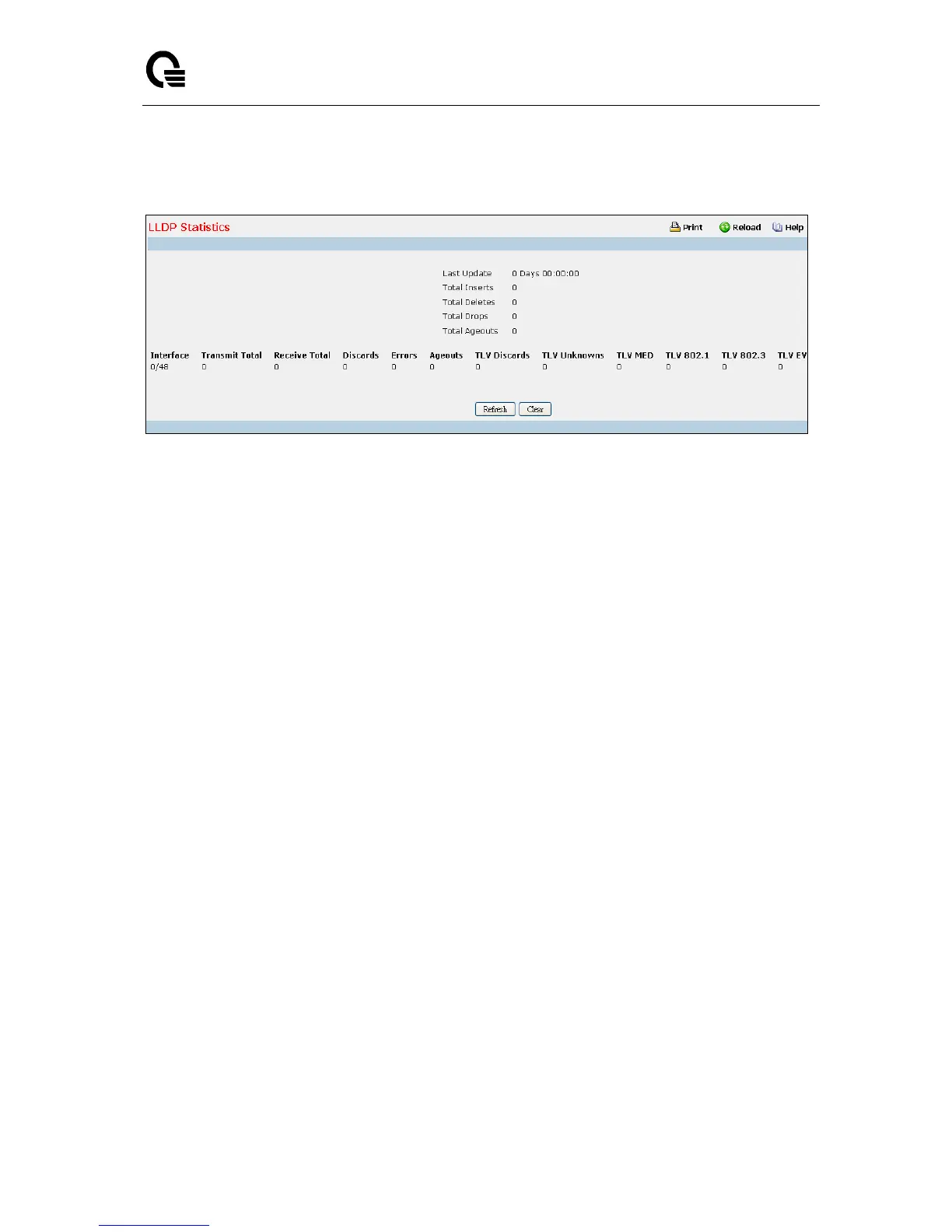

11.2.12.4 Viewing LLDP Statistics Page
Non-Configurable Data
Last Update - Specifies the time when an entry was created, modified or deleted in the tables
associated with the remote system.
Total Inserts - Specifies the number of times the complete set of information advertised by a
particular MAC Service Access Point (MSAP) has been inserted into tables associated with the
remote systems.
Total Deletes - Specifies the number of times the complete set of information advertised by a
particular MAC Service Access Point (MSAP) has been deleted from tables associated with the
remote systems.
Total Drops - Specifies the number of times the complete set of information advertised by a
particular MAC Service Access Point (MSAP) could not be entered into tables associated with the
remote systems because of insufficient resources.
Total Ageouts - Specifies the number of times the complete set of information advertised by a
particular MAC Service Access Point (MSAP) has been deleted from tables associated with the
remote systems because the information timeliness interval has expired.
Interface - Specifies the slot/port for the interfaces.
Transmit Total - Specifies the number of LLDP frames transmitted by the LLDP agent on the
corresponding port.
Receive Total - Specifies the number of valid LLDP frames received by this LLDP agent on the
corresponding port, while the LLDP agent is enabled.
Discards - Specifies the number of LLDP TLVs discarded for any reason by the LLDP agent on the
corresponding port.
Errors - Specifies the number of invalid LLDP frames received by the LLDP agent on the
corresponding port, while the LLDP agent is enabled.
Ageouts - Specifies the number of age-outs that occurred on a given port. An age-out is the number
of times the complete set of information advertised by a particular MAC Service Access Point
(MSAP) has been deleted from tables associated with the remote entries because information
timeliness interval had expired.
TLV Discards - Specifies the number of LLDP TLVs discarded for any reason by the LLDP agent on
the corresponding port.
