LB9 User’s Guide 1076/1523

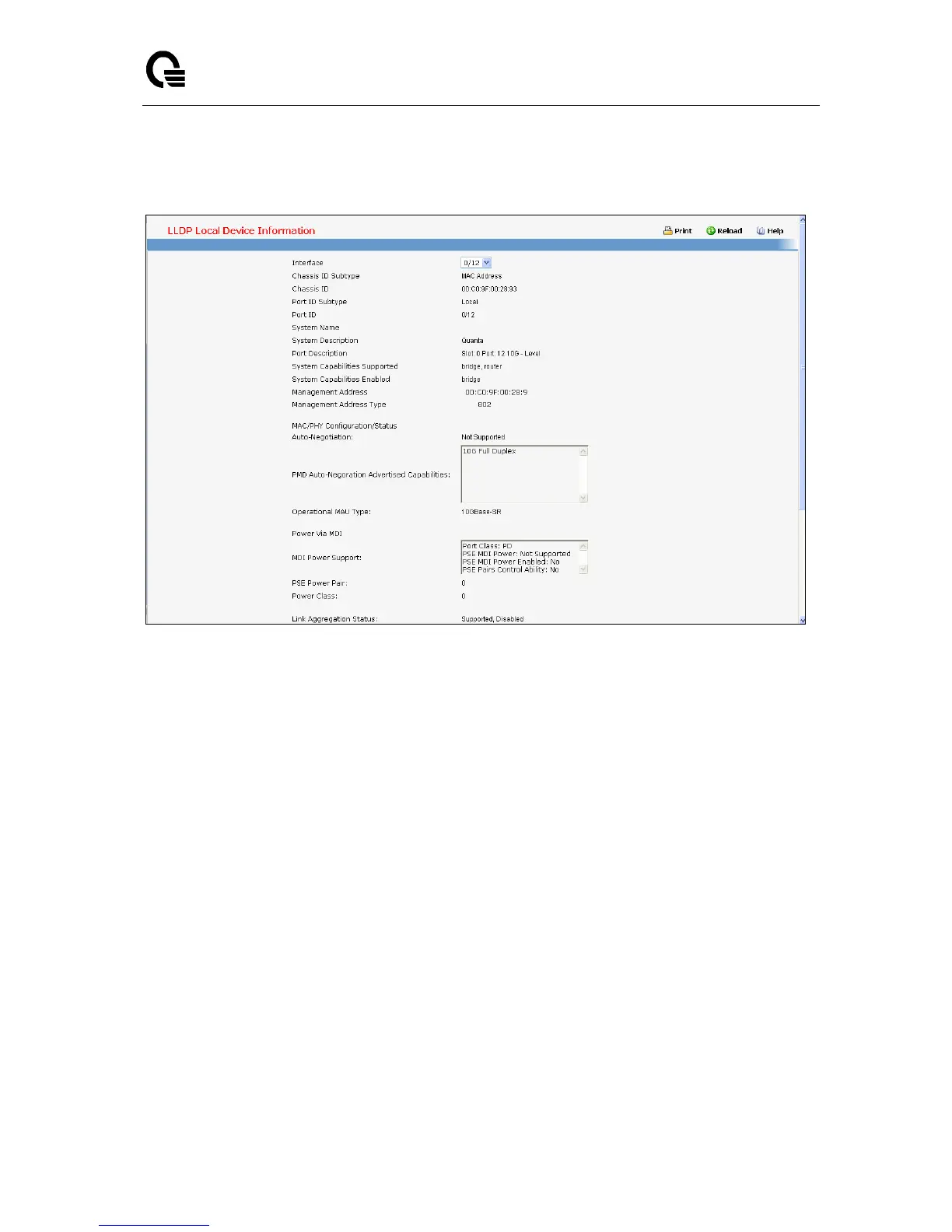

11.2.12.5 Viewing LLDP Local Device Information Page
Selection Criteria
Interface - Specifies the list of all the ports on which LLDP - 802.1AB frames can be transmitted.
Non-Configurable Data
Chassis ID Subtype - Specifies the string that describes the source of the chassis identifier.
Chassis ID - Specifies the string value used to identify the chassis component associated with the
local system.
Port ID Subtype - Specifies the string describes the source of the port identifier.
Port ID - Specifies the string that describes the source of the port identifier.
System Name - Specifies the system name of the local system.
System Description - Specifies the description of the selected port associated with the local
system.
Port Description - Specifies the description of the selected port associated with the local system.
System Capabilities Supported - Specifies the system capabilities of the local system.
System Capabilities Enabled - Specifies the system capabilities of the local system which are
supported and enabled.
Management Address - Specifies the advertised management address of the local system.
Management Address Type - Specifies the type of the management address.
MAC/PHY Configuration/Status
