LB9 User’s Guide 1083/1523

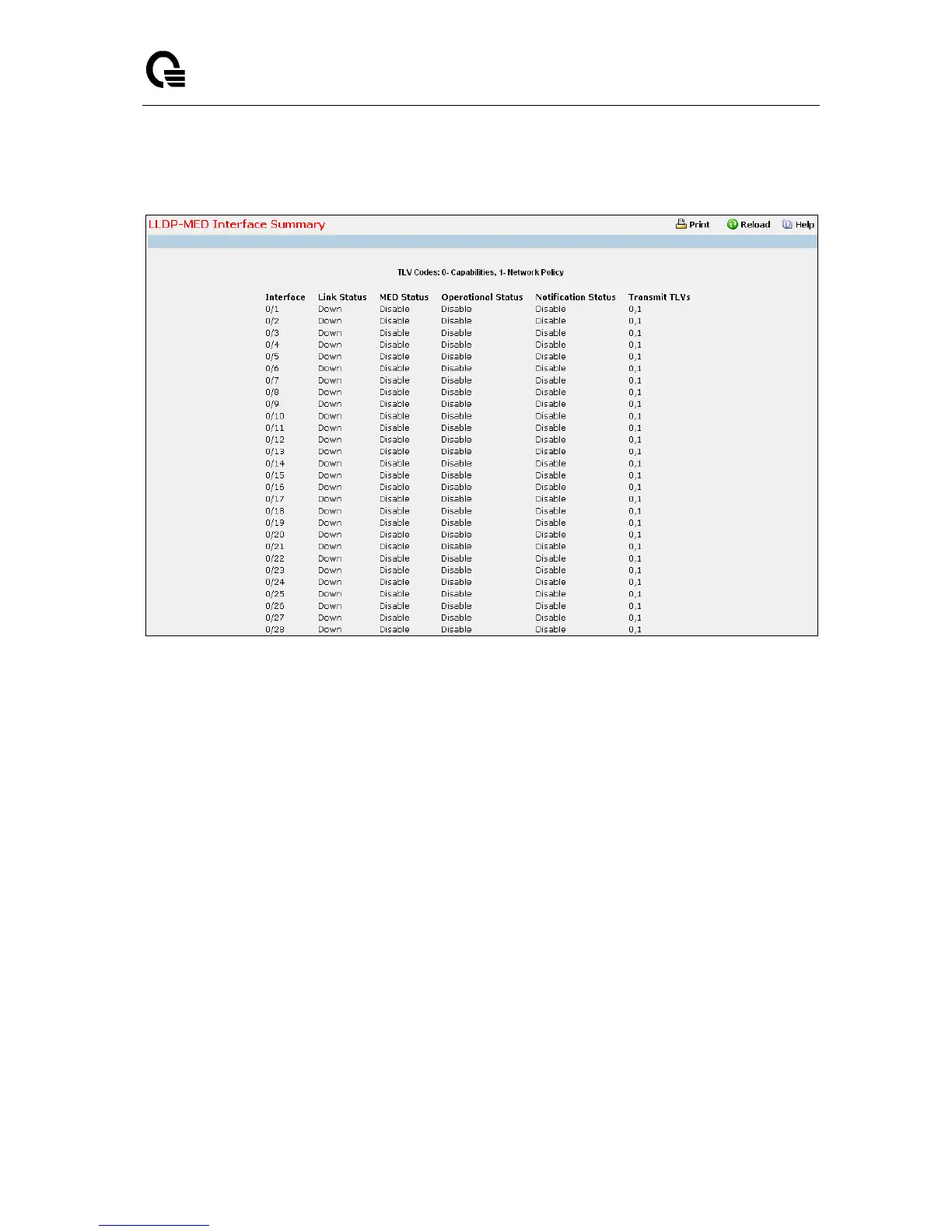

11.2.13.3 Configuring LLDP-MED Interface Summary Page
Non-Configurable Data
Interface - Specifies all the ports on which LLDP-MED can be configured.
Link Status - Specifies the link status of the ports whether it is Up/Down.
MED Status - Specifies the LLDP-MED mode is enabled or disabled on this interface.
Operational Status - Specifies the LLDP-MED TLVs are transmitted or not on this interface.
Notification Status - Specifies the LLDP-MED topology notification mode of the interface.
Transmit TLV(s) - Specifies the LLDP-MED transmit TLV(s) that are included.
Command Buttons
Refresh - Updates the information on the page.
