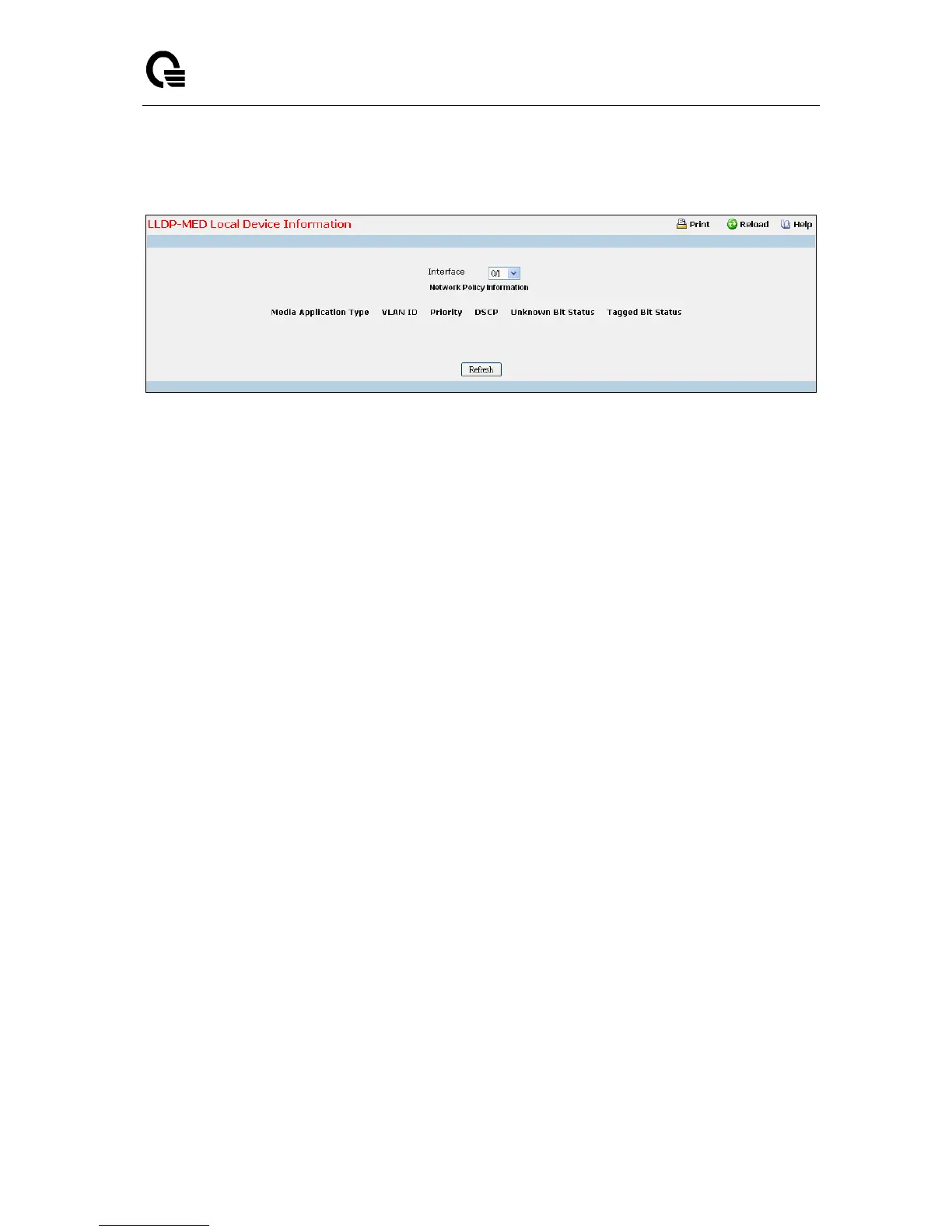

11.2.13.4 Configuring LLDP-MED Local Device Information Page
Selection Criteria
Interface - Specifies the list of all the ports on which LLDP-MED frames can be transmitted.
Non-Configurable Data
Network Policy Information - Specifies if network policy TLV is present in the LLDP frames.
Media Application Type - Specifies the application type. Types of application types are
unknown, voicesignaling, guestvoice, guestvoicesignalling, softphonevoice, videoconferencing,
streammingvideo, vidoesignalling. Each application type that is received has the VLAN id,
priority, DSCP, tagged bit status and unknown bit status. A port may receive one or many such
application types. If a network policy TLV has been transmitted only then would this information
be displayed.
VLAN ID - Specifies the VLAN id associated with a particular policy type.
Priority - Specifies the priority associated with a particular policy type.
DSCP - Specifies the DSCP associated with a particular policy type.
Unknown Bit Status - Specifies the unknown bit associated with a particular policy type.
Tagged Bit Status - Specifies the tagged bit associated with a particular policy type.
Inventory - Specifies if inventory TLV is present in LLDP frames.
Hardware Revisions - Specifies hardware version.
Firmware Revisions - Specifies Firmware version.
Software Revisions - Specifies Software version.
Serial Number - Specifies serial number.
Manufacturer Name - Specifies manufacturers name.
Model Name - Specifies model name.
Asset ID - Specifies asset id.
Location Information - Specifies if location TLV is present in LLDP frames.
Sub Type - Specifies type of location information.
Location Information - Specifies the location information as a string for given type of location id
Extended PoE - Specifies if local device is a PoE device.
Device Type - Specifies power device type.
