UANTA COMPUTER INC.
Layer 2/3/4 Managed Switch
_____________________________________________________________________________
LB9 User’s Guide 1130/1523

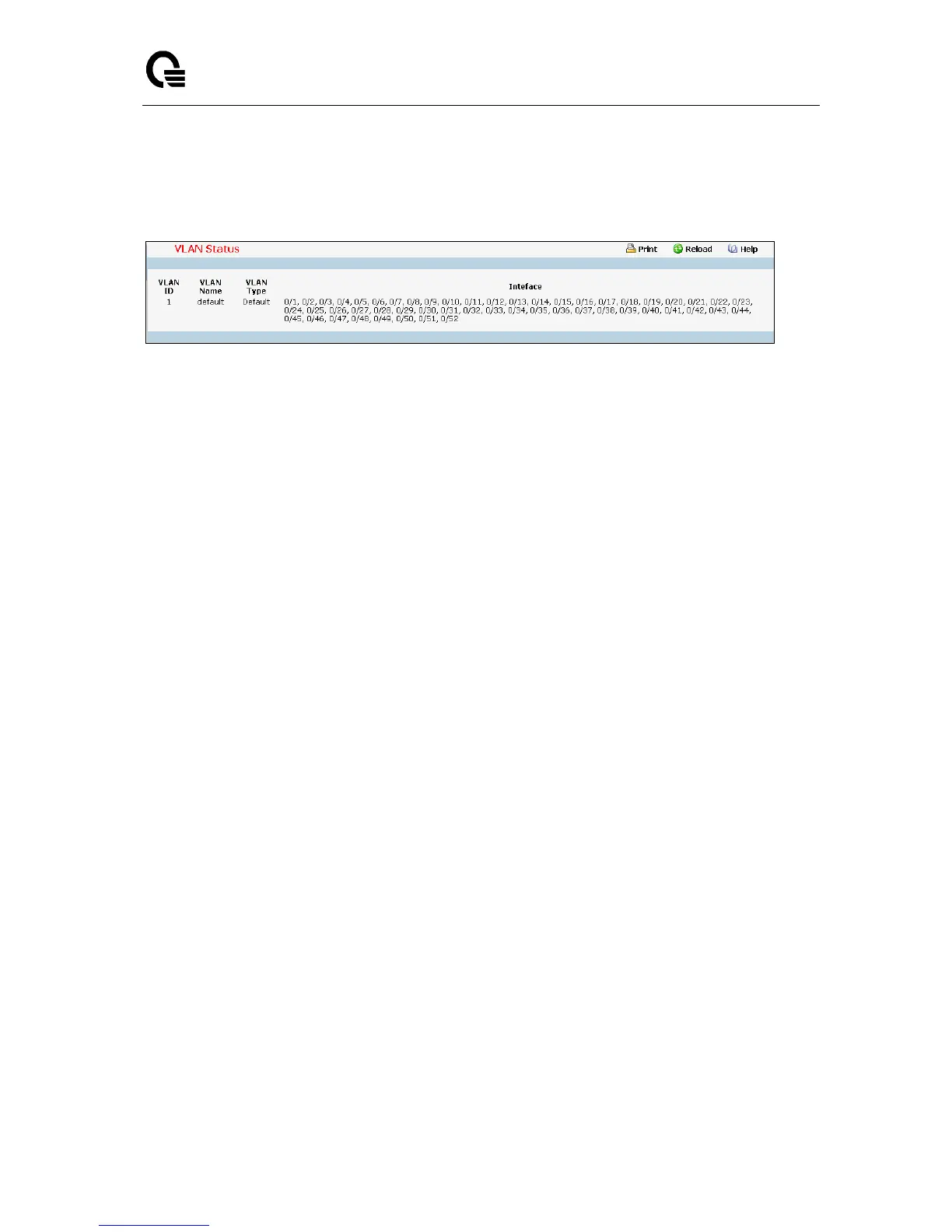

11.3.6.2 VLAN Status
This page displays the status of all currently configured VLANs.
Non-Configurable Data
VLAN ID - The VLAN Identifier (VID) of the VLAN. The range of the VLAN ID is (1 to 4093).
VLAN Name - The name of the VLAN. VLAN ID 1 is always named `Default`.
VLAN Type - The VLAN type:
 Default ( VLAN ID = 1) -- always present
 Static -- a VLAN you have configured
 Dynamic -- a VLAN created by GVRP registration that you have not converted to static,
and that GVRP may therefore remove
Interface - Indicates which port is associated with the fields on this line.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
