LB9 User’s Guide 1164/1523

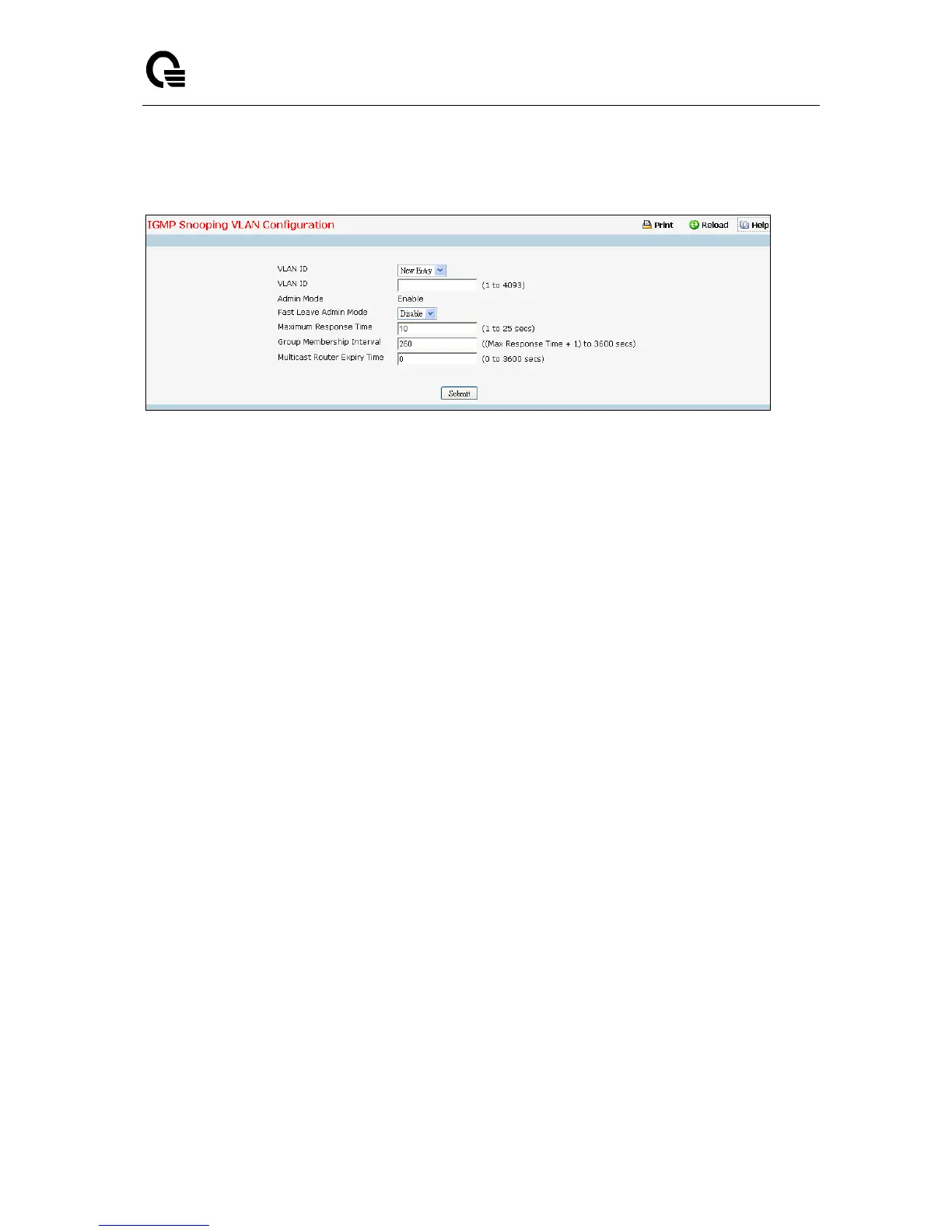

11.3.18.3 Configuring IGMP Snooping VLAN Page
Selection Criteria
VLAN ID - Specifies list of VLAN IDs for which IGMP Snooping is enabled.
Configurable Data
VLAN ID - Appears when "New Entry" is selected in VLAN ID combo box. Specifies VLAN ID for
which pre-configurable Snooping parameters are to be set.
Fast Leave Admin Mode - Enable or disable the IGMP Snooping Fast Leave Mode for the specified
VLAN ID.
Group Membership Interval - Sets the value for group membership interval of IGMP Snooping for
the specified VLAN ID. Valid range is (Maximum Response Time + 1) to 3600.
Maximum Response Time - Sets the value for maximum response time of IGMP Snooping for the
specified VLAN ID. Valid range is 1 to 25. Its value should be less than group membership interval
value.
Multicast Router Expiry Time - Sets the value for multicast router expiry time of IGMP Snooping for
the specified VLAN ID. Valid range is 0 to 3600.
Non-Configurable Data
Admin Mode - Enable or disable the IGMP Snooping for the specified VLAN ID.
Command Buttons
Submit - Update the switch with the values you entered.
Disable - Update the switch with the default values.
