LB9 User’s Guide 1165/1523

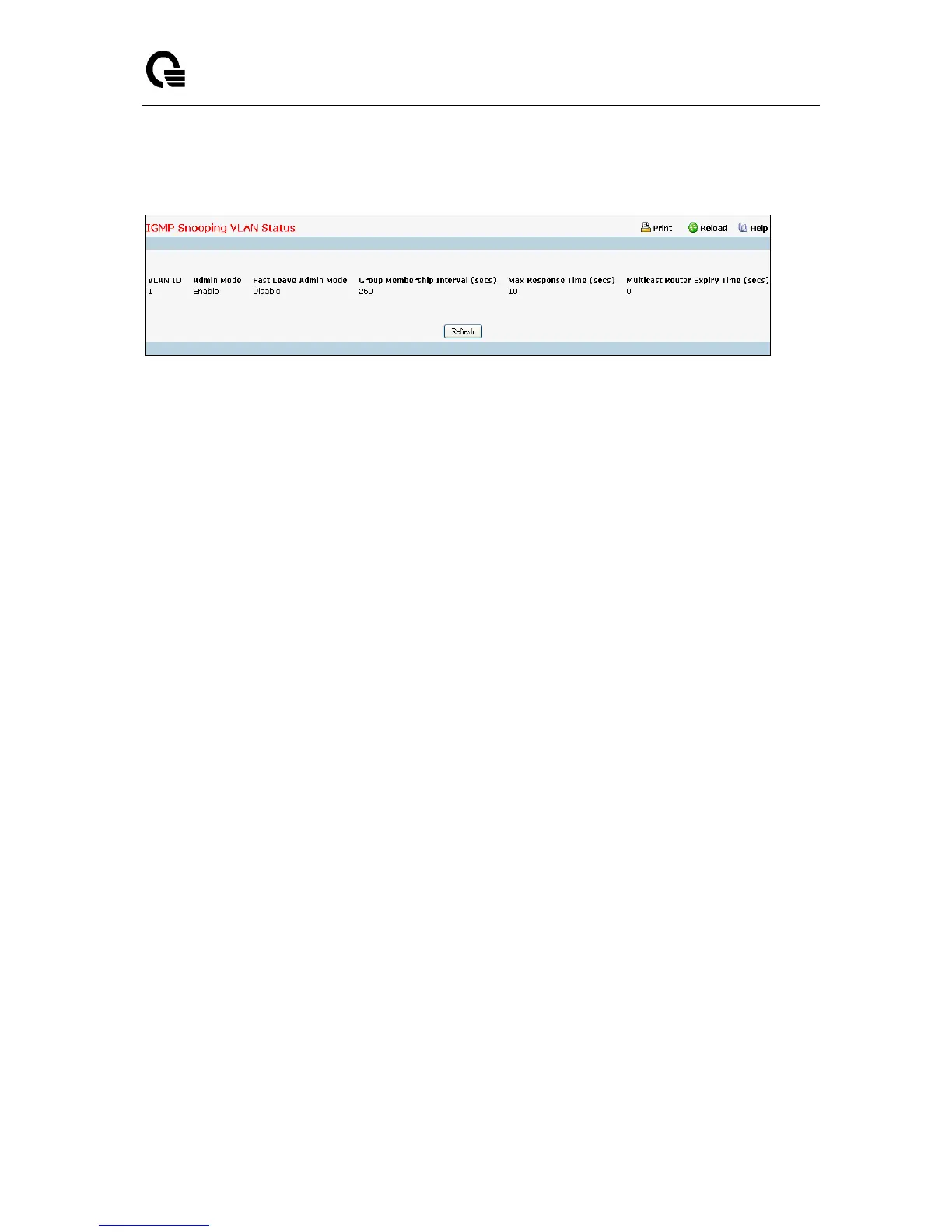

11.3.18.4 Viewing IGMP Snooping VLAN Status Page
Non-Configurable Data
VLAN ID - All VLAN Ids for which the IGMP Snooping mode is Enable.
Admin Mode - IGMP Snooping Mode for VLAN ID.
Fast Leave Admin Mode - Fast Leave Mode for VLAN ID.
Group Membership Interval - Group Membership Interval of IGMP Snooping for the specified
VLAN ID. Valid range is 2 to 3600.
Maximum Response Time - Maximum Response Time of IGMP Snooping for the specified VLAN
ID. Valid range is 1 to 25.Its value should be greater than group membership interval value.
Multicast Router Expiry Time - Multicast Router Expiry Time of IGMP Snooping for the specified
VLAN ID. Valid range is 0 to 3600.
Configurable Data
Refresh - Refresh the database and display it again starting with the first entry in the table.
