LB9 User’s Guide 1177/1523

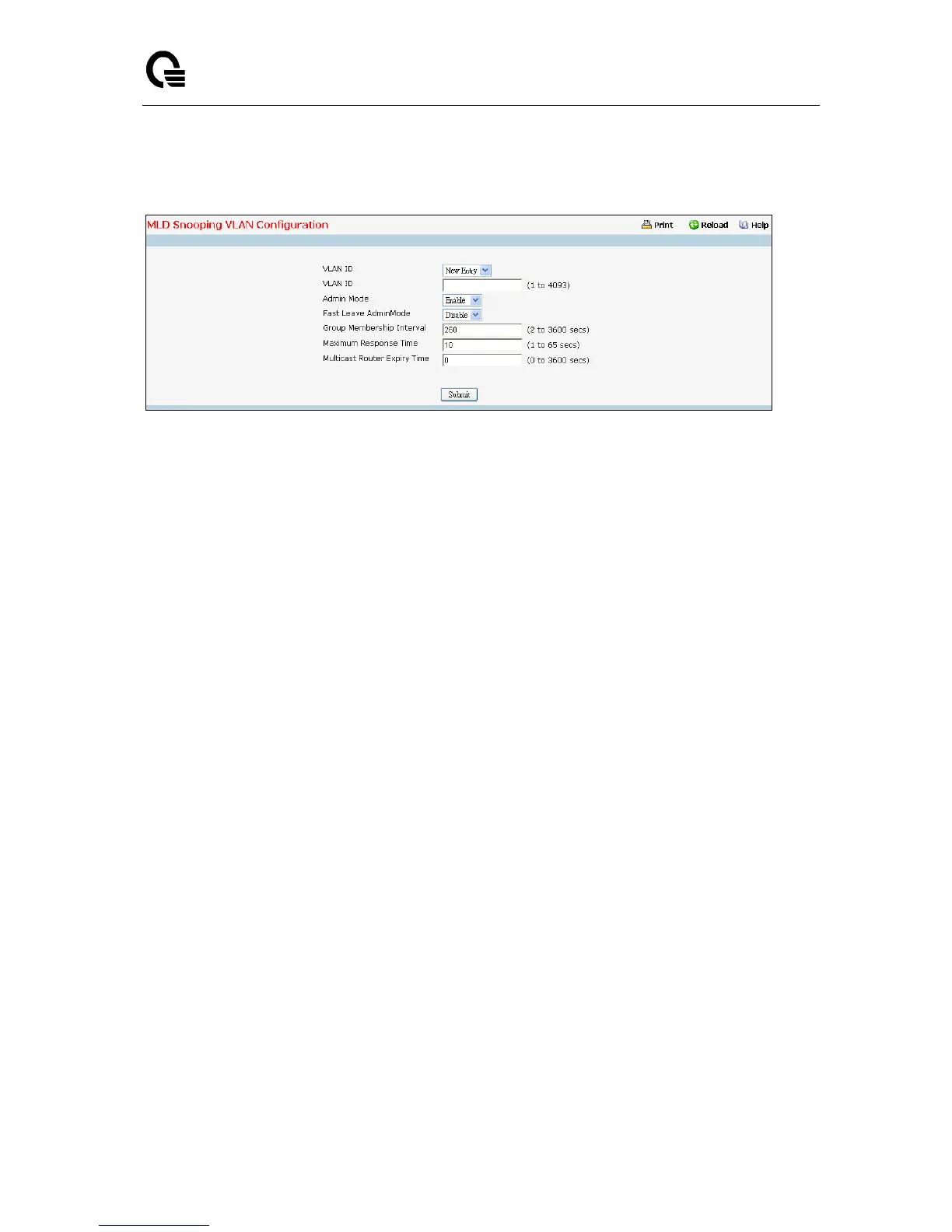

11.3.20.3 Configuring MLD Snooping VLAN Configuration Page
Selection Criteria
VLAN ID - Specifies list of VLAN IDs for which MLD Snooping is enabled.
Configurable Data
VLAN ID - Appears when "New Entry" is selected in VLAN ID combo box. Specifies VLAN ID for
which pre-configurable Snooping parameters are to be set.
Admin Mode - Enable MLD Snooping for the specified VLAN ID.
Fast Leave Admin Mode - Enable or disable the MLD Snooping Fast Leave Mode for the specified
VLAN ID.
Group Membership Interval - Sets the value for group membership interval of MLD Snooping for
the specified VLAN ID. Valid range is (Maximum Response Time + 1) to 3600.
Maximum Response Time - Sets the value for maximum response time of MLD Snooping for the
specified VLAN ID. Valid range is 1 to (Group Membership Interval - 1).Its value should be less than
group membership interval value.
Multicast Router Expiry Time - Sets the value for multicast router expiry time of MLD Snooping for
the specified VLAN ID. Valid range is 0 to 3600.
Command Buttons
Submit - Update the switch with the values you entered.
Delete - Update the switch with the default values.
