LB9 User’s Guide 1178/1523

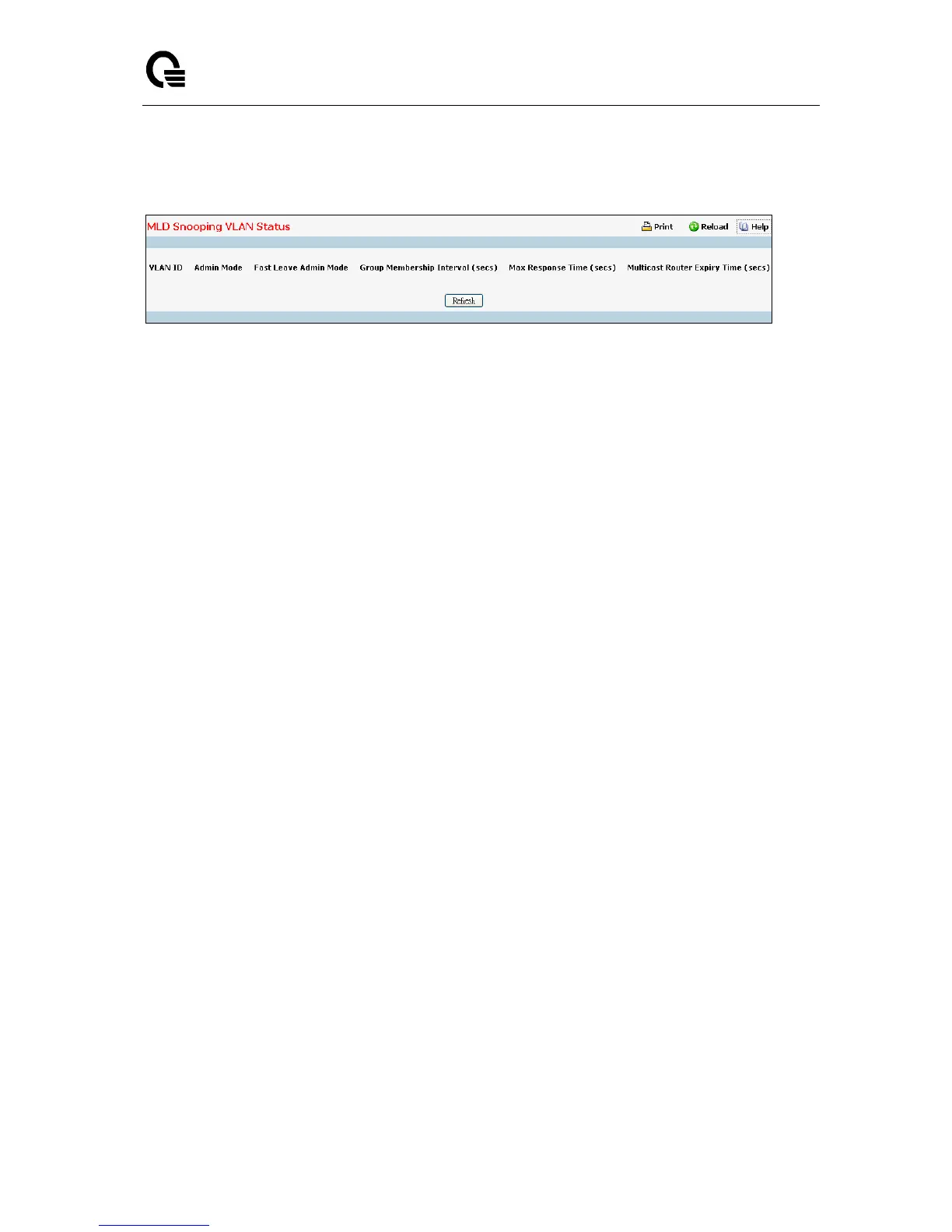

11.3.20.4 Configuring MLD Snooping VLAN Status Page
Non-Configurable Data
VLAN ID - All VLAN Ids for which the MLD Snooping mode is Enabled.
Admin Mode - MLD Snooping Mode for VLAN ID.
Fast Leave Admin Mode - Fast Leave Mode for VLAN ID.
Group Membership Interval - Group Membership Interval of MLD Snooping for the specified VLAN
ID. Valid range is 2 to 3600.
Maximum Response Time - Maximum Response Time of MLD Snooping for the specified VLAN ID.
Valid range is 1 to 65. Its value should be greater than group membership interval value.
Multicast Router Expiry Time - Multicast Router Expiry Time of MLD Snooping for the specified
VLAN ID. Valid range is 0 to 3600.
Command Buttons
Refresh - Refresh the database and display it again starting with the first entry in the table.
