_____________________________________________________________________________
LB9 User’s Guide 1179/1523

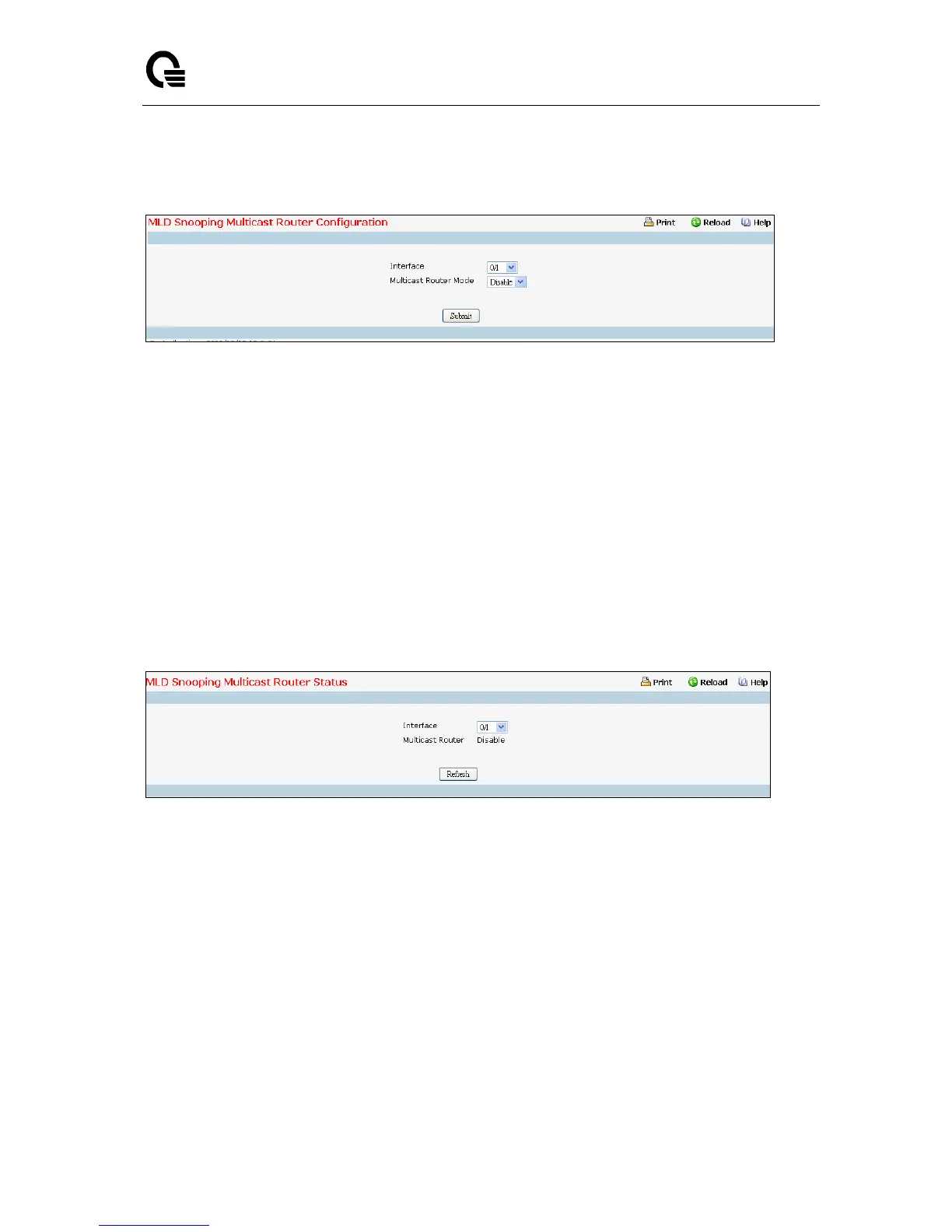

11.3.20.5 Configuring MLD Snooping Multicast Router Configuration Page
Selection Criteria
Interface - The select box lists all Slot/Ports. Select the interface for which you want Multicast Router
to be enabled.
Configurable Data
Multicast Router - Enable or disable Multicast Router on the selected Slot/Port.
Command Buttons
Submit - Update the switch with the values you entered.
11.3.20.6 Configuring MLD Snooping Multicast Router Status Page
Selection Criteria
Interface - The single select box lists all physical and LAG interfaces. Select the interface for which
you want to display the status.
Non-Configurable Data
Multicast Router - Specifies for the selected interface whether multicast router is enable or
disabled.
Command Buttons
Refresh - Refresh the database and display it again starting with the first entry in the table.
