LB9 User’s Guide 1182/1523

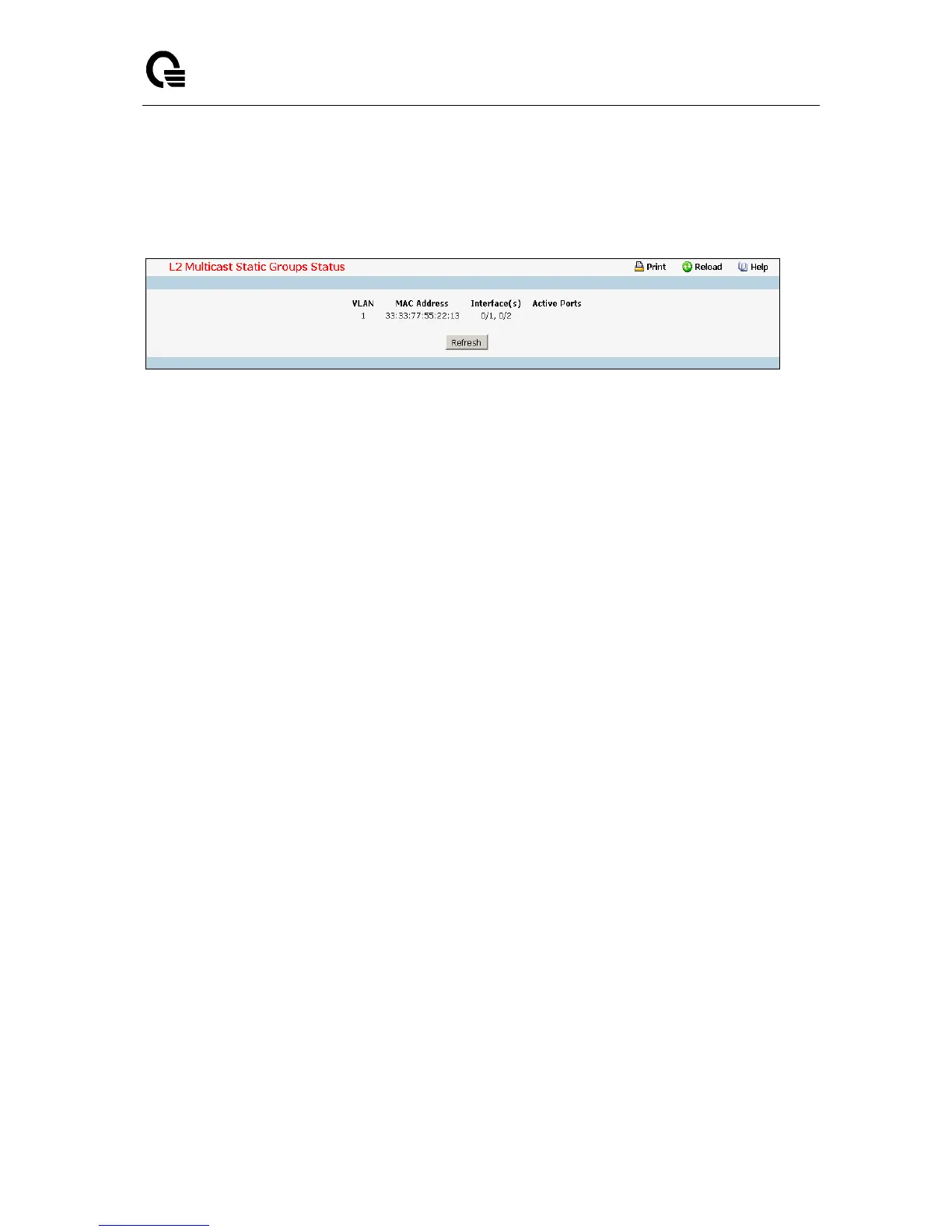

11.3.20.10 Viewing L2 Multicast Group Status Page
Use this panel to display information about entries in the L2Mcast Static/Dynamic Groups. These entries
are used by the transparent bridging function to determine how to forward a received frame.
Non-Configurable Data
VLAN - L2Mcast Group's VLAN ID value.
MAC Address - A multicast MAC address for which the switch has forwarding information. The
format is a six-byte MAC address. For example: 33:33:00:00:11:11.
Interface(s) - the interface number belongs to this Multicast Group.
Active Ports - The active interface number belongs to this Multicast Group.
Command Buttons
Refresh - Refresh the database and display it again starting with the first entry in the table.
