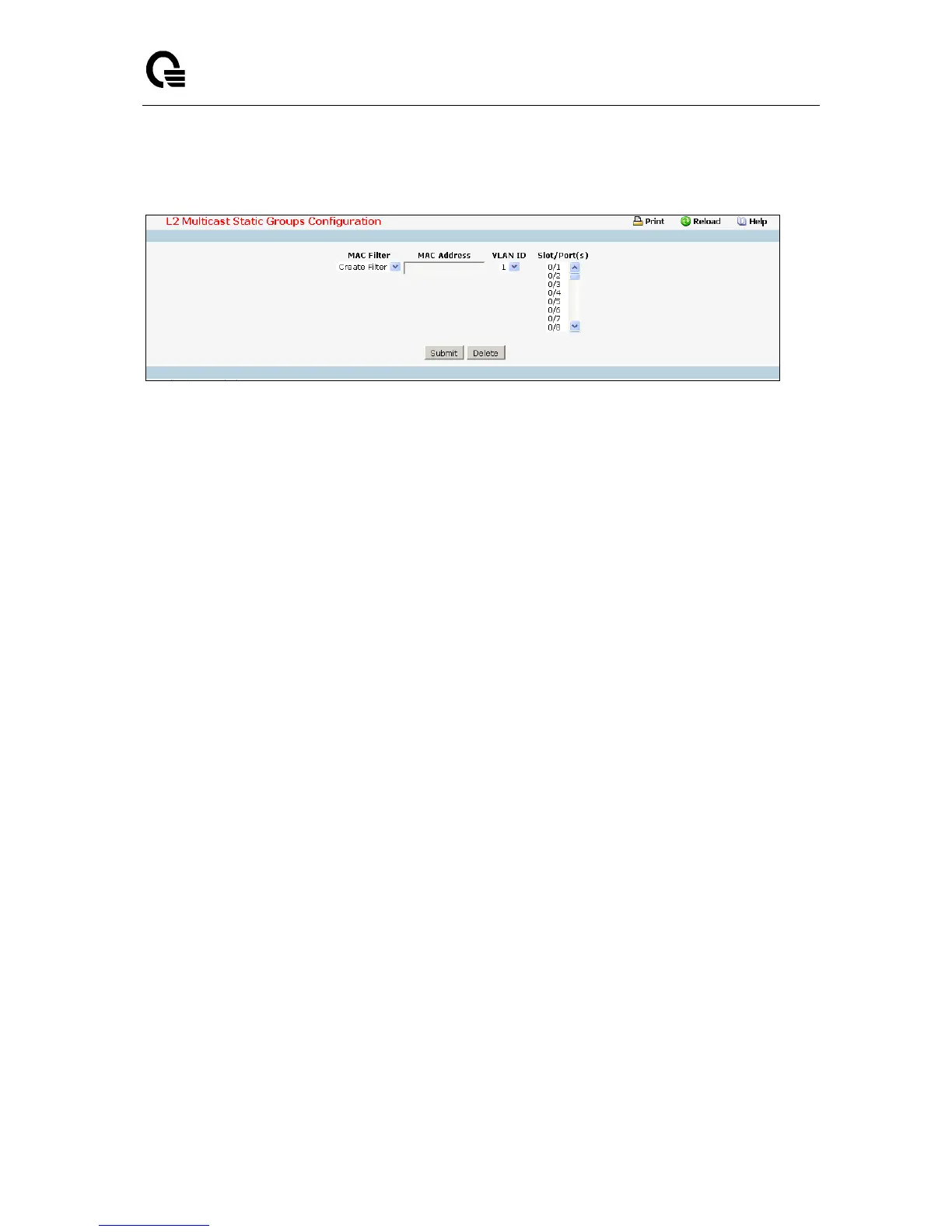

11.3.20.9 Configuring L2 Static Multicast Group Configuration Page
Selection Criteria
MAC Filter - This is the list of MAC address and VLAN ID pairings for all configured L2 Mcast
Groups. To change the port mask(s) for an existing L2Mcast Group, select the entry you want to
change. To add a new L2Mcast Group, select "Create Filter" from the top of the list.
VLAN ID - The VLAN ID used with the MAC address to fully identify packets you want L2Mcast
Group. You can only change this field when you have selected the "Create Filter" option.
Configurable Data
MAC Address - The MAC address of the L2Mcast Group in the format 01:00:5E:xx:xx:xx. You can
only change this field when you have selected the "Create Filter" option.
You cannot define L2Mcast Group for these MAC addresses:
00:00:00:00:00:00
33:33:00:00:00:01 to 33:33:00:00:00:FF
FF:FF:FF:FF:FF:FF
Solt/Port(s) - List the ports you want included into L2Mcast Group.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
Delete - Remove the currently selected L2Mcast Group.
