UANTA COMPUTER INC.
Layer 2/3/4 Managed Switch
_____________________________________________________________________________
LB9 User’s Guide 1210/1523

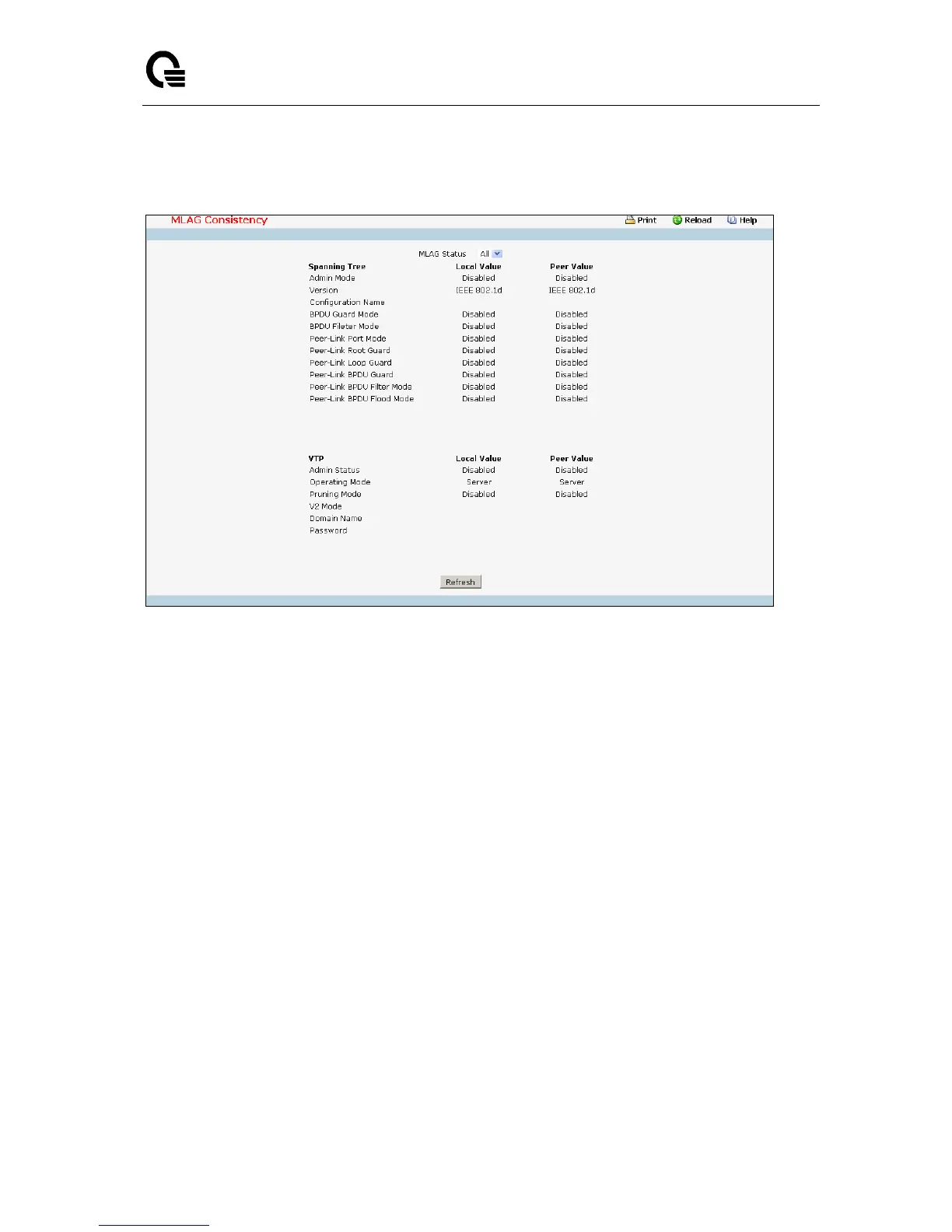

11.3.25.4 Viewing MLAG Consistency
Selection Criteria
MLAG Status - You can use this to select a MLAG ID to see its parameter.
Non-Configurable Data
Spanning Tree - Check the switch configuration about Spanning Tree for consistency parameter..
The parameter of global include—
Admin Mode: Indicates whether administrative mode is enabled or disabled of MLAG peer
devices.
Version: Represents the version of 802.1 currently supported (IEEE 802.1s, IEEE 802.1w, or
IEEE 802.1d) based upon the Force Protocol Version parameter of MLAG peer devices.
Configuration Name: Represents the configured name of MLAG peer devices.
BPDU Guard Mode: Indicates whether BPDU guard mode is enabled or disabled of MLAG peer
devices.
BPDU Filter Mode: Indicates whether BPDU filter mode is enabled or disabled of MLAG peer
devices.
Peer-Link Port Mode: Indicates whether port mode on peer link port is enabled or disabled of
MLAG peer devices.
Peer-Link Root Guard: Indicates whether root guard mode on peer link port is enabled or
disabled of MLAG peer devices.
Peer-Link Loop Guard: Indicates whether loop guard mode on peer link port is enabled or
disabled of MLAG peer devices.
