LB9 User’s Guide 1227/1523

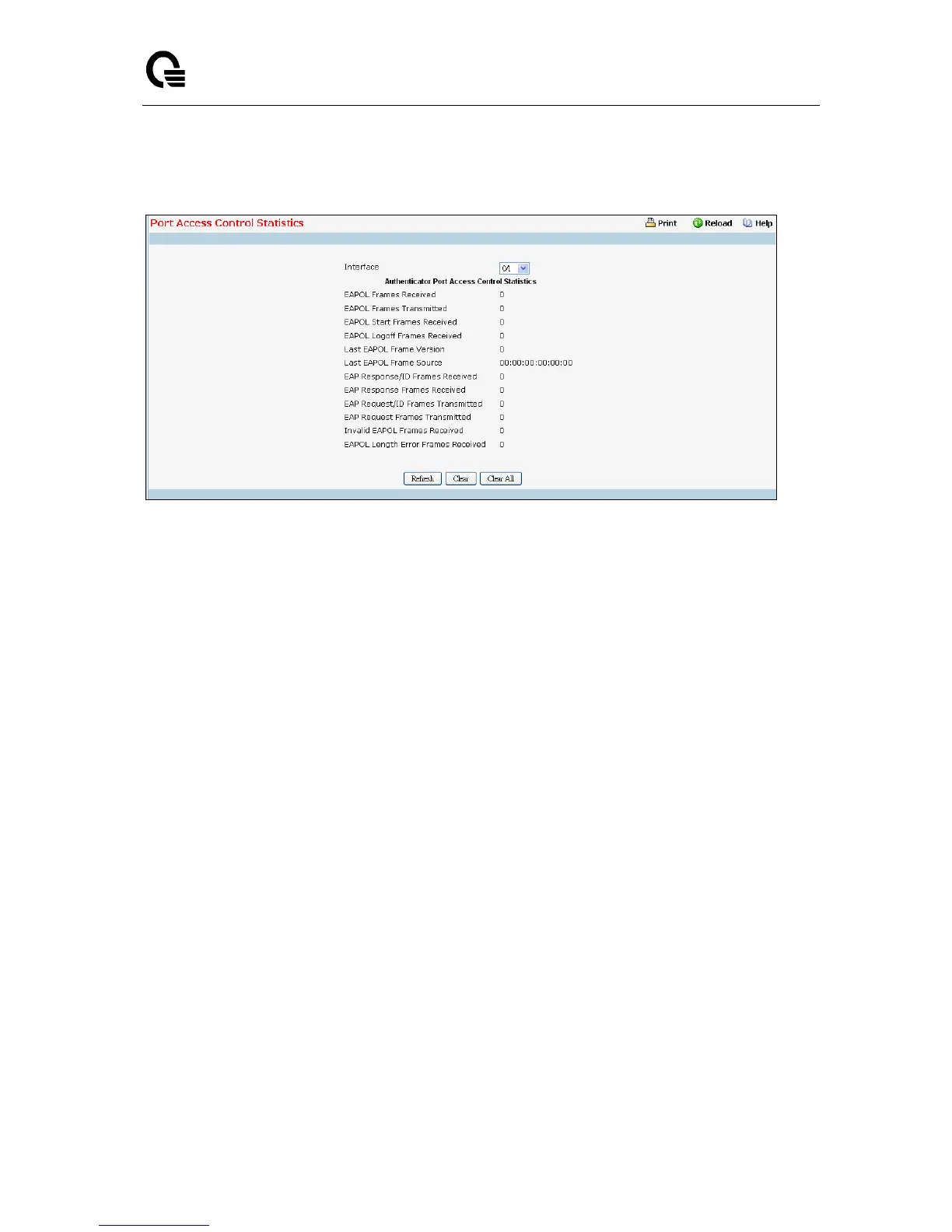

11.4.1.7 Viewing each Port Access Control Statistics Page
Selection Criteria
Interface - Selects the port to be displayed. When the selection is changed, a screen refresh will
occur causing all fields to be updated for the newly selected port. All physical interfaces are valid.
Non-Configurable Data
Authentication Port Access Control Statistcs: If the Port is an Authenticator.
EAPOL Frames Received - This displays the number of valid EAPOL frames of any type that have
been received by this authenticator.
EAPOL Frames Transmitted - This displays the number of EAPOL frames of any type that have
been transmitted by this authenticator.
EAPOL Start Frames Received - This displays the number of EAPOL start frames that have been
received by this authenticator.
EAPOL Logoff Frames Received - This displays the number of EAPOL logoff frames that have
been received by this authenticator.
Last EAPOL Frame Version - This displays the protocol version number carried in the most
recently received EAPOL frame.
Last EAPOL Frame Source - This displays the source MAC address carried in the most recently
received EAPOL frame.
EAP Response/Id Frames Received - This displays the number of EAP response/identity frames
that have been received by this authenticator.
EAP Response Frames Received - This displays the number of valid EAP response frames (other
than resp/id frames) that have been received by this authenticator.
EAP Request/Id Frames Transmitted - This displays the number of EAP request/identity frames
that have been transmitted by this authenticator.
EAP Request Frames Transmitted - This displays the number of EAP request frames (other than
request/identity frames) that have been transmitted by this authenticator.
