UANTA COMPUTER INC.
Layer 2/3/4 Managed Switch
_____________________________________________________________________________
LB9 User’s Guide 1252/1523

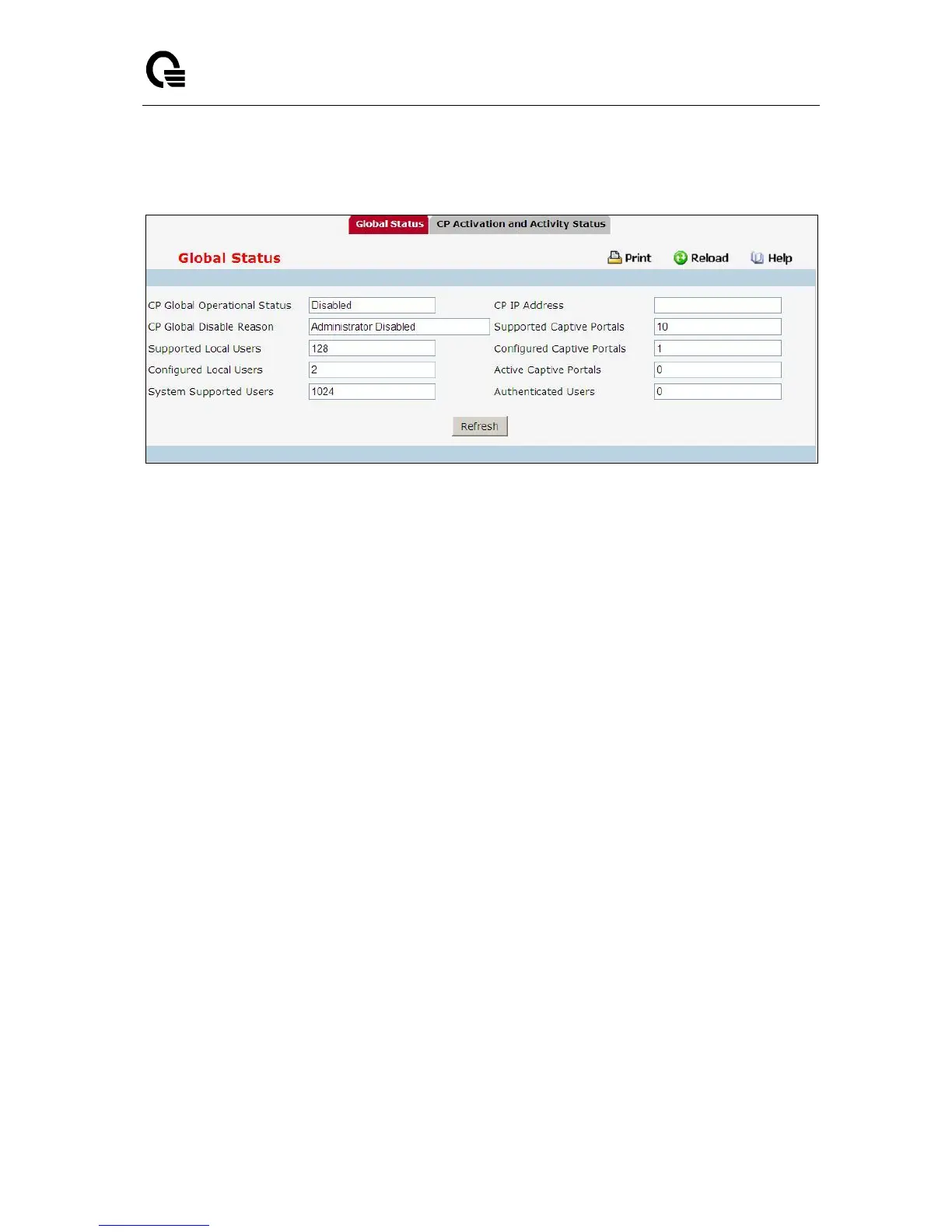

11.4.3.12 Captive Portal CP Status Page
Non-Configurable Data
CP Global Operational Status - Shows whether the CP feature is enabled.
CP Global Disable Reason - Indicates the reason for the CP to be disabled, which can be one of
the following:
‧ None
‧ Administratively Disabled
‧ No IPv4 Address
‧ Routing Enabled, but no IPv4 routing interface
Supported Local Users - Shows the number of entries that the Local User database supports.
Configured Local Users - Shows the number of local users configured on the switch.
System Supported Users - Shows the number of authenticated users that the system can support.
CP IP Address - Shows the captive portal IP address
Supported Captive Portals - Shows the number of supported captive portals in the system.
Configured Captive Portals - Shows the number of captive portals configured on the switch.
Active Captive Portals - Shows the number of captive portal instances that are operationally
enabled.
Authenticated Users - Shows the number of users currently authenticated to all captive portal
instances on this switch.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
