LB9 User’s Guide 1259/1523

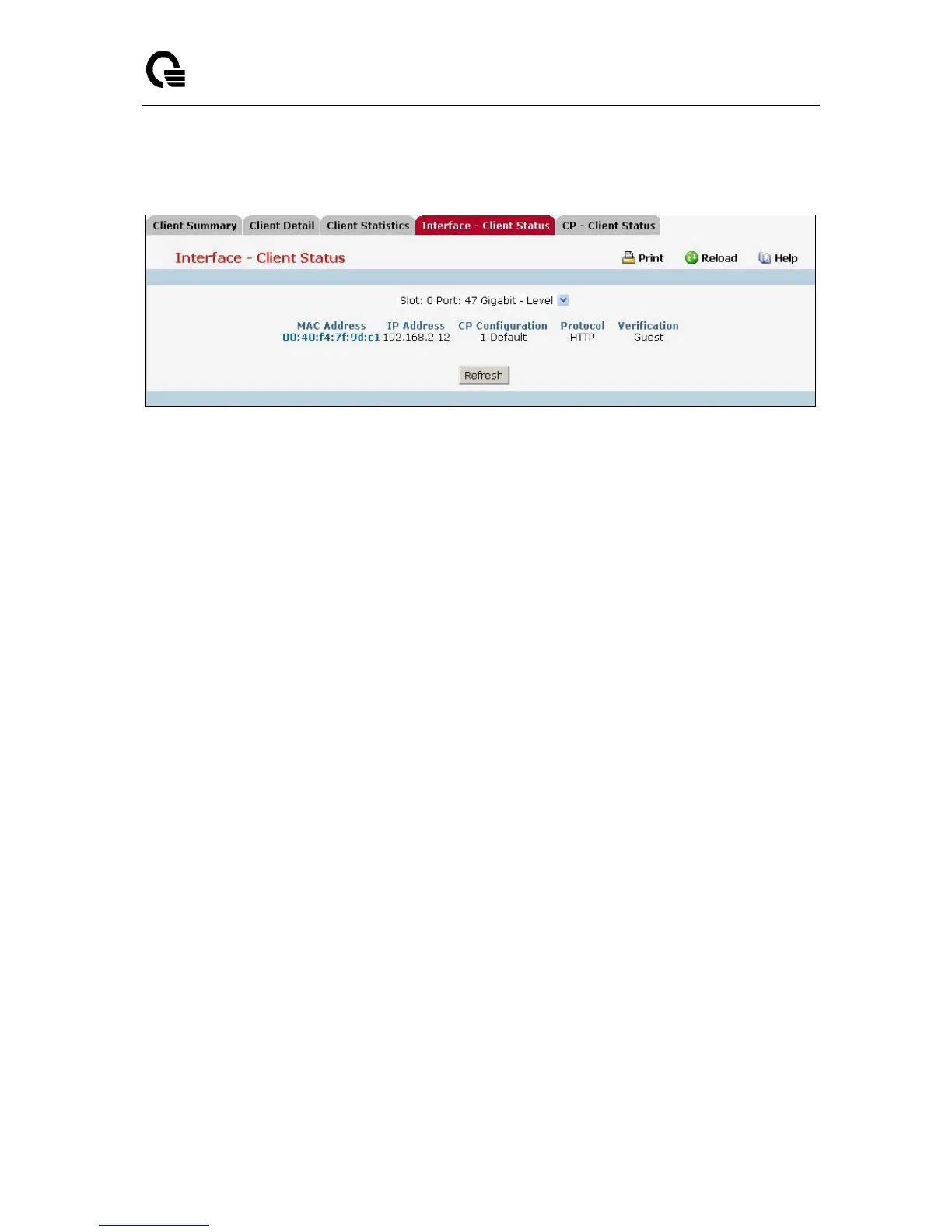

11.4.3.19 Captive Portal Interface - Client Status Page
Non-Configurable Data
MAC Address - Identifies the MAC address of the wireless client. If the MAC address is marked with
an asterisk (*), the authenticated client is authenticated by a peer switch. In order words, the cluster
controller was not the authenticator.
IP Address - Identifies the IP address of the wireless client.
CP Configuration - Identifies the captive portal the client used to access the network.
Protocol - Shows the current connection protocol, which is either HTTP or HTTPS.
Verification - Shows the current account type, which is Guest, Local, or RADIUS.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
