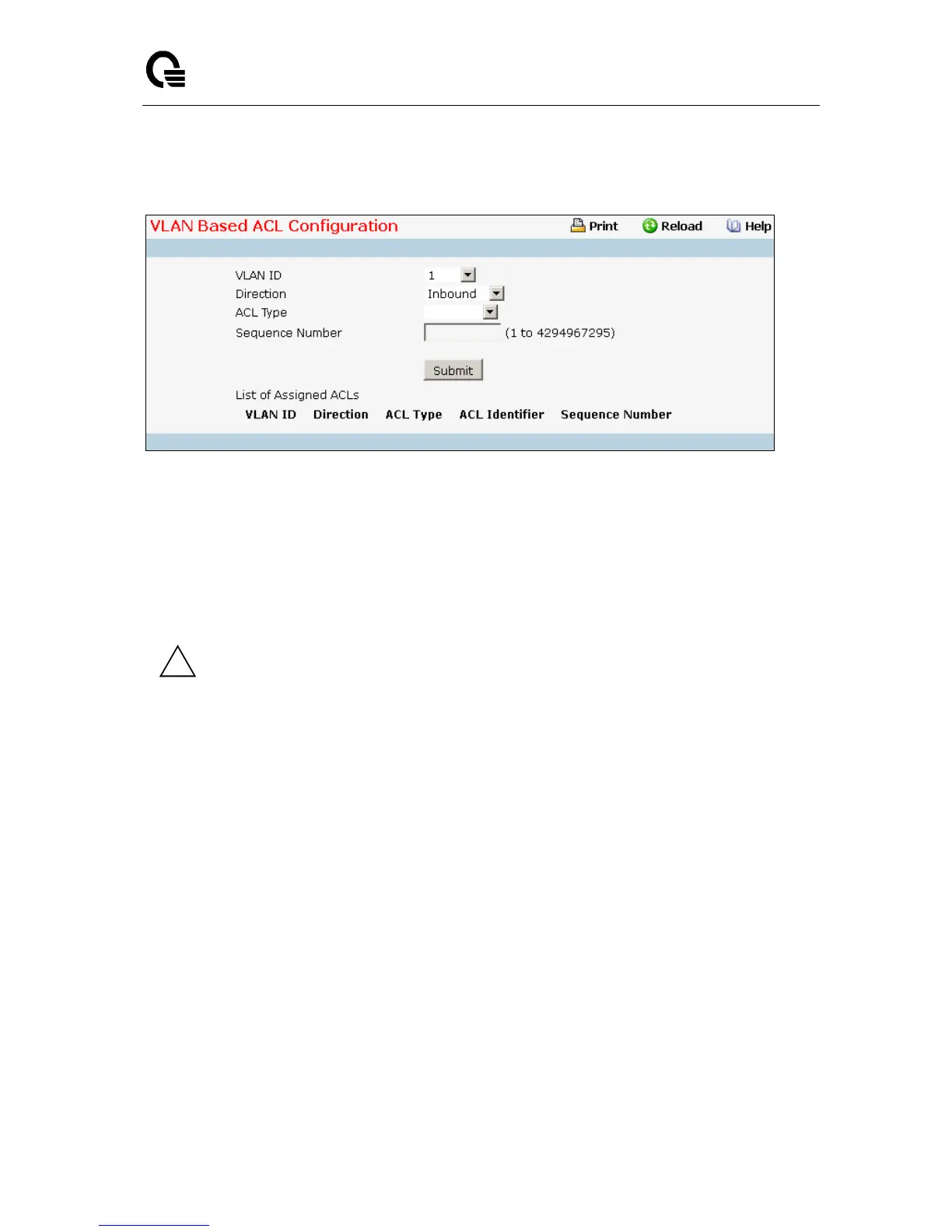

11.4.7.14 Configuring Access Control List VLAN ACL Configuration Page
Configurable Data
VLAN ID - Specifies list of all configured VLAN Id(s) for ACL mapping.
Direction - Specifies the packet filtering direction for ACL. Valid Directions:
 Inbound
 Outbound
!
Outbound direction is depended on the used chipset.
ACL Type - Specifies the type of ACL. Valid ACL Types:
 IP ACL
 IPv6 ACL
 MAC ACL
IP ACL - Specifies list of all IP ACLs. This field is visible only if the user has selected "IP ACL" as
"ACL Type".
IPv6 ACL - Specifies list of all IPv6 ACLs. This field is visible only if the user has selected "IPv6 ACL"
as "ACL Type".
MAC ACL - Specifies list of all MAC ACLs. This field is visible only if the user has selected "MAC
ACL" as "ACL Type".
Sequence Number - An optional sequence number may be specified to indicate the order of this
access list relative to other access lists already assigned to this VLAN and direction. A lower number
indicates higher precedence order. If a sequence number is already in use for this VLAN and
direction, the specified access list replaces the currently attached access list using that sequence
number. If the sequence number is not specified by the user, a sequence number that is one greater
than the highest sequence number currently in use for this VLAN and direction will be used. Valid
range is (1 to 4294967295).
Non-Configurable Data
Slot/Port - Displays selected interface
