LB9 User’s Guide 1308/1523

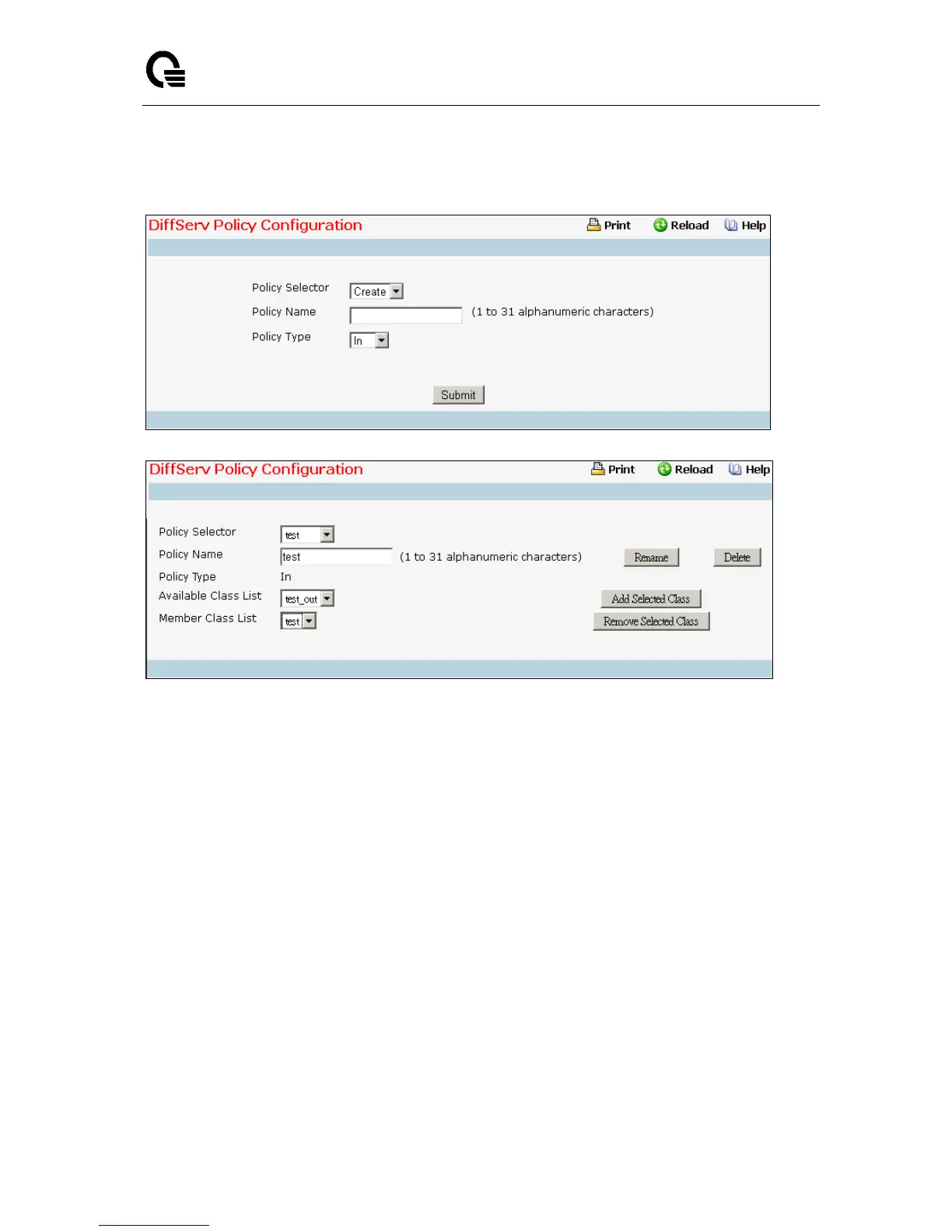

11.5.1.4 DiffServ Policy Configuration Page
Selection Criteria
Policy Selector - Along with an option to create a new policy, this lists all the existing DiffServ policy
names, from which one can be selected. The content of this screen varies based on the selection of
this field. If an existing policy is selected then the screen will display Member Classes for that
DiffServ policy. If 'create' is selected, another screen appears to facilitate creation of a new policy.
The default is 'create'.
Policy Type - In indicates the type is specific to inbound traffic direction. Out indicates the type is
specific to outbound traffic direction. Only when a new policy is created, this field is a selector field.
After policy creation this becomes a non-configurable field displaying the configured policy type.
Available Class List - This lists all existing DiffServ class names, from which one can be selected.
This field is a selector field only when a new policy class instance is to be created. After creation of
the policy class instance this becomes a non-configurable field.
Member Class List - This lists all existing DiffServ classes currently defined as members of the
specified Policy, from which one can be selected. This list is automatically updated as a new class is
added to or removed from the policy. This field is a selector field only when an existing policy class
instance is to be removed. After removal of the policy class instance this becomes a
non-configurable field.
Configurable Data
Policy Name - This is a case-sensitive alphanumeric string from 1 to 31 characters uniquely
identifying a policy.
